Verified fitment — 3 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (3)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 24.64 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 22.79 | listing | cfmoto.quadzillaparts.co.uk |

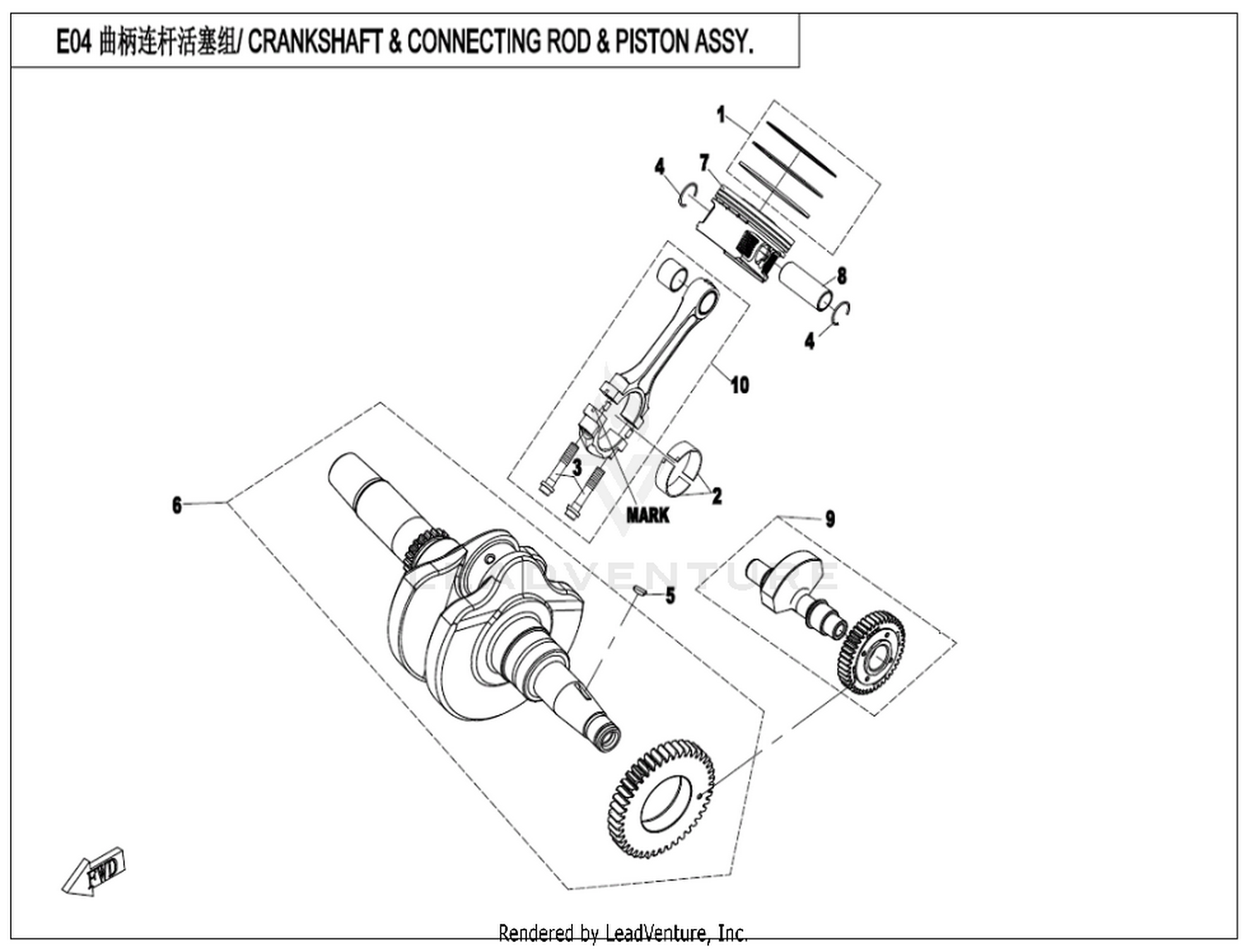

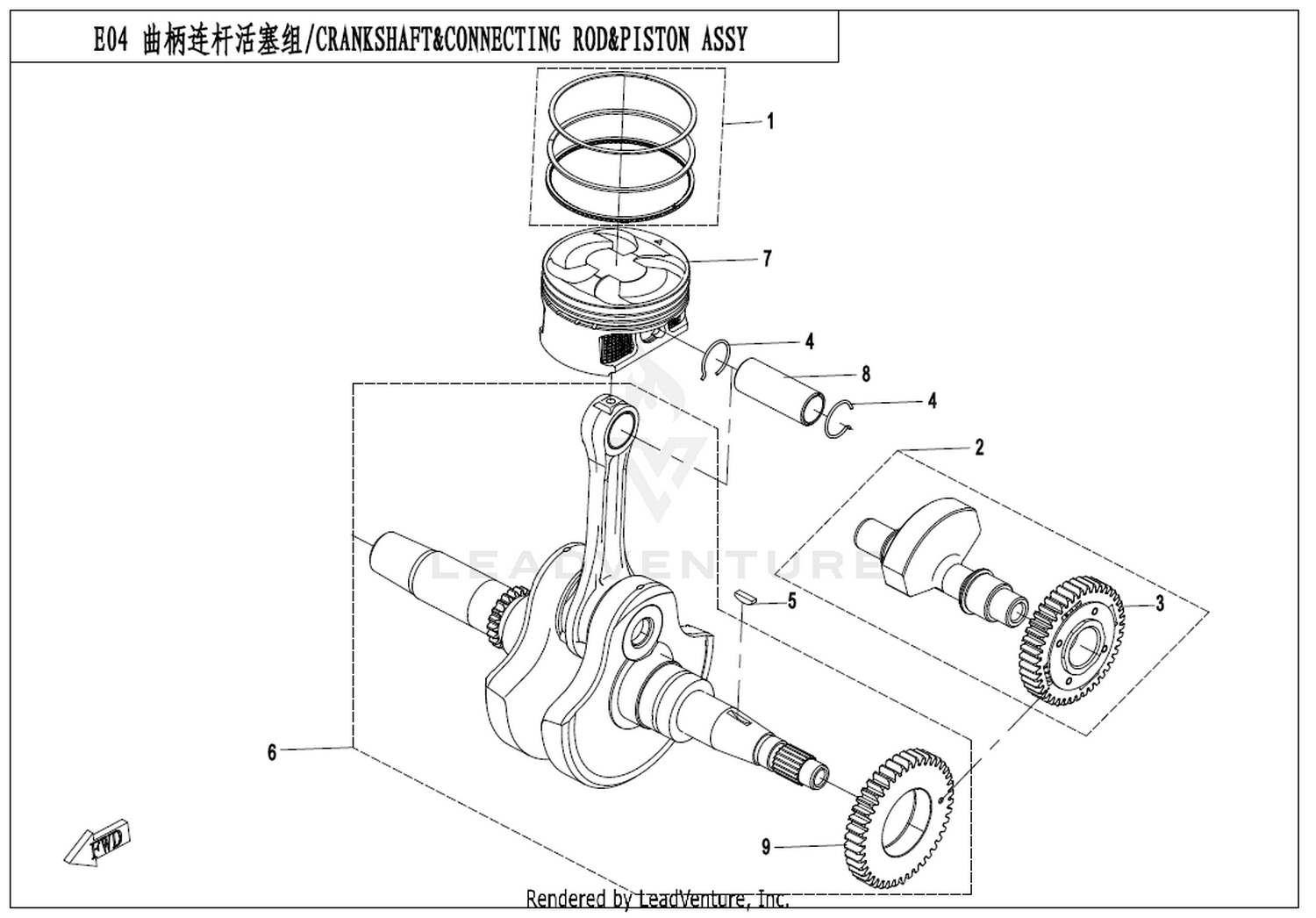

Location in exploded diagrams
Other parts on this diagram — Crankshaft & Connecting Rod & Piston Assy
- #06 0180-040007 — Woodruff Key
- #09 0700-041101-00020 — Driving Gear, Balance Shaft Group B
- #02 0GR0-160000-00020 — Balance Shaft Assy Group B
- #06 0GR0-041000-00020 — Crank Connecting Rod Sub Assy Mark B@Matched With Mark A Balancer Shaft Assy
- #09 0700-041101-00010 — Drive Gear, Balance Shaft Group A
- #02 0GR0-160000-00010 — Balance Shaft Assy Group A
- #06 0GR0-041000-00010 — Crank Connecting Rod Sub Assy Mark A@Matched With Mark B Balancer Shaft Assy
- #03 0700-161000-00020 — Gear, Balance Shaft Group B
- #07 0800-040001-20020 — Piston Mark 2
- #03 0700-161000-00010 — Gear, Balance Shaft Group A
- #07 0800-040001-20010 — Piston Mark 1
- #04 0800-040005 — Circlip, Piston Pin
- #01 0800-0400A0 — Piston Ring Assy Supplier 1
- #07 0800-040002 — Piston Pin
