0JYA-022012SEAT,THERMOSTAT — Genuine CF MOTO Part
CF MOTOoem
0JYA-022012 - SEAT,THERMOSTAT #10
Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
Australia (1)
Location in exploded diagrams

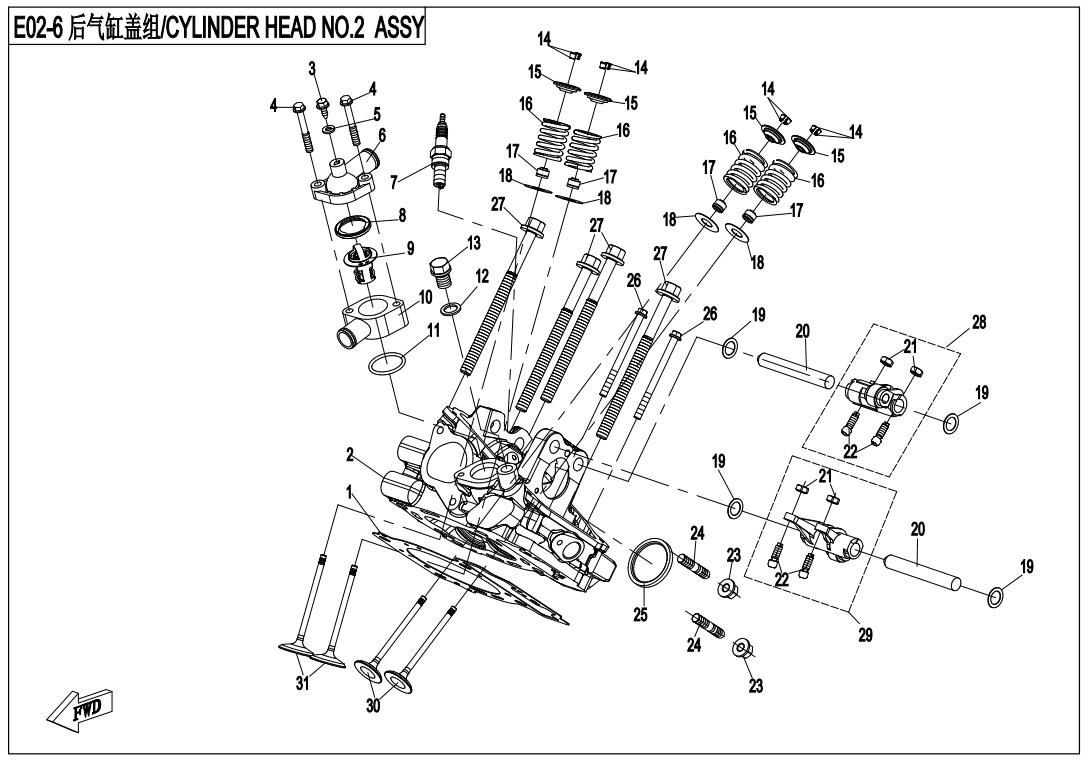

Other parts on this diagram — CYLINDER HEAD NO.2 ASSY
- #1 0800-022200-00002 — GASKET, CYLINDER HEAD Replacing: 0800-022200 - GASKET, CYLINDER HEAD
- #2 0JY0-022100-20000 — CYLINDER HEAD Replacing: 0JY0-022100 - CYLINDER HEAD
- #3 30132-480130010 — SELF-TAPPING SCREW
- #4 0180-013208-0010 — BOLT M6X45
- #5 0800-022011-00001 — WASHER 5.3X11X1.5 Replacing: 0800-022011 - WASHER 5.3X11X15
- #6 0800-022013-10000 — THERMOSTAT CAP Replacing: 0800-022013 - THERMOSTAT CAP
- #7 0800-022800 — SPARK PLUG DCPR8E (NGK)
- #8 0010-022802 — SEAL RING
- #9 0800-022700 — THERMOSTAT
- #11 30502-028000N — O-RING 28X265
- #12 0800-022014 — WASHER 12.2X18X1.5
- #13 0800-022015-00001 — SCREW PLUG M12X1.5 Replacing: 0800-022015 - SCREW PLUG M12X1.5
- #14 0800-022016 — LOCK CLIP, VALVE
- #15 0800-022007 — UPPER SEAT, VALVE
- #16 0800-022006-10001 — VALVE SPRING Replacing: 0800-022006 - SPRING, VALVE
- #17 0010-022500-10000 — SEAL RING, VALVE STEM Replacing: 0010-022500 - SEAL RING, VALVE STEM
- #18 0800-022008 — LOWER SEAT, VALVE
- #19 0800-022002 — WASHER 12.3X18.5X0.5
- #20 0800-022001 — ROCKER ARM SHAFT
- #21 0800-022506 — ADJUST NUT
- #22 0800-022510 — ADJUST SCREW
- #23 8010-020001 — NUT M8 Replacing: 0010-011700-0010 - FLANGE NUT M8
- #24 0180-022003-00001 — STUD M8X42 Replacing: 0180-022003-0010 - STUD M8
- #25 0800-022300 — BUSHING, EXHAUST PIPE
