Verified fitment — 34 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (34)
- ZFORCE 950 SPORT 2025
- CFORCE 850XC 2020
- UFORCE 1000 2023
- ZFORCE 1000 SPORT 2020
- UFORCE 1000 2025
- ZFORCE 1000 2020
- UFORCE 1000 2018
- ZFORCE 1000 SPORT R 2023
- ZFORCE 1000 SPORT R 2024
- CFORCE 1000 2018
- ZFORCE 1000 2017
- CFORCE 850XC 2018
- ZFORCE 1000 SPORT 2021
- CFORCE 850XC 2021
- UFORCE 1000 2024
- CFORCE 1000 2019
- UFORCE 1000 2022
- CFORCE 1000 2023
- ZFORCE 1000 2019
- CFORCE 850XC 2019
- ZFORCE 1000 SPORT 2022
- CFORCE 1000 2024
- ZFORCE 1000 2018
- CFORCE 850XC 2022
- UFORCE 1000 2019
- UFORCE 1000 2020
- CFORCE 850XC 2024
- UFORCE 1000 2021
- CFORCE 1000 2020
- CFORCE 850XC 2023
- CFORCE 850XC 2017
- CFORCE 1000 2021
- ZFORCE 950 SPORT 4 2024
- CFORCE 1000 2022
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 1.55 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 1.44 | listing | cfmoto.quadzillaparts.co.uk |
Location in exploded diagrams

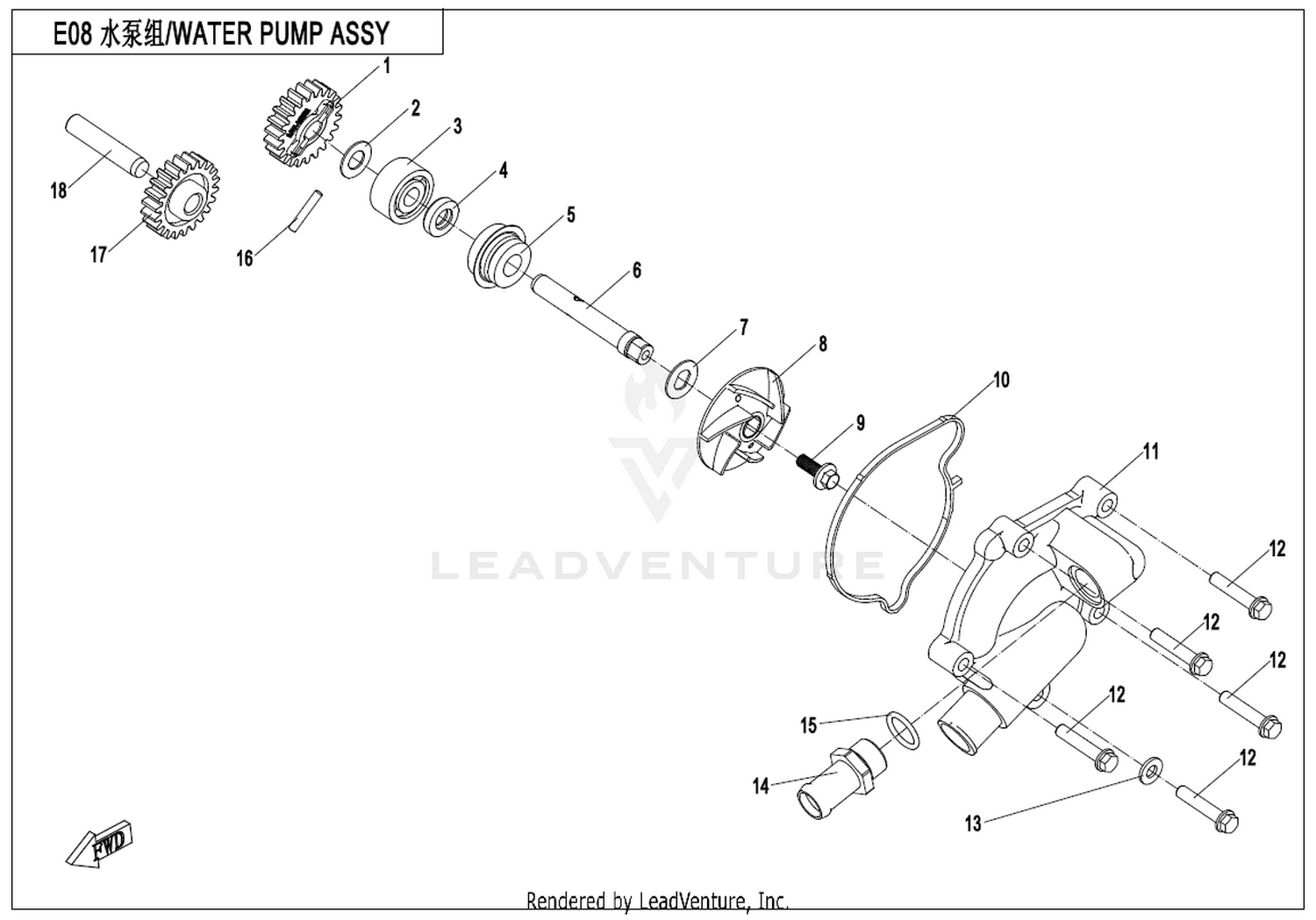

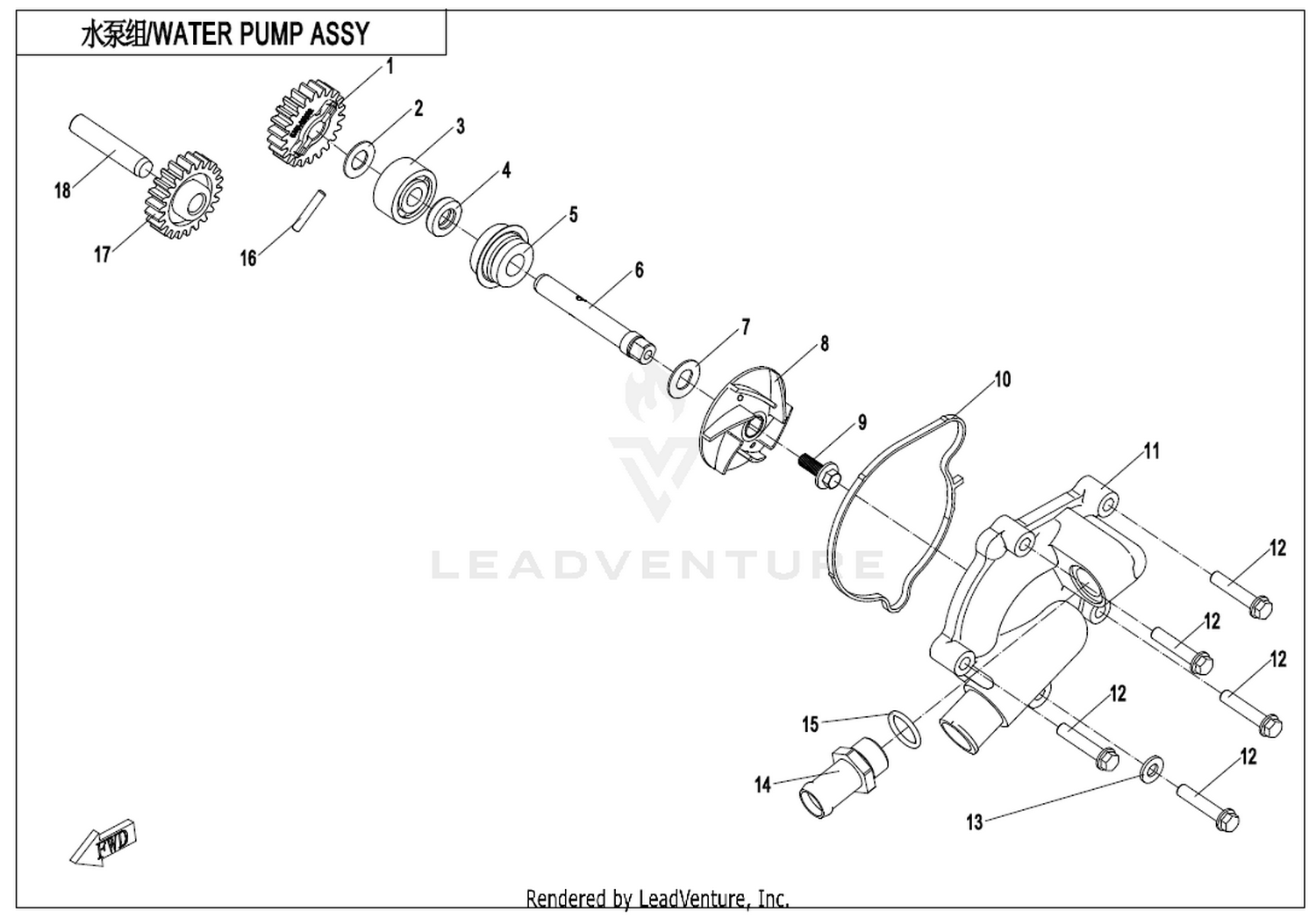

Other parts on this diagram — Water Pump Assy
- #05 0110-080005 — Oil Seal 10X20X5
- #11 0010-060009 — Washer 6 6
- #05 0JWA-081000 — Water Seal Assy
- #11 0JWA-080004-00002 — Seal Ring, Water Pump Cover
- #16 0JWA-082000 — Water Outlet Pipe Assy., Water Pump Cover
- #01 0JWA-080002 — Water Pump Gear
- #07 0JWA-080008 — Water Pump Shaft
- #12 0JWA-080006-10000 — Water Pump Cover
- #10 0010-021019-0010 — Bolt M6X12 Galvanized Trivalent Chromium
- #16 30406-00404 — Roller Needle
- #08 0JWA-080005 — Gasket,Water Seal
- #12 0JWA-080006-10001 — Water Pump Cover
- #18 0JWA-080001 — Idle Gear, Water Pump
- #08 0800-011005 — Washer 10 10
- #09 0JWA-080003 — Water Pump Impeller
- #18 0010-060012-0010 — Bolt M6X30 Galvanized Trivalent Chromium
- #15 0800-011202 — Breather Shaft
- #05 30408-01000 — Bearing 10
- #17 0JWA-080007-00001 — Bolt
- #15 01A0-013005 — O-Seal Ring 13X2
