0JWA-060002Bolt M10X1.25X30 M10X1.25X30 — Genuine CF MOTO Part
CF MOTOoem
Verified fitment — 3 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (3)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 2.19 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 2.03 | listing | cfmoto.quadzillaparts.co.uk |

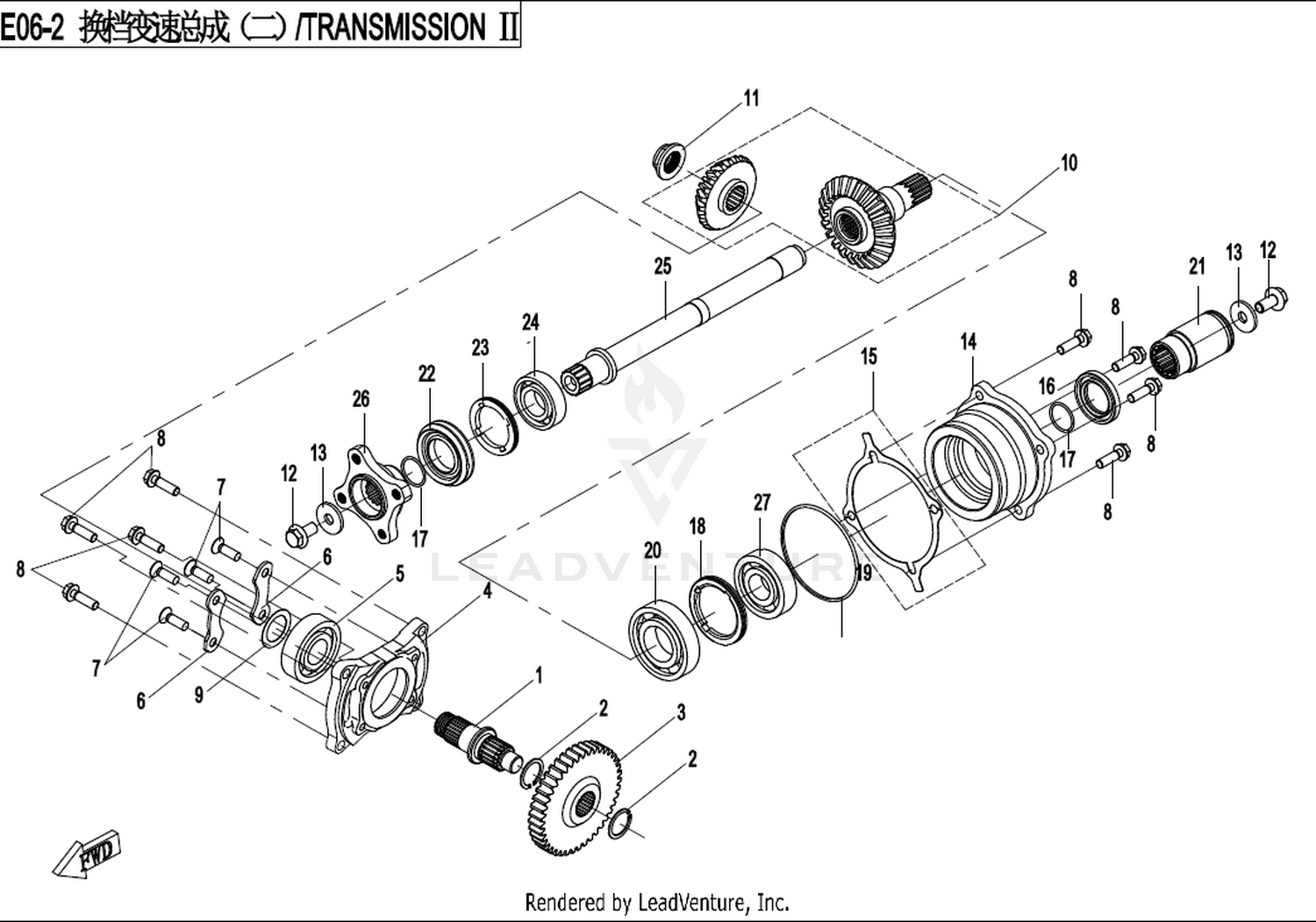

Location in exploded diagrams
Other parts on this diagram — Transmission System(2)
- #02 0180-061007-0050 — Circlip 25 25
- #08 0110-060011-0010 — Bolt M8×28 M8X28
- #10 0GR0-0622A0-10001 — Bevel Gear Assy
- #15 0800-062203-0003 — Adjusting Gasket, Driven Bevel Gear T=0.4 T=0.4
- #19 0180-062205 — O-Seal Ring 88X2.5
- #25 0GR0-062301-10000 — Front Output Shaft Assy
- #03 0180-062102-00001 — Output Driven Gear
- #09 0180-062105-0004 — Adjusting Washer, Drive Shaft Gear T=0.35
- #31 0180-062107-0010 — Lock Nut, Bevel Gear
- #15 0800-062203-0002 — Adjusting Gasket, Driven Bevel Gear T=0.3 T=0.3
- #20 30400-03500 — Bearing 35
- #25 0GR0-062301-10001 — Front Output Shaft Assy
- #04 0180-062103-10000 — Bearing Seat, Drive Bevel Gear
- #09 0180-062105-0003 — Adjusting Washer, Drive Shaft Gear T=0.3
- #15 0800-062203-0001 — Adjusting Gasket, Driven Bevel Gear T=0.2 T=0.2
- #21 9CR6-300201-10000 — Drive Sleeve, Engine
- #26 0GR0-060003 — Coupler
- #05 30499-02501 — Bearing 6305C3@Ntn
- #09 0180-062105-0002 — Adjusting Gasket, Drive Bevel Gear T=0.25 T=0.25
- #03 0GR0-062204 — Washer 10X27.5X4
- #06 0800-062204 — Oil Seal 35X50X7
- #20 0JWA-062302 — Oil Seal 35X61X9
- #27 30400-02502 — Bearing China
- #06 0180-062104-0010 — Limitator, Bearing
