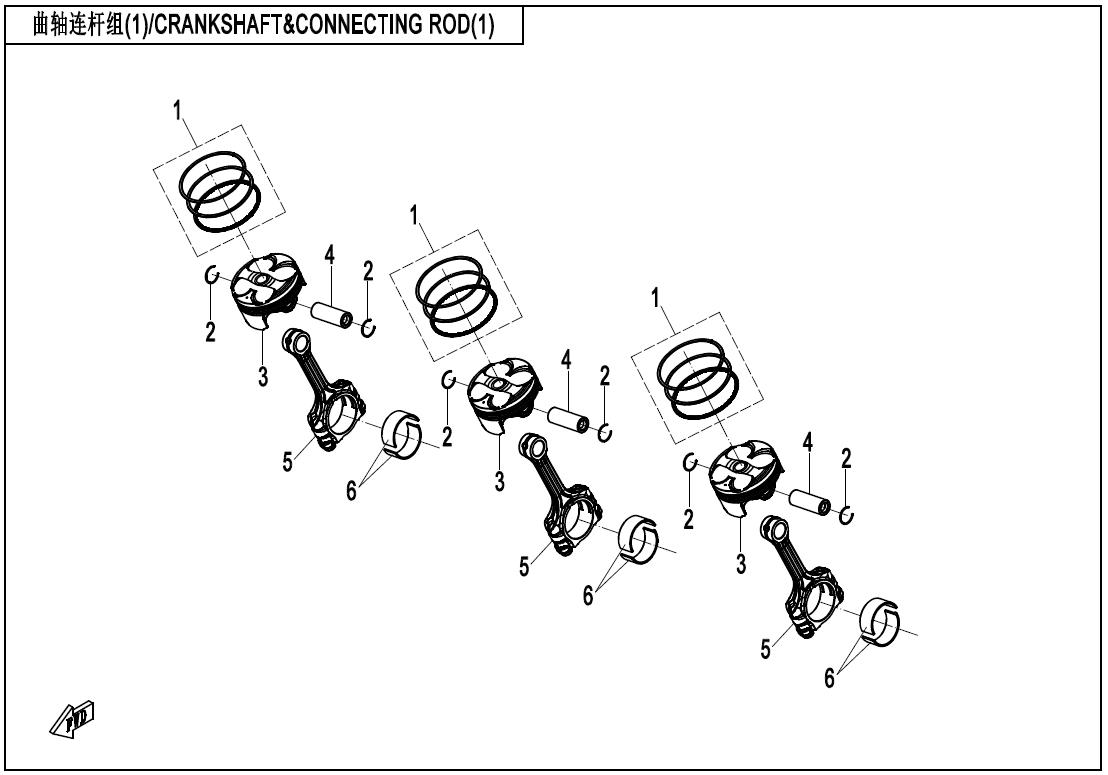

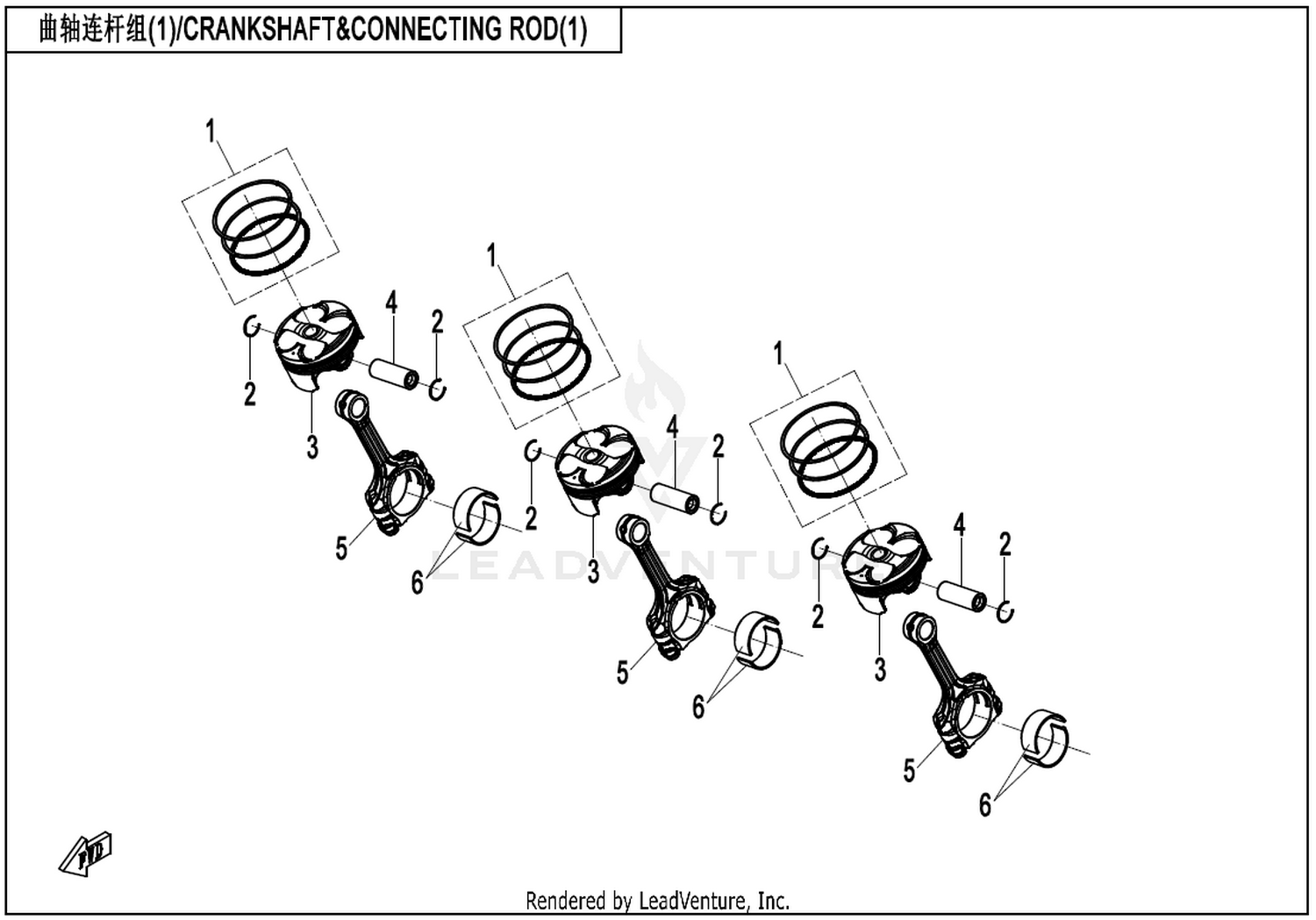

Location in exploded diagrams
Other parts on this diagram — CRANKSHAFT & CONNECTING ROD (1)
- #E04-1-01 0HTV-0421A0 — PISTON PIN ASSY I
- #E04-1-02 0110-040006-0050 — CIRCLIP, PISTON PIN
- #E04-1-03 0HTV-040007-7001-Q0-00001 — PISTON I
- #E04-1-03 0HTV-040007-7001-Q0-00002 — PISTON II
- #E04-1-04 0SQV-040008-1000 — PISTON PIN
- #E04-1-05 0HTV-042000-7001-Q0-00001 — CONNECTING ROD ASSY I
- #E04-1-05 0HTV-042000-7001-Q0-00002 — CONNECTING ROD ASSY II
- #E04-1-06 0HTV-040009-7000-Q0-00001 — CONNECTING ROD BEARING (RED)
- #E04-1-06 0HTV-040009-7000-Q0-00002 — CONNECTING ROD BEARING (BLACK)
- #E04-1-06 0HTV-040009-7000-Q0-00003 — CONNECTING ROD BEARING (BLUE)
