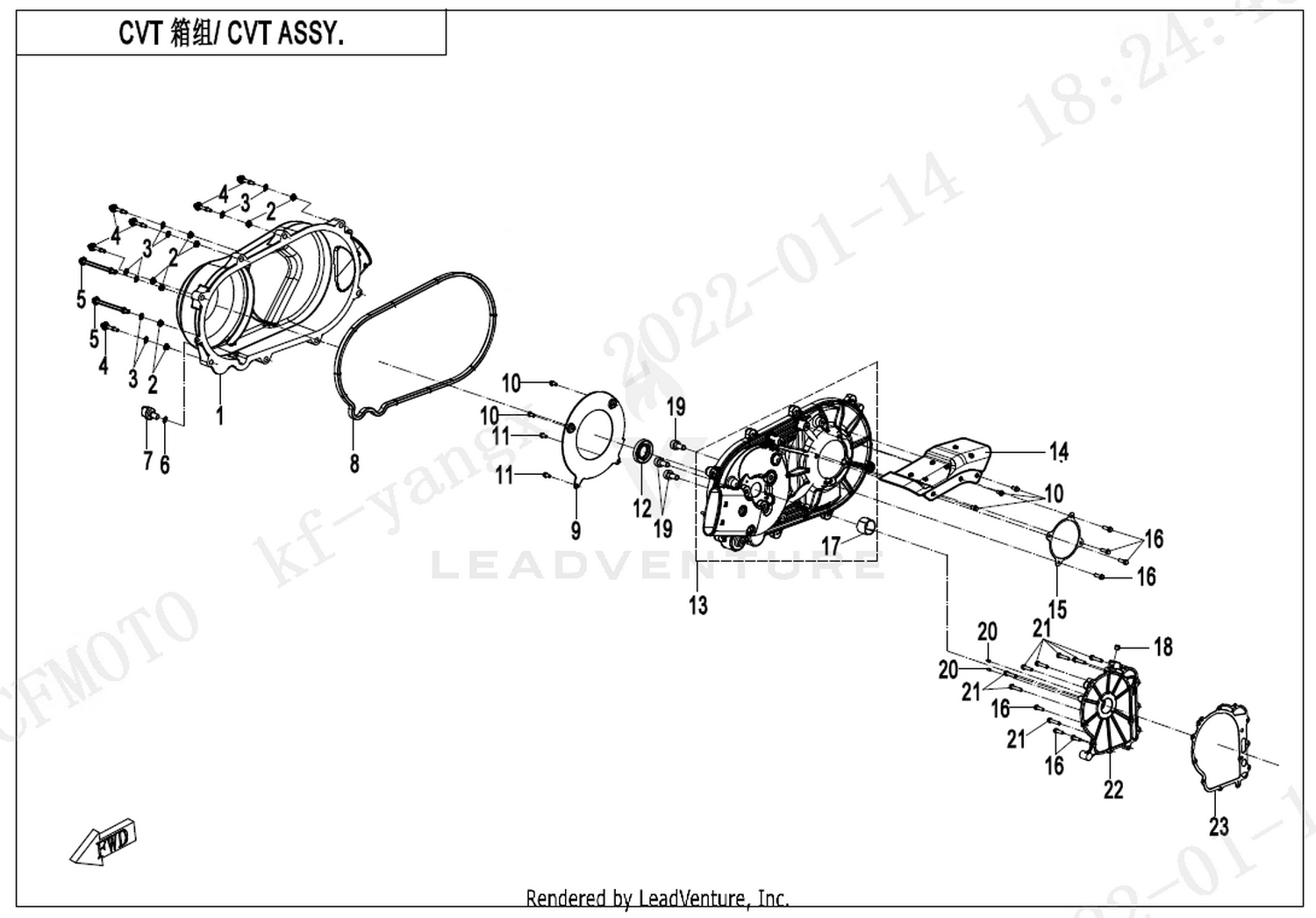

Location in exploded diagrams
Other parts on this diagram — Cvt Case Assy
- #01 0GSV-013201-3000 — Cvt Cover
- #11 0JWV-013202-6000 — Drain Bolt
- #19 01A0-012010-00001 — Screw
- #03 0800-021102-10000 — Rubber Washer
- #08 0GSV-013104-3000 — Gasket, Cvt Cover
- #14 0GSV-013102-3000 — Heat Insulator, Cvt
- #04 30102-080020810 — Screw M8X20@Trivalent Chromium
- #04 0800-021103 — Rubber Washer Cap
- #09 0GSV-013103-3000 — Windshield
- #13 0800-012002-10000 — Gasket 2, Cvt Case
- #04 0010-080008 — Dowel Pin 8X14
- #05 0GSV-013004-3000 — Cvt Cover Bolt 1
- #10 0010-021019-0010 — Bolt M6X12 Galvanized Trivalent Chromium
- #18 0010-023010-0010 — Bolt M6X20 Galvanized Trivalent Chromium
- #02 0010-070003-00002 — Bolt
- #01 0GSV-013002-3001 — Cvt Cover Bolt
- #27 0010-013008-0010 — Bolt M6X35 Galvanized Trivalent Chromium
- #18 0JY0-013102-00011 — Plain Bearing, Cvt Red
- #22 0GSV-015001-3001 — Rh Crankcase Cover
- #44 0700-012701 — O-Seal Ring 10X2
- #08 0JY0-013103 — Oil Seal 32X55X10
- #18 0JY0-013102-00021 — Plain Bearing, Cvt Blue
- #05 0GR0-013001-20000 — Steel Gasket, Cvt Case
