Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (2)
Location in exploded diagrams

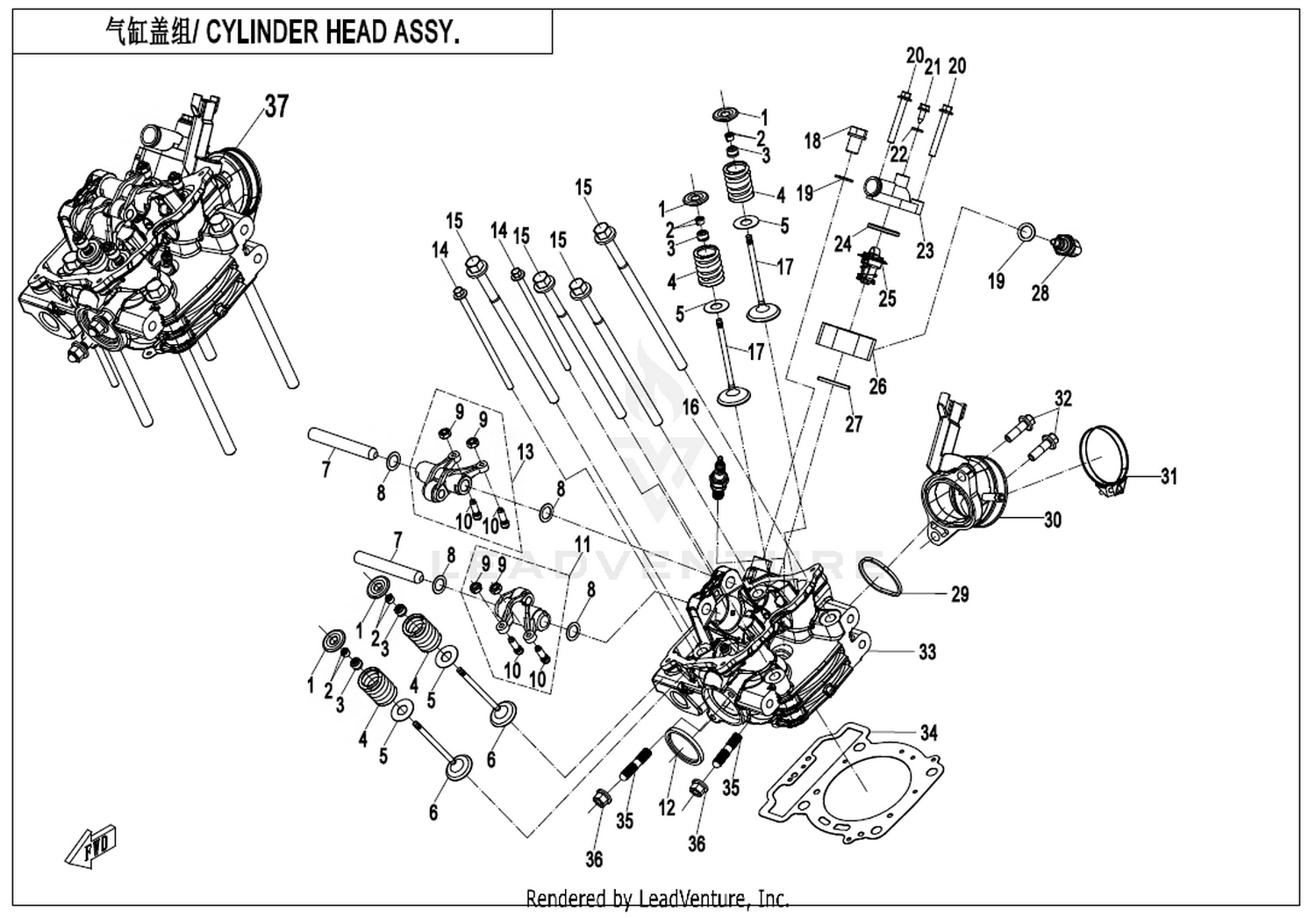

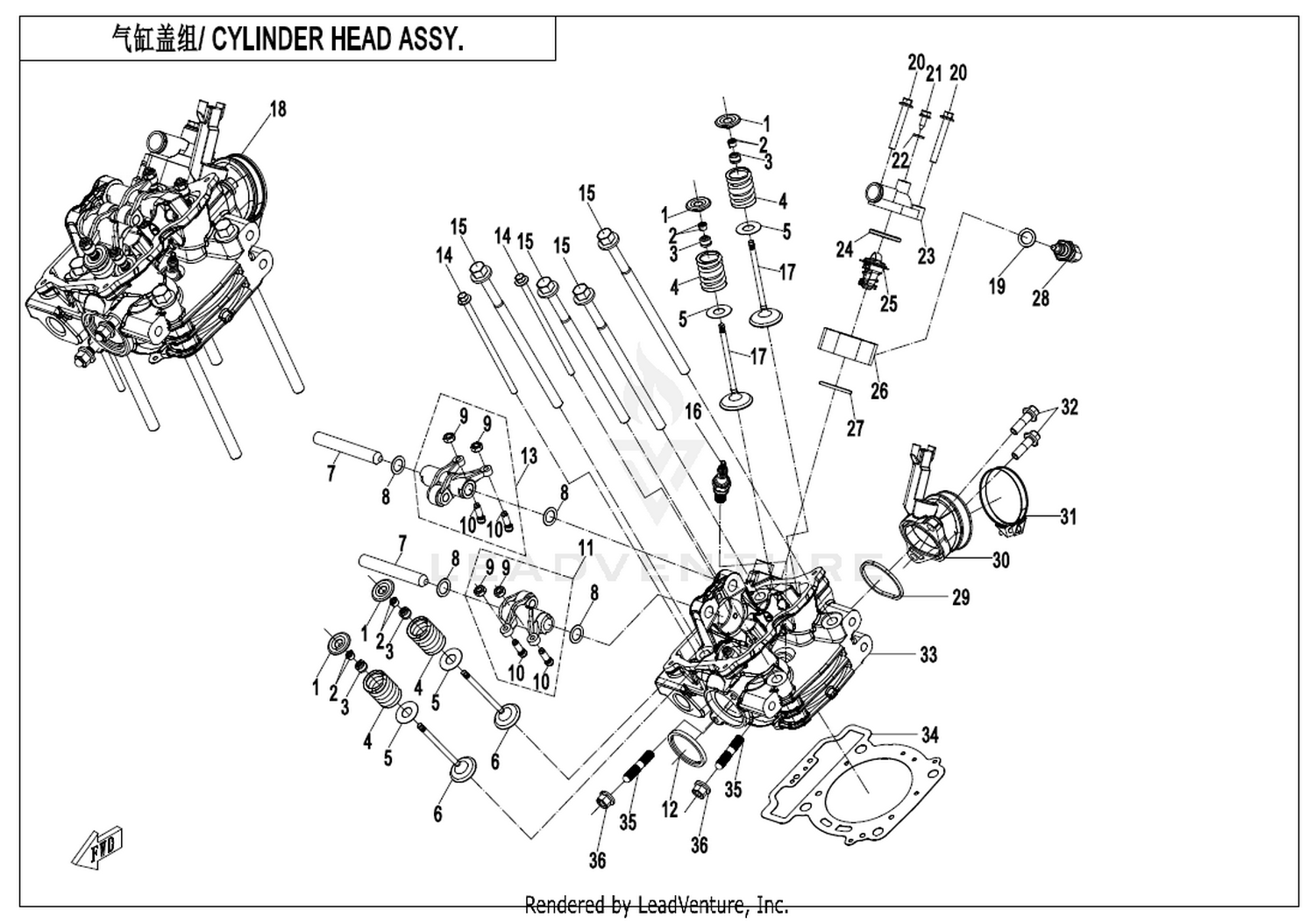

Other parts on this diagram — Cylinder Head Assy
- #06 0800-022005 — Exhaust Valve
- #01 0800-022300 — Exhaust Pipe Gasket Assy
- #24 0010-022802 — Seal Ring
- #30 0GQA-022900-20000 — Fuel Injector Seat
- #35 0180-022003-00002 — Stud M8X42
- #01 0800-022007 — Upper Seat, Valve Spring
- #07 0800-022001 — Rocker Arm Shaft
- #13 0800-022500-20000 — Rocker Arm Assy, Air Intake
- #19 0800-022014 — Washer 12.2X18X1.5
- #25 0800-022700 — Thermostat
- #30 0GQA-022900-20001 — Fuel Injector Seat
- #03 8010-020001 — Nut M8, Muffler Joint M8
- #02 0800-022016 — Lock Clip, Valve
- #08 0800-022002 — Washer 12.3X18.5X0.5
- #14 0GR0-022002-00001 — Bolt M6X132 Galvanized Trivalent Chromium
- #20 0180-013208-0010 — Bolt M6X45 Galvanized Trivalent Chromium
- #26 0GR0-022003 — Thermostat Seat
- #31 01A0-110005 — Clamp 57
- #03 0010-022500-10000 — Seal Ring, Valve Stem
- #09 0800-022506 — Adjust Nut, Valve Clearance
- #15 0GR0-022001-10000 — Cylinder Bolt
- #21 0JWV-022102-2000 — Screw 5.5×16
- #27 30502-028000N — O-Ring 28X2.65
- #32 0130-011114-00001 — Bolt
