0GS0-110001AIR OUTLET PIPE — Genuine CF MOTO Part
CF MOTOoem
0GS0-110001 - AIR OUTLET PIPE #2
Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
Australia (1)

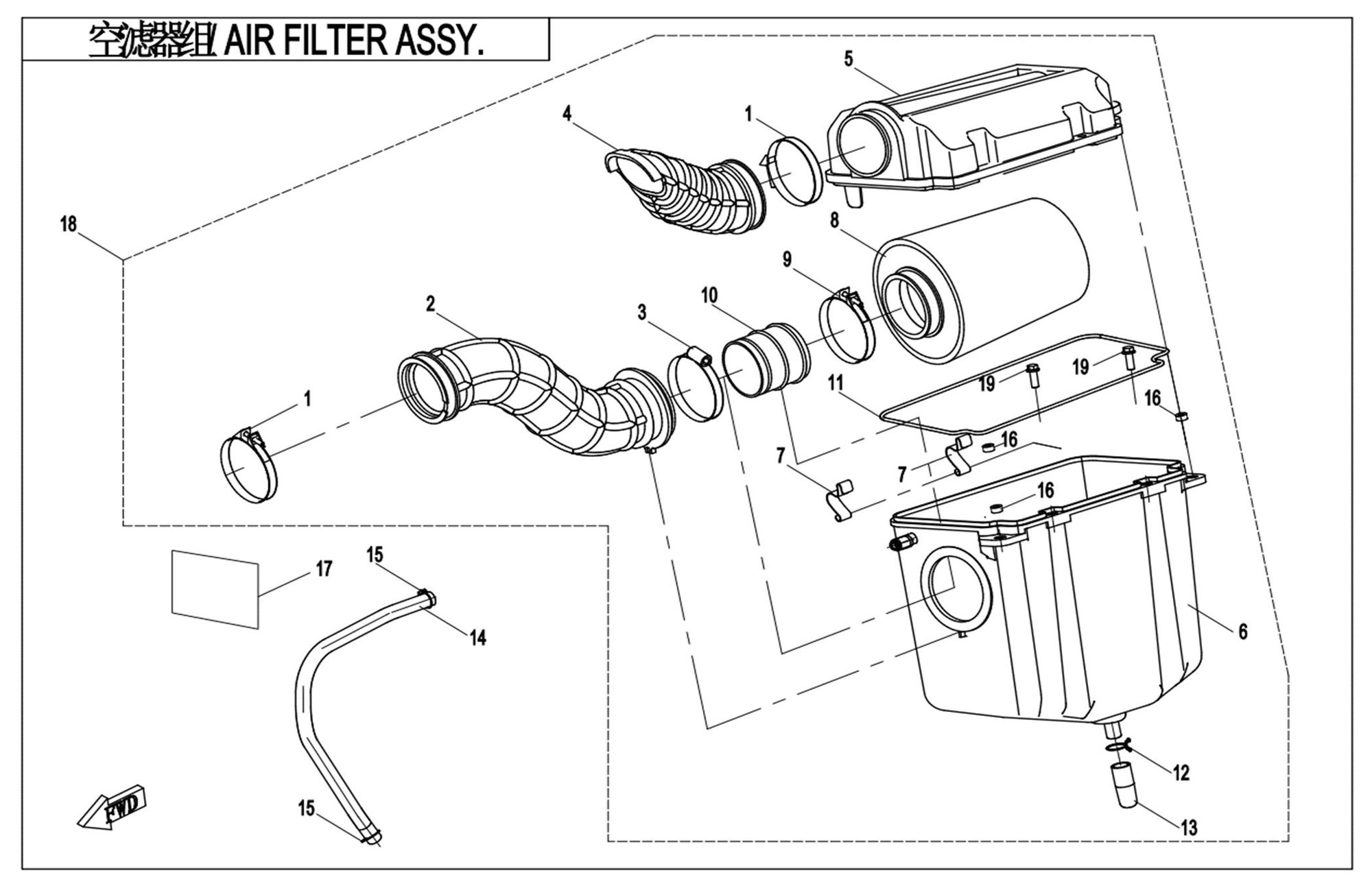

Location in exploded diagrams
Other parts on this diagram — AIR FILTER ASSY.
- #1 01A0-110003 — CLAMP D68
- #3 0GR0-110008 — CLAMP D71
- #4 0GR0-110003 — PIPE,AIR INTAKE
- #5 0GS0-110002 — UPPER HOUSING, AIR FILTER
- #6 0GR0-110001-10000 — LOWER HOUSING, AIR FILTER
- #7 0180-110003 — CLASP
- #8 0800-112000-20010 — FILTER ELEMENT Replacing: 0800-112000-10000 - FILTER ELEMENT
- #9 0120-110001 — CLAMP
- #10 0GR0-110004 — CONNECT PIPE, FILER ELEMENT
- #11 0GR0-110006 — SEAL RING, AIR FILTER
- #12 30601-117010 — CLAMP D17
- #13 0180-110005 — OIL STORAGE HOSE
- #14 0GR0-110007-30000 — BREATHER HOSE, CRANKCASE Replacing: 0GR0-110007-10000 - BREATHER HOSE,CRANKCASE NLA USE 0GR0-110007-20000
- #15 30601-114010 — CLAMP D14
- #16 0GR0-110009 — BUSHING
- #17 9CR6-042027 — HEAT INSULATOR, AIR FILTER
- #18 0GS0-111000 — AIR FILTER ASSY
- #19 0010-030002-00001 — BOLT Replacing: 0010-030002-0020 - BOLT M5X16
