0GS0-051001SPRING, DRIVE PULLEY — Genuine CF MOTO Part
CF MOTOoem
0GS0-051001 - SPRING, DRIVE PULLEY #9
Verified fitment — 11 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (7)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 37.38 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 34.56 | listing | cfmoto.quadzillaparts.co.uk |

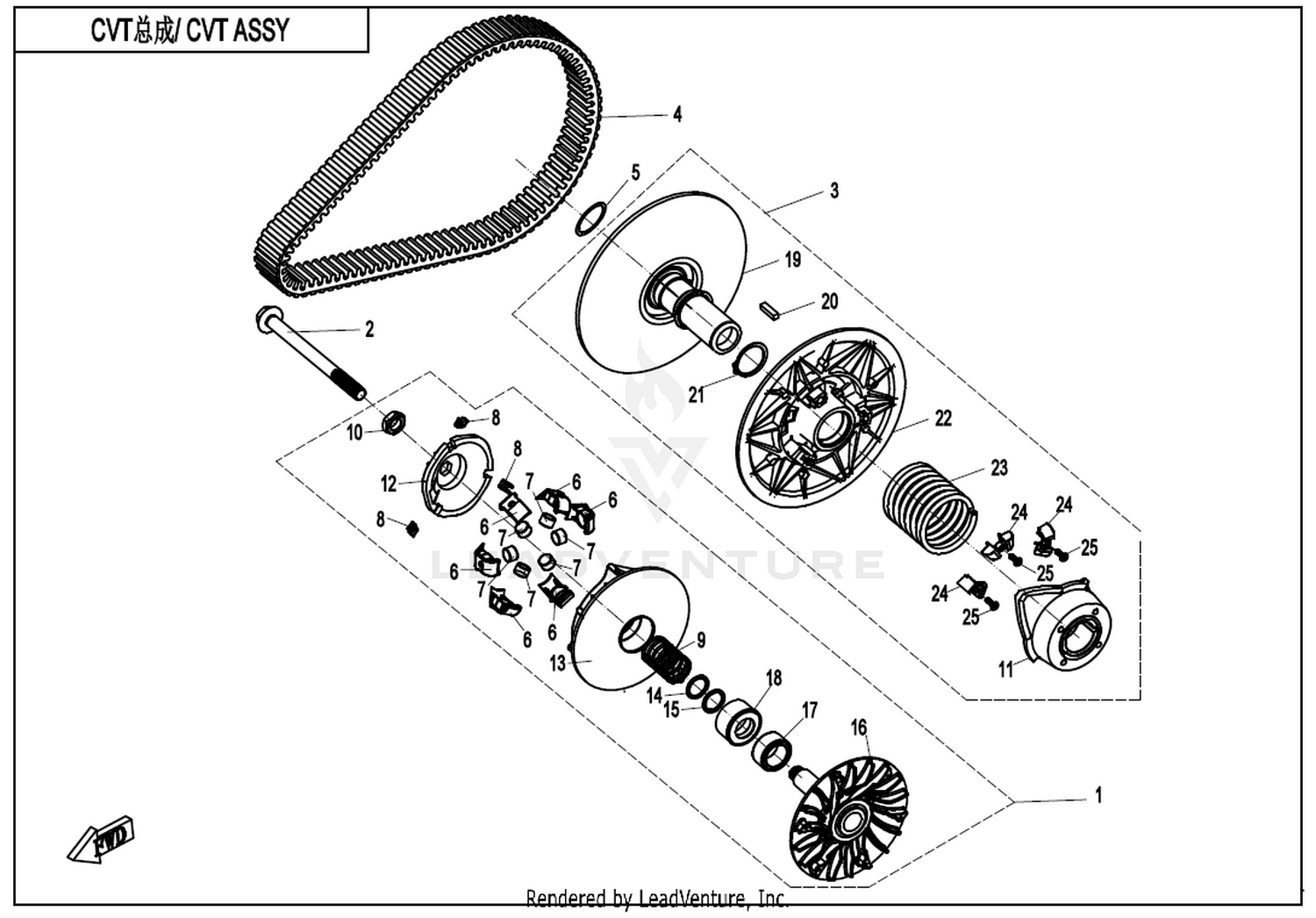

Location in exploded diagrams
Other parts on this diagram — CLUTCH @^ CVT ASSY.
- #1 0GS0-051000-00031 — DRIVE PULLEY ASSY (WITH 16G WEIGHTS) Replacing: 0GS0-051000-10010 - DRIVE PULLEY ASSY
- #2 0JY0-050001-00001 — BOLT, DRIVE PULLEY LH THREAD
- #3 0GR0-052000 — DRIVEN PULLEY
- #4 0180-055000-0003 — DRIVE BELT CVT Replacing: 0180-055000-0004 - DRIVE BELT CVT
- #5 0GR0-050001-00002 — ADJUSTING WASHER Replacing: 0GR0-050001-00001 - ADJUSTING WASHER
- #6 0GR0-051005 — NYLON PROTECTOR,WEIGHT
- #7 0GS0-051002 — WEIGHT ROLLER
- #8 0JYA-051004-10000 — NYLON PARTS, THRUST DISC
- #10 0JYA-051013-10001 — NUT, DRIVE PULLEY
- #11 0GR0-052002 — CAM PLATE
- #12 0JYA-051006-10000 — THRUST COLLAR
- #13 0JYA-051100 — MOVING PLATE ASSY, DRIVE PULLEY
- #14 0GR0-051011 — STEEL WASHER
- #15 0GR0-051009-10000 — NYLON WASHER
- #16 0GS0-051200 — DRIVE FIXED PULLEY ASSY
- #17 0GR0-051300 — OVERRIDING CLUTCH
- #18 0GR0-051001 — SPRING SEAT
- #19 0GR0-052100 — DRIVEN FIXED PULLEY ASSY
- #20 0GR0-052003 — TAPER KEY
- #21 0GR0-052004 — CIRCLIP
- #22 0GR0-052200 — DRIVEN SLIDING PULLEY ASSY
- #23 0GR0-052001 — SPRING DRIVEN PULLEY
- #24 0GR0-052005 — NYLON BLOCK
- #25 0GR0-052006 — SCREW
