0GS0-022100CYLINDER HEAD ASSY — Genuine CF MOTO Part
CF MOTOoem
0GS0-022100 - CYLINDER HEAD ASSY #33
Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
Australia (1)

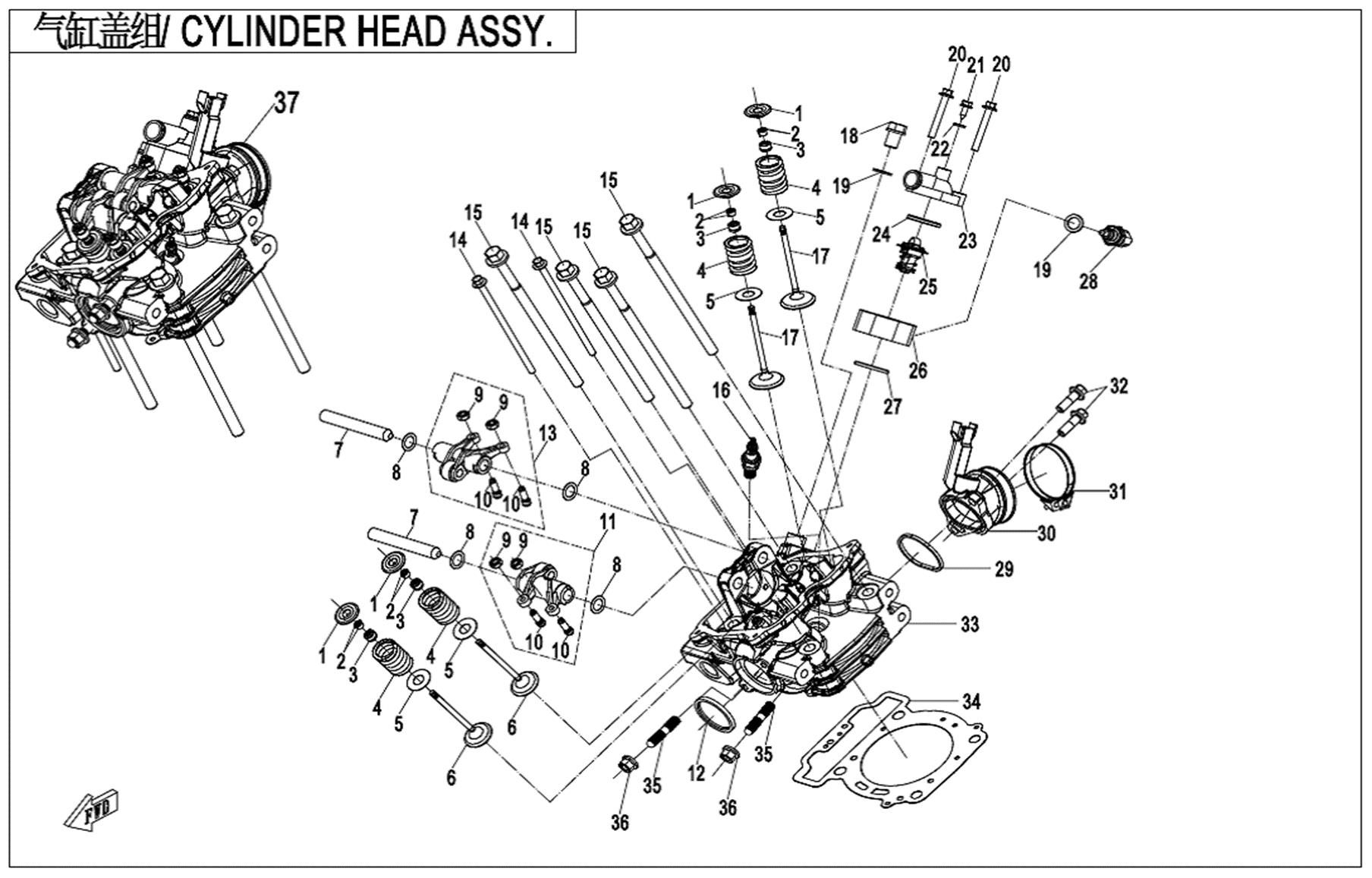

Location in exploded diagrams
Other parts on this diagram — CYLINDER HEAD ASSY.
- #1 0800-022007 — UPPER SEAT, VALVE
- #2 0800-022016 — LOCK CLIP, VALVE
- #3 0010-022500-10000 — SEAL RING, VALVE STEM Replacing: 0010-022500 - SEAL RING, VALVE STEM
- #4 0800-022006-10001 — VALVE SPRING Replacing: 0800-022006 - SPRING, VALVE
- #5 0800-022008 — LOWER SEAT, VALVE
- #6 0800-022005 — VALVE, EXHAUST
- #7 0800-022001 — ROCKER ARM SHAFT
- #8 0800-022002 — WASHER 12.3X18.5X0.5
- #9 0800-022506 — ADJUST NUT
- #10 0800-022510 — ADJUST SCREW
- #11 0800-022600-20000 — ROCKER ARM ASSY, AIR EXHAUST
- #12 0800-022300 — BUSHING, EXHAUST PIPE
- #13 0800-022500-20000 — ROCKER ARM ASSY, AIR INTAKE
- #14 0GR0-022002-00001 — BOLT M6X132 Replacing: 0GR0-022002 - BOLT M6X132
- #15 0GR0-022001-10000 — BOLT,CYLINDER
- #16 0800-022800 — SPARK PLUG DCPR8E (NGK)
- #17 0800-022004 — VALVE, INTAKE
- #18 0800-022015-00001 — SCREW PLUG M12X1.5 Replacing: 0800-022015 - SCREW PLUG M12X1.5
- #19 0800-022014 — WASHER 12.2X18X1.5
- #20 0180-013208-0010 — BOLT M6X45
- #21 30132-480130030 — SELF-TAPPING SCREW ST4.8X13
- #22 0800-022011-00001 — WASHER 5.3X11X1.5 Replacing: 0800-022011 - WASHER 5.3X11X15
- #23 0800-022013-10000 — THERMOSTAT CAP Replacing: 0800-022013 - THERMOSTAT CAP
- #24 0010-022802 — SEAL RING
