0GRB-111007JOINT HOSE, OIL STORAGE — Genuine CF MOTO Part
CF MOTOoem
0GRB-111007 - JOINT HOSE, OIL STORAGE #9
Verified fitment — 10 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Australia (6)
United Kingdom (4)

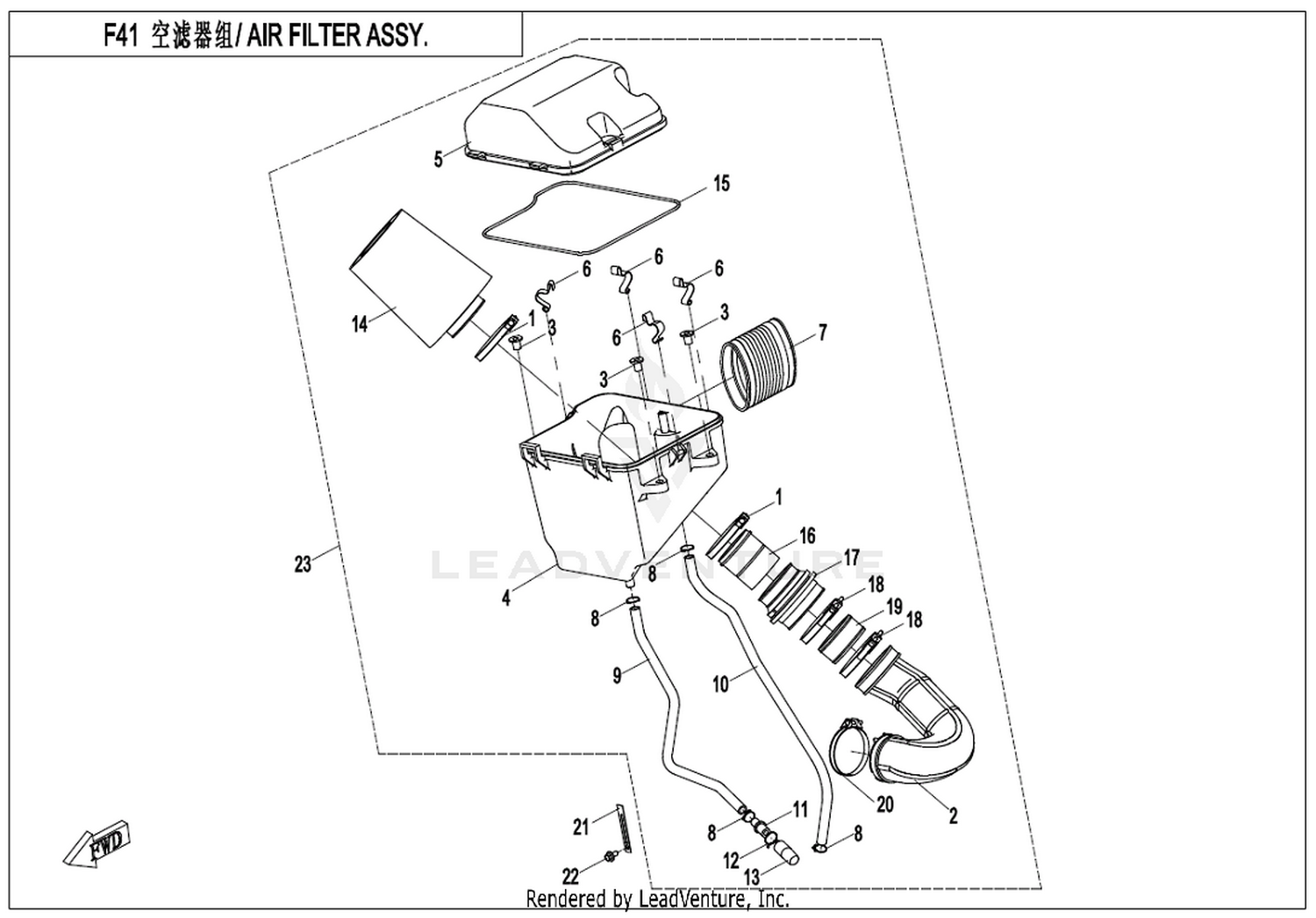

Location in exploded diagrams
Other parts on this diagram — AIR FILTER ASSY.
- #1 0120-110001 — CLAMP
- #2 0GRB-111003 — EXHAUST PIPE
- #3 060C-110009 — SLEEVE
- #4 0GRB-111001 — LOWER HOUSING, AIR FILTER
- #5 0GRB-111002 — UPPER HOUSING, AIR FILTER
- #6 0180-110003 — CLASP
- #7 0GRB-111004 — LINK PIPE, AIR INLET
- #8 30601-112010 — CLAMP D12
- #10 0GRB-110001 — BREATHER HOSE
- #11 0GRB-111008 — JOINT,OIL STORAGE HOSE
- #12 30601-117010 — CLAMP D17
- #13 0180-110005 — OIL STORAGE HOSE
- #14 0800-112000-20010 — FILTER ELEMENT Replacing: 0800-112000-00001 - FILTER ELEMENT, PAPER
- #15 0GRB-111009 — SEAL RING, AIR FILTER
- #16 0800-110005-1000 — CONNECT PIPE, FILER ELEMENT
- #17 0800-111006 — RUBBER ADAPTOR SEAT
- #18 0800-110008 — CLAMP
- #19 0GRB-111005 — AIR OUTLET PIPE
- #20 9010-020007 — A-TYPE SCREW CLAMP
- #21 0180-014010 — WIRE CLAMP
- #22 0010-021019-0010 — BOLT M6X12
- #23 0GRB-111000-00003 — AIR FILTER ASSY Replacing: 0GRB-111000-00001 - AIR FILTER ASSY
