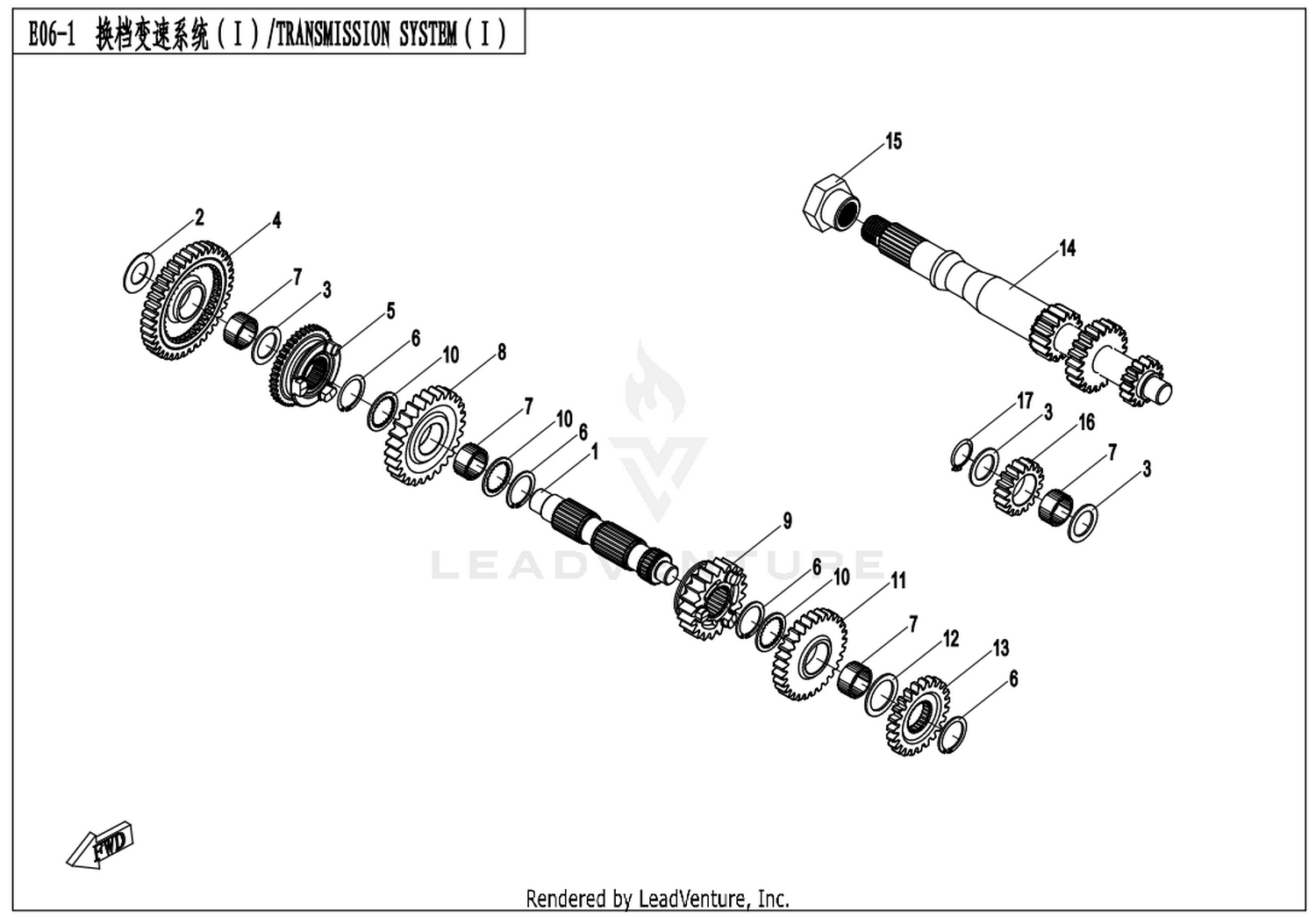

Location in exploded diagrams
Other parts on this diagram — Transmission System(1)
- #01 0GR0-061001 — Secondary Shaft, Drive
- #07 0GR0-060100 — Needle Bearing 20X25X12 20X25X12
- #13 0GR0-061002 — Gear, Parking
- #02 0800-061002 — Washer 17.5X32X1
- #08 0GR0-061005 — Gear, Highrange
- #14 0GR0-060001 — Main Shaft
- #03 0180-061012 — Gasket 20.5X30X1.5
- #15 0JY0-060001-00001 — Nut, Main Drive Shaft
- #04 0GR0-061200 — Driven Gear, Low Range
- #10 0GR0-061008 — Washer
- #16 0GR0-060002 — Reverse Intermediate Gear
- #05 0GR0-061006-10000 — Slide Gear
- #11 0GR0-061003 — Reverse Gear
- #09 30801-02005 — Circlips For Shaft 20
- #02 0180-061007-0050 — Circlip 25 25
- #12 0GR0-061009-00001 — Washer 25X34X1.5
