Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (1)
Location in exploded diagrams

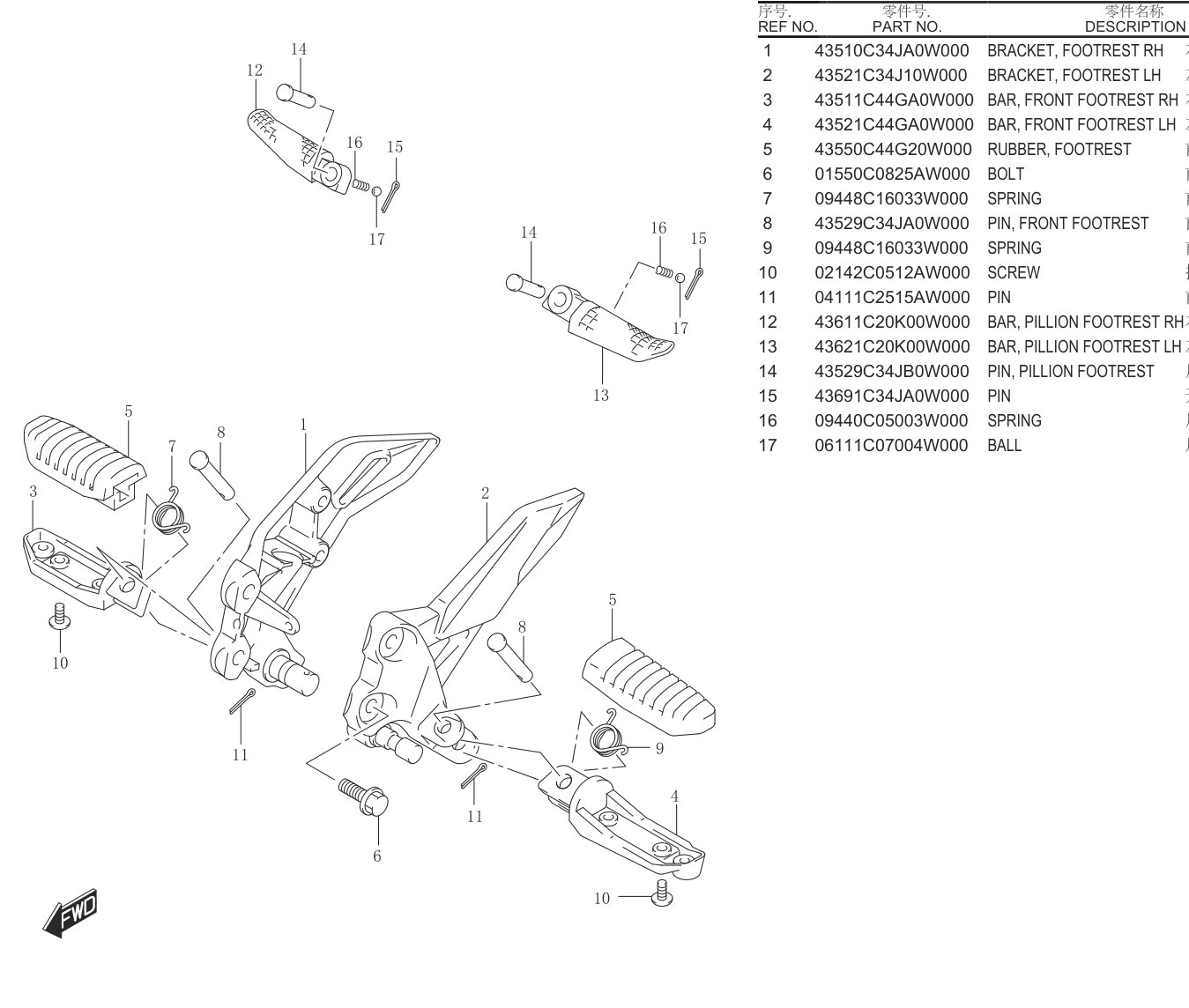

Other parts on this diagram — FOOTREST...................... 44
- #1 43510C34JA0W000 — BRACKET, FOOTREST RH
- #2 43521C34J10W000 — BRACKET, FOOTREST LH 3 43511C44GA0W000 BAR, FRONT FOOTREST RH 1 4 43521C44GA0W000 BAR, FRONT FOOTREST LH 1
- #5 43550C44G20W000 — RUBBER, FOOTREST
- #6 01550C0825AW000 — BOLT
- #8 43529C34JA0W000 — PIN, FRONT FOOTREST
- #10 02142C0512AW000 — SCREW
- #11 04111C2515AW000 — PIN
- #12 43611C20K00W000 — BAR, PILLION FOOTREST RH
- #13 43621C20K00W000 — BAR, PILLION FOOTREST LH
- #14 43529C34JB0W000 — PIN, PILLION FOOTREST
- #15 43691C34JA0W000 — PIN
- #16 09440C05003W000 — SPRING
- #17 06111C07004W000 — BALL
