Verified fitment — 3 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Location in exploded diagrams

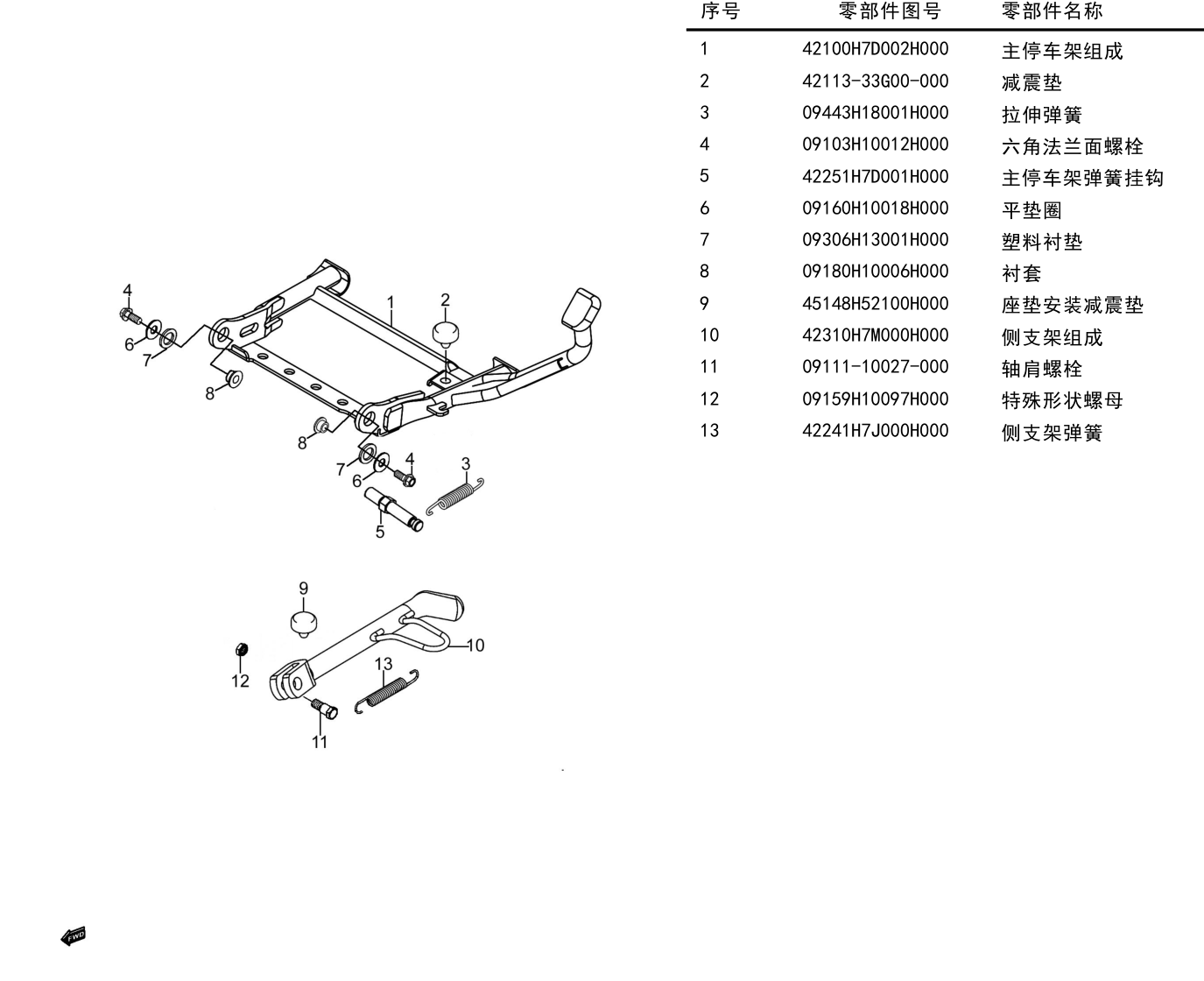

Other parts on this diagram — 停车架组
- #1 42100H7D002H000 — 主停车架组成
- #2 42113-33G00-000 — 减震垫
- #4 09103H10012H000 — 六角法兰面螺栓
- #5 42251H7D001H000 — 主停车架弹簧挂钩
- #6 09160H10018H000 — 平垫圈
- #7 09306H13001H000 — 塑料衬垫
- #8 09180H10006H000 — 衬套
- #9 45148H52100H000 — 座垫安装减震垫
- #10 42310H7M000H000 — 侧支架组成
- #11 09111-10027-000 — 轴肩螺栓
- #12 09159H10097H000 — 特殊形状螺母
- #13 42241H7J000H000 — 侧支架弹簧
