Verified fitment — 13 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (13)

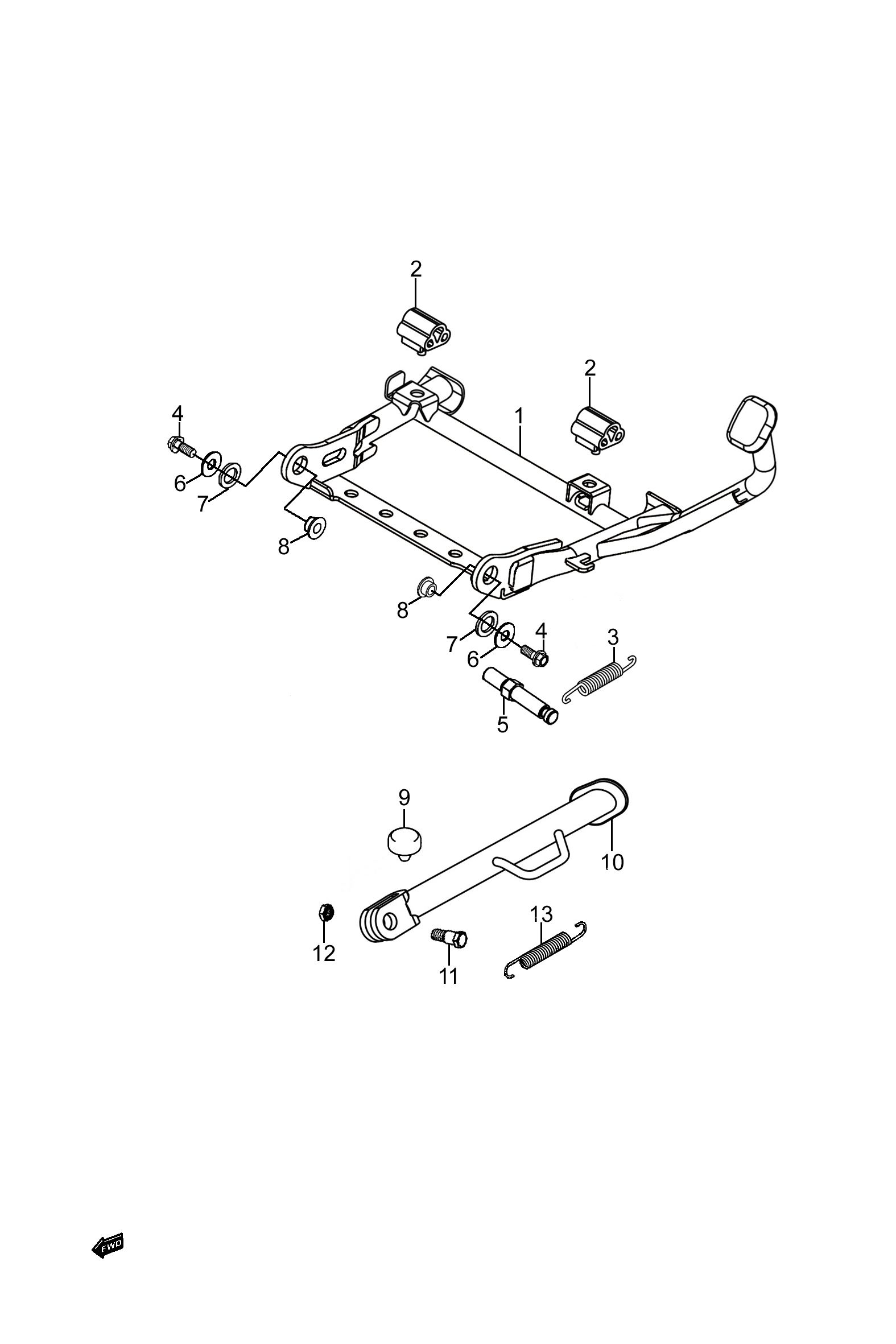

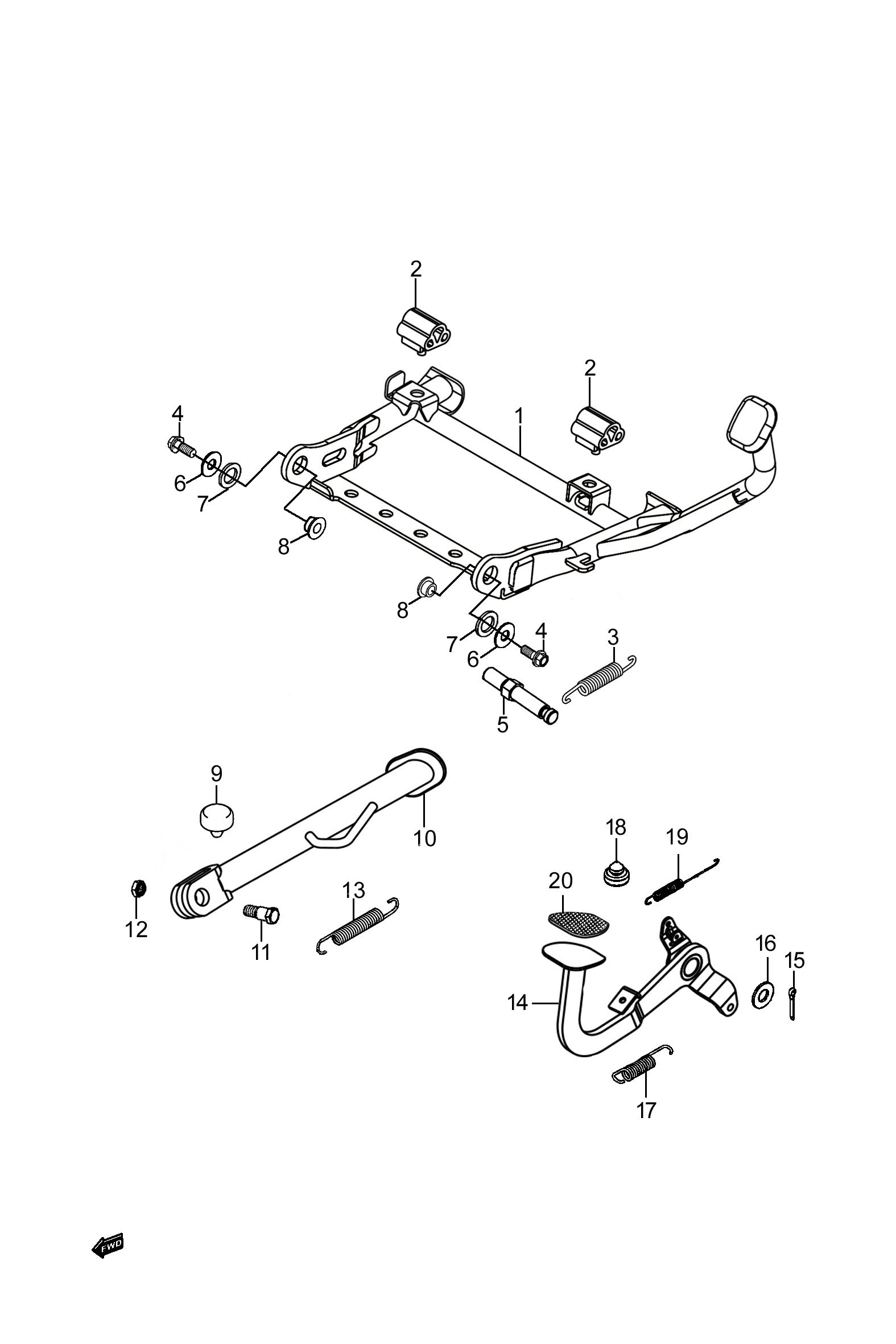

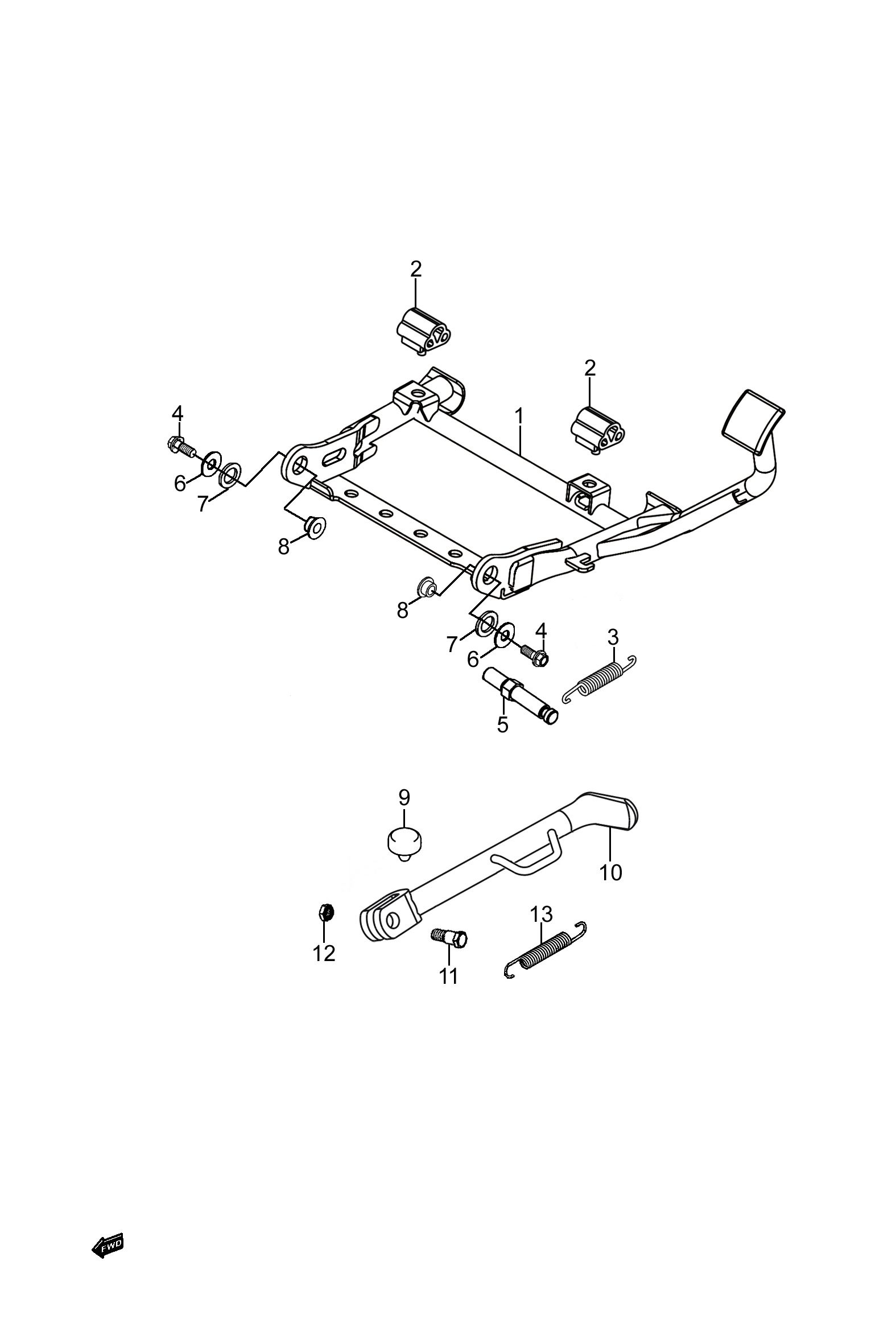

Location in exploded diagrams
Other parts on this diagram — 停车架组
- #1 42100H7V000H000 — 主停车架组成
- #2 42272H7U001H000 — 主停车架减震垫
- #3 09443H18003H000 — 拉伸弹簧
- #4 09103H10012H000 — 六角法兰面螺栓
- #5 42251H7D001H000 — 主停车架弹簧挂钩
- #6 09160H10018H000 — 平垫圈
- #7 09306H13001H000 — 塑料衬垫
- #8 09180H10017H000 — 衬套
- #9 43125H7U300H000 — 侧支架缓冲胶
- #10 42310H7V000H000 — 侧支架组成
- #11 09111H10004H000 — 轴肩螺栓
- #12 09159H10097H000 — 特殊形状螺母
