Verified fitment — 6 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

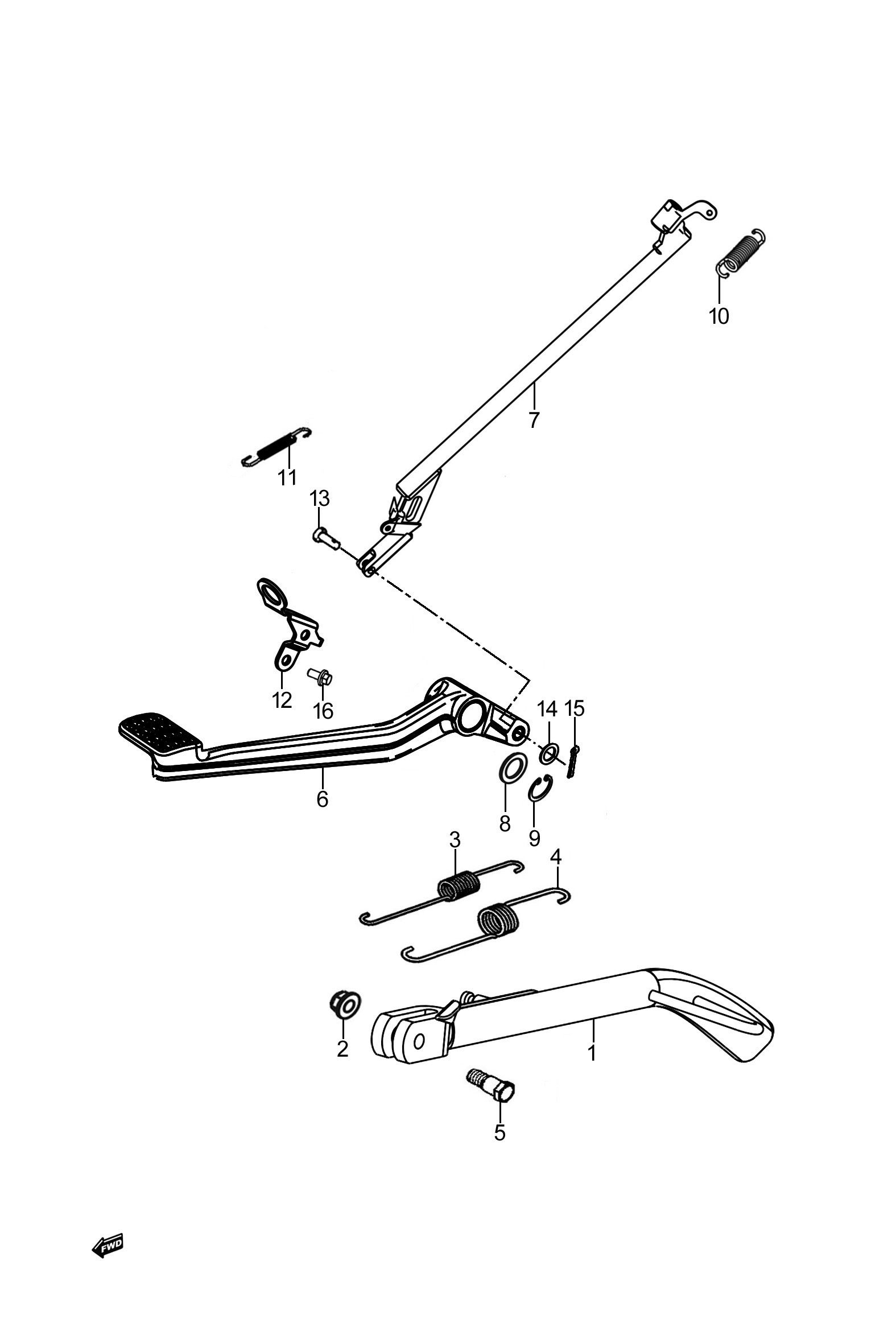

Location in exploded diagrams
Other parts on this diagram — 停车架组
- #1 42310H3A000H000 — 侧支架组成
- #2 09159H10006H000 — 特殊形状螺母
- #3 42421-48H00-000 — 侧支架弹簧
- #4 42422-48H00-000 — 侧支架外弹簧
- #5 09111H10012H000 — 轴肩螺栓
- #6 43110H3A000H000 — 制动踏板组成
- #7 43310H3A000H000 — 后制动压杆组成
- #8 09160-18040-000 — 平垫圈
- #9 08331-3118A-000 — 弹性挡圈
- #10 09443-11033-000 — 拉伸弹簧
- #12 41577H3A000H000 — 后制动开关支架
- #13 09200H06006H000 — 带孔销
- #14 08322-0106A-000 — 平垫圈
- #15 04111-2015A-000 — 开口销
- #16 09103H06078H000 — 六角法兰面螺栓
