Verified fitment — 4 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

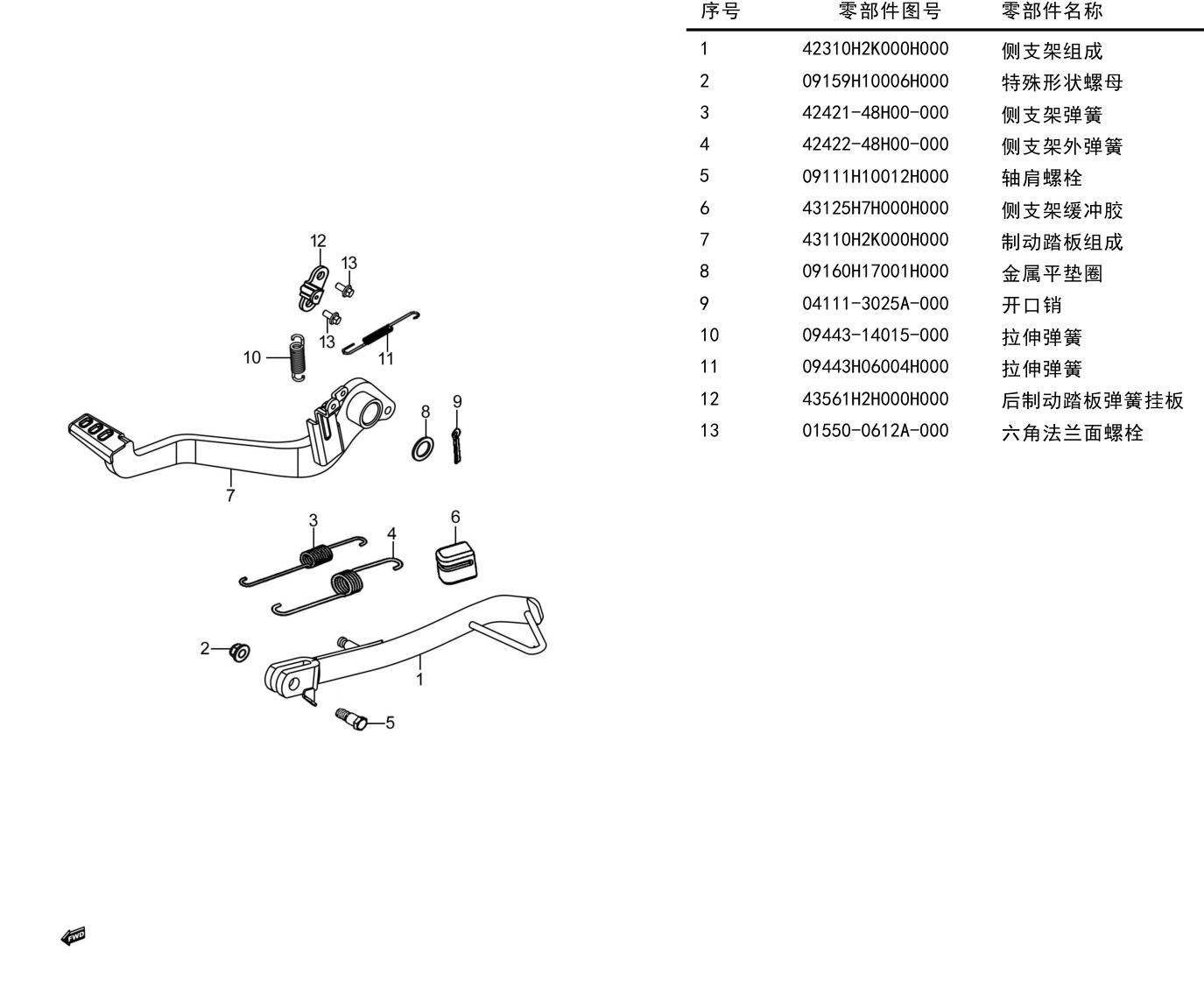

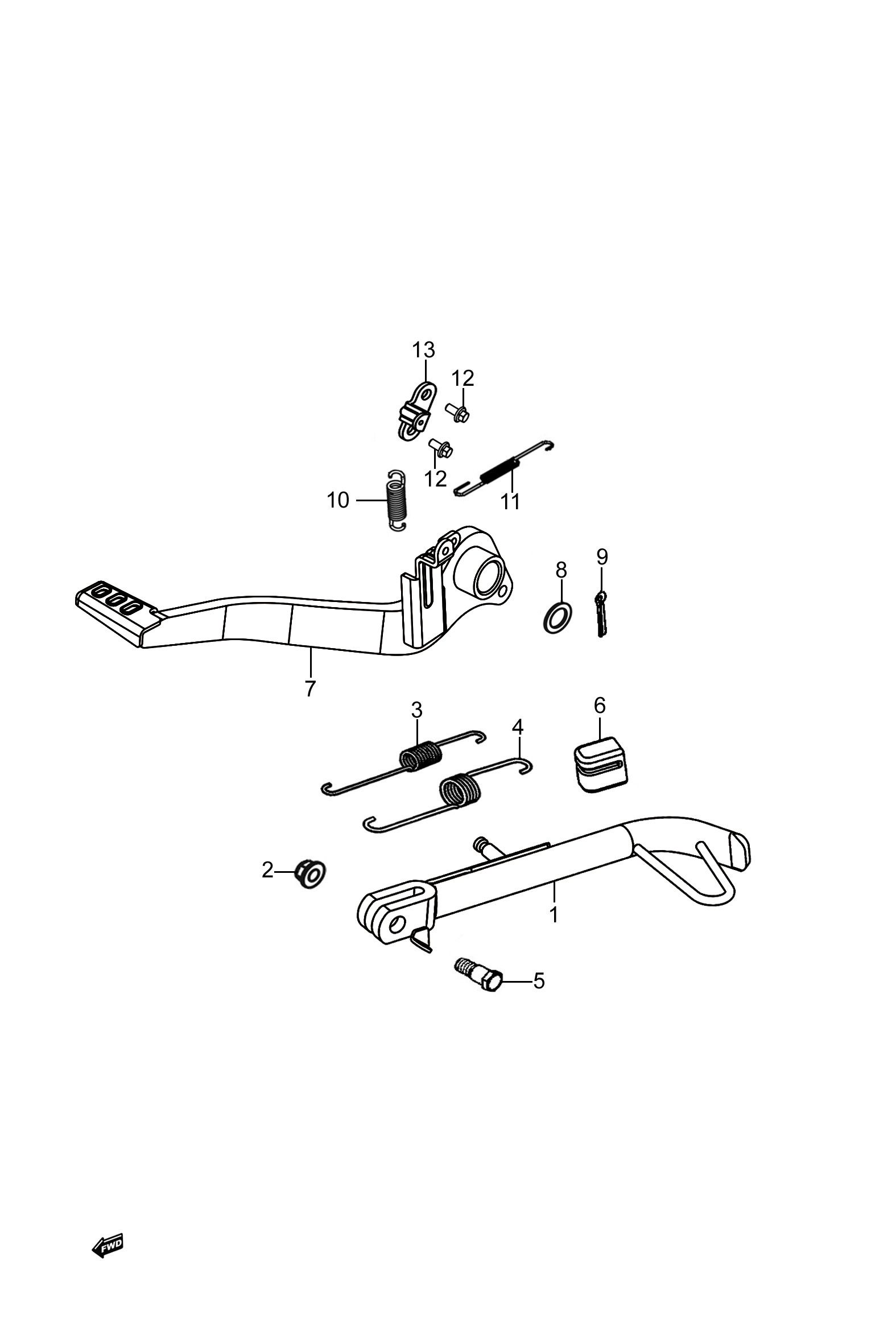

Location in exploded diagrams
Other parts on this diagram — 停车架组
- #1 42310H2H001H000 — 侧支架组成
- #2 09159H10005H000 — 特殊形状螺母
- #3 42421-48H00-000 — 侧支架弹簧
- #4 42422-48H00-000 — 侧支架外弹簧
- #5 09111H10009H000 — 轴肩螺栓
- #6 43125H7H000H000 — 侧支架缓冲胶
- #7 43110H2H002H000 — 制动踏板组成
- #8 09160H17001H000 — 金属平垫圈
- #9 04111-3025A-000 — 开口销
- #12 01550-0612A-000 — 六角法兰面螺栓
- #10 09443-14015-000 — 拉伸弹簧
- #13 43561H2H000H000 — 后制动踏板弹簧挂板
