Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (2)
Location in exploded diagrams

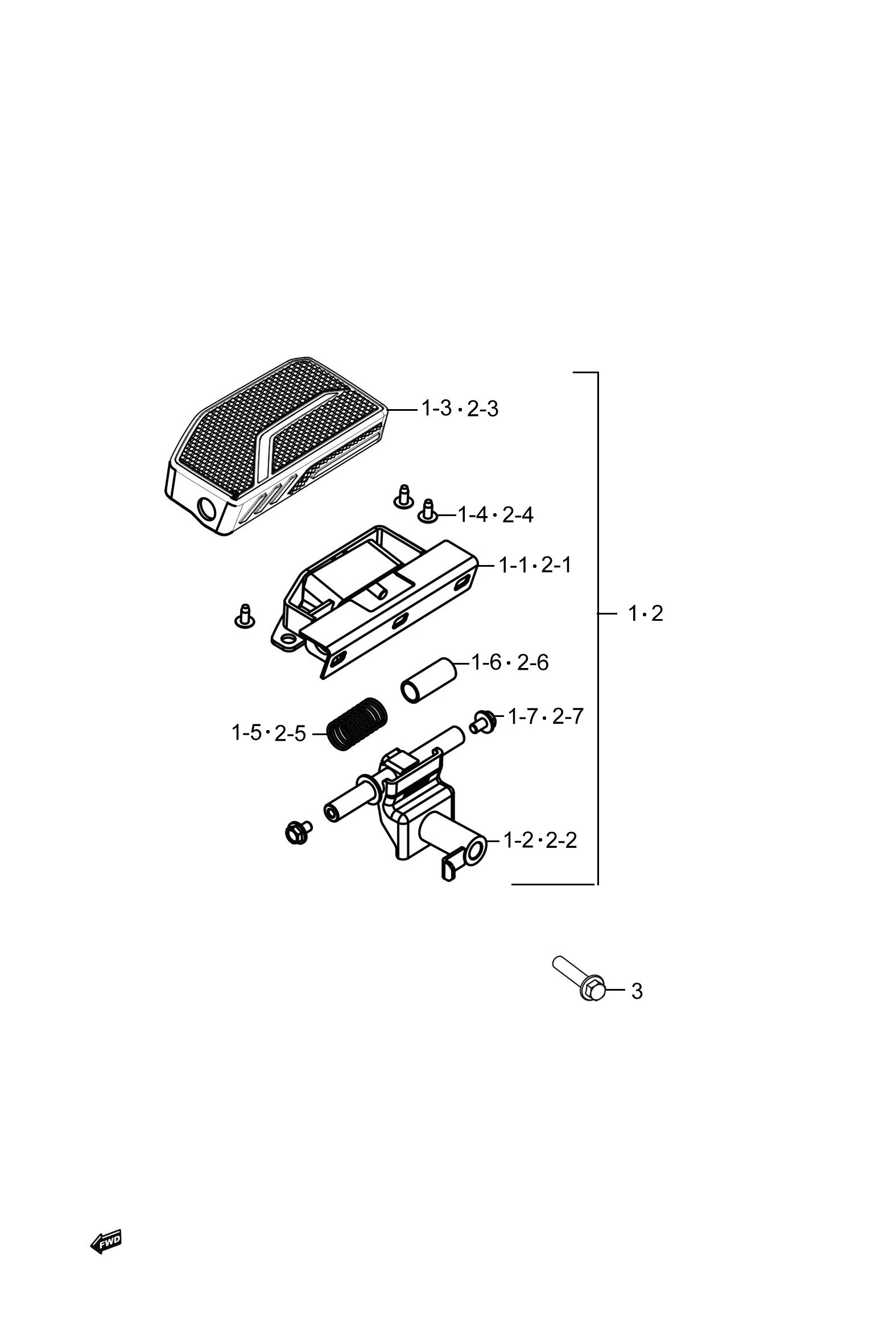

Other parts on this diagram — 搁脚组
- #1 43501H95200H000 — 右踏板总成
- #1-1 43510H95200H000 — 右搁脚支架组成
- #1-2 43530H95200H000 — 右搁脚安装支座组成
- #1-3 43575H95200H000 — 右搁脚盖
- #1-4 03241-0512B-000 — 十字槽自攻螺钉
- #1-6 09180H12033H000 — 衬套
- #1-7 01550-0610B-000 — 六角法兰面螺栓
- #3 01550-1065B-000 — 六角法兰面螺栓
- #2 43502H95200H000 — 左踏板总成
- #2-1 43520H95200H000 — 左搁脚支架组成
- #2-2 43540H95200H000 — 左搁脚安装支座组成
- #2-3 43585H95200H000 — 左搁脚盖
