Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (2)
Location in exploded diagrams

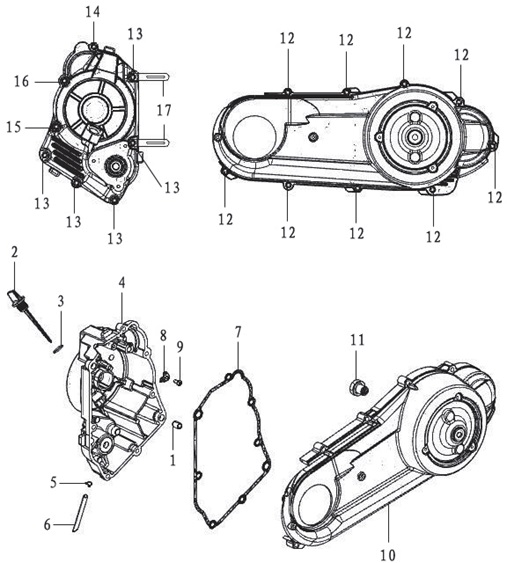

Other parts on this diagram — CVT Cover
- 09404-06431 — ItalJet Dragster 125 CLIP
- C2010-6170W — ItalJet Dragster 125 SCREW,HEX SOCKET (M6X170)
- C2010-6140W — ItalJet Dragster 125 SCREW,HEX SOCKET (M6X140)
- C2010-6025W — ItalJet Dragster 125 SCREW,HEX SOCKET (M6X25)
- C2010-6110W — ItalJet Dragster 125 SCREW,HEX SOCKET (M6X110)
- C2010-6035W — ItalJet Dragster 125 SCREW,HEX SOCKET (M6X35)
- 21621-00300 — ItalJet Dragster 125 BUSH
- 70003-00301 — ItalJet Dragster 125 COVER,CVT
- C4316-5010L — ItalJet Dragster 125 SCREW
- 32371-05300 — ItalJet Dragster 125 PLATE
- 11483-00300 — ItalJet Dragster 125 GASKET,MAGNETO COVER
- 11352-01E00 — ItalJet Dragster 125 HOSE,DRAIN
- 70002-01E00 — ItalJet Dragster 125 COVER,MAGNETO
- 11972-00300 — ItalJet Dragster 125 O-RING
- 11971-00300 — ItalJet Dragster 125 PLUG,OIL LEVEL
- D4221-00300 — ItalJet Dragster 125 DOWEL,RING (10X13)
- 0921621-00300 — ItalJet Dragster 125 BUSH
- 0911483-00300 — ItalJet Dragster 125 GASKET,MAGNETO COVER
