Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Location in exploded diagrams

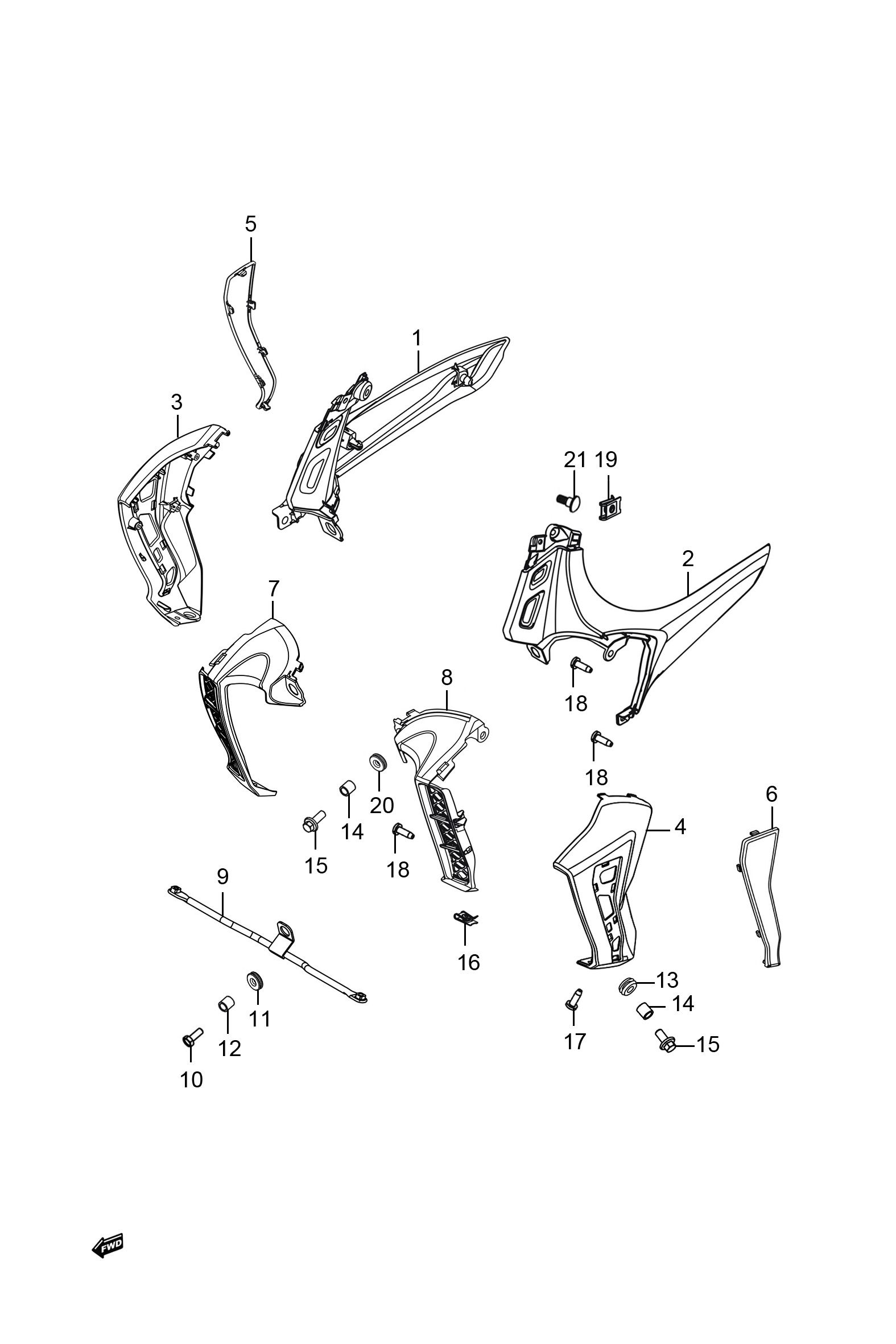

Other parts on this diagram — 护罩组
- #1 44192H3A000H000 — 燃油箱右盖
- #2 44193H3A000H000 — 燃油箱左盖
- #3 44272H3A000H511 — 燃油箱右下盖(哑光黑)
- #4 44282H3A000H511 — 燃油箱左下盖(哑光黑)
- #5 44172H3A000H000 — 燃油箱右下装饰盖
- #6 44182H3A000H000 — 燃油箱左下装饰盖
- #7 44174H3A000H000 — 燃油箱右前装饰盖
- #8 44184H3A000H000 — 燃油箱左前装饰盖
- #9 44150H3A000H000 — 燃油箱前侧盖支架组成
- #10 09116-06211-000 — 后搁脚安装螺栓
- #11 09320-08051-000 — 减震垫
- #12 09180-06256-000 — 衬套
- #13 09320-09016-000 — 减震垫
- #14 09180-06263-000 — 衬套(无凸缘)
- #15 09116-06111-000 — 平垫螺栓组合
- #16 09148-05077-000 — 锁片螺母
- #17 03241-0512B-000 — 十字槽自攻螺钉
- #18 92125-33GC0-000 — 前货箱盖内衬板安装螺钉
- #19 09148-05L08-000 — 锁片螺母
- #21 09139H05009H000 — 特殊形状螺钉
