Verified fitment — 10 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

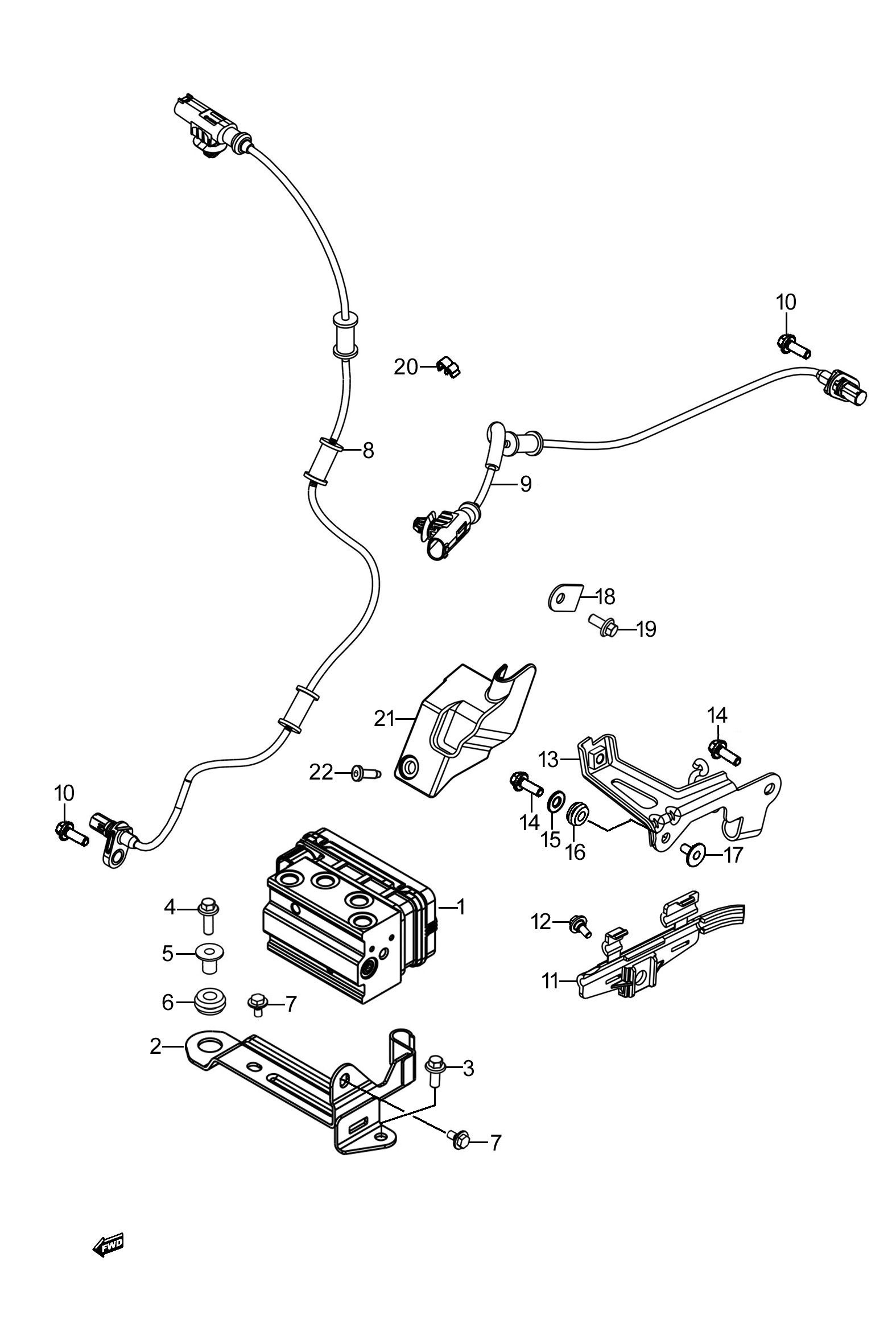

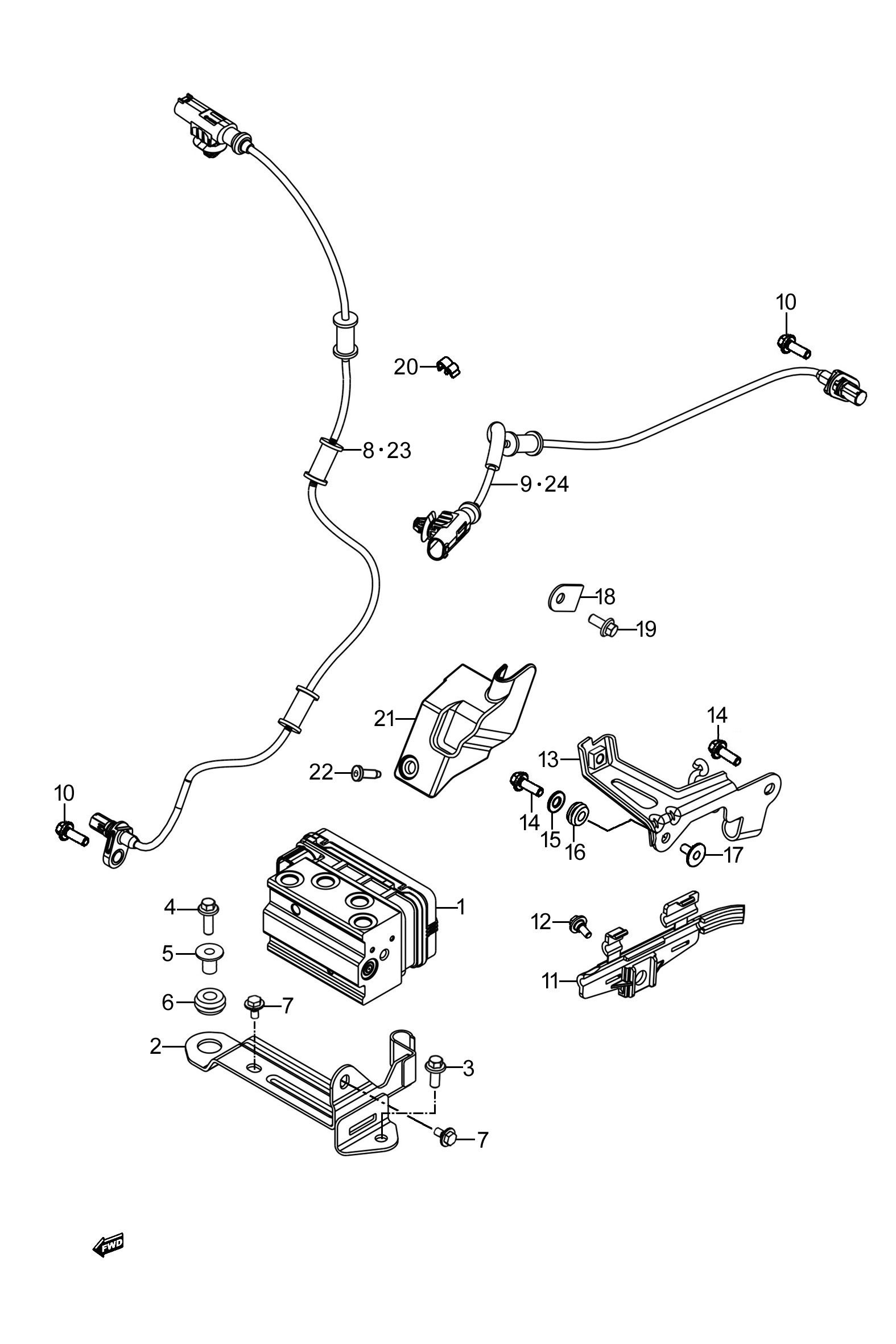

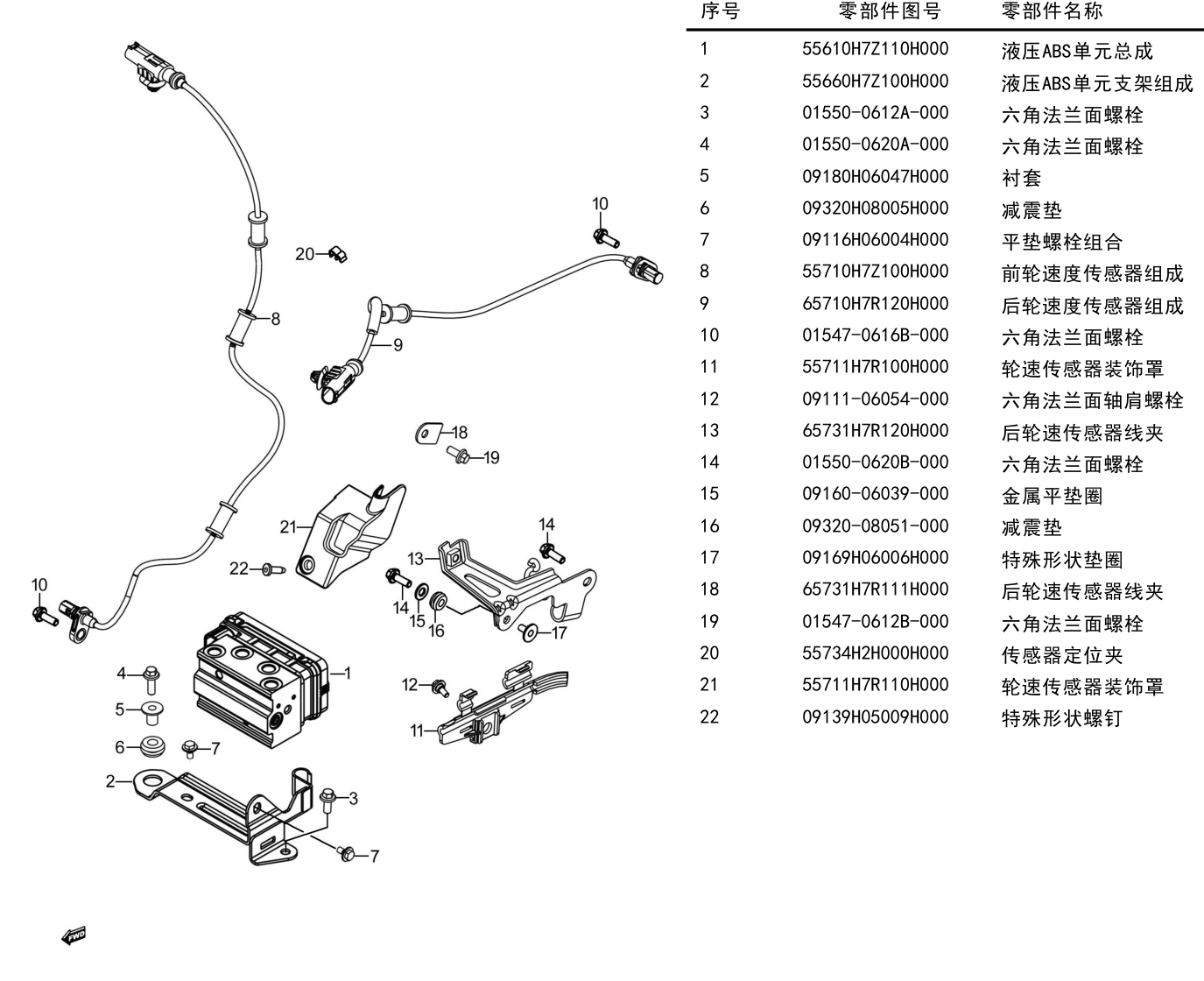

Location in exploded diagrams
Other parts on this diagram — 液压控制组
- #3 01550-0612A-000 — 六角法兰面螺栓
- #4 01550-0620A-000 — 六角法兰面螺栓
- #5 09180H06047H000 — 衬套
- #7 09116H06004H000 — 平垫螺栓组合
- #10 01547-0616B-000 — 六角法兰面螺栓
- #11 55711H7R100H000 — 轮速传感器装饰罩
- #14 01550-0620B-000 — 六角法兰面螺栓
- #15 09160-06039-000 — 金属平垫圈
- #16 09320-08051-000 — 减震垫
- #17 09169H06006H000 — 特殊形状垫圈
- #18 65731H7R111H000 — 后轮速传感器线夹
- #19 01547-0612B-000 — 六角法兰面螺栓
- #20 55734H2H000H000 — 传感器定位夹
- #21 55711H7R110H000 — 轮速传感器装饰罩
- #22 09139H05009H000 — 特殊形状螺钉
- #2 55660H7R100H000 — 液压ABS单元支架组成
- #1 55610H7R110H000 — 液压ABS单元总成
- #8 55710H7R100H000 — 前轮速度传感器组成
- #9 65710H7R100H000 — 后轮速度传感器组成
- #23 55710H7R120H000 — 前轮速度传感器组成
- #24 65710H7R120H000 — 后轮速度传感器组成
- #12 09111-06054-000 — 六角法兰面轴肩螺栓
- #13 65731H7R100H000 — 后轮速传感器线夹
