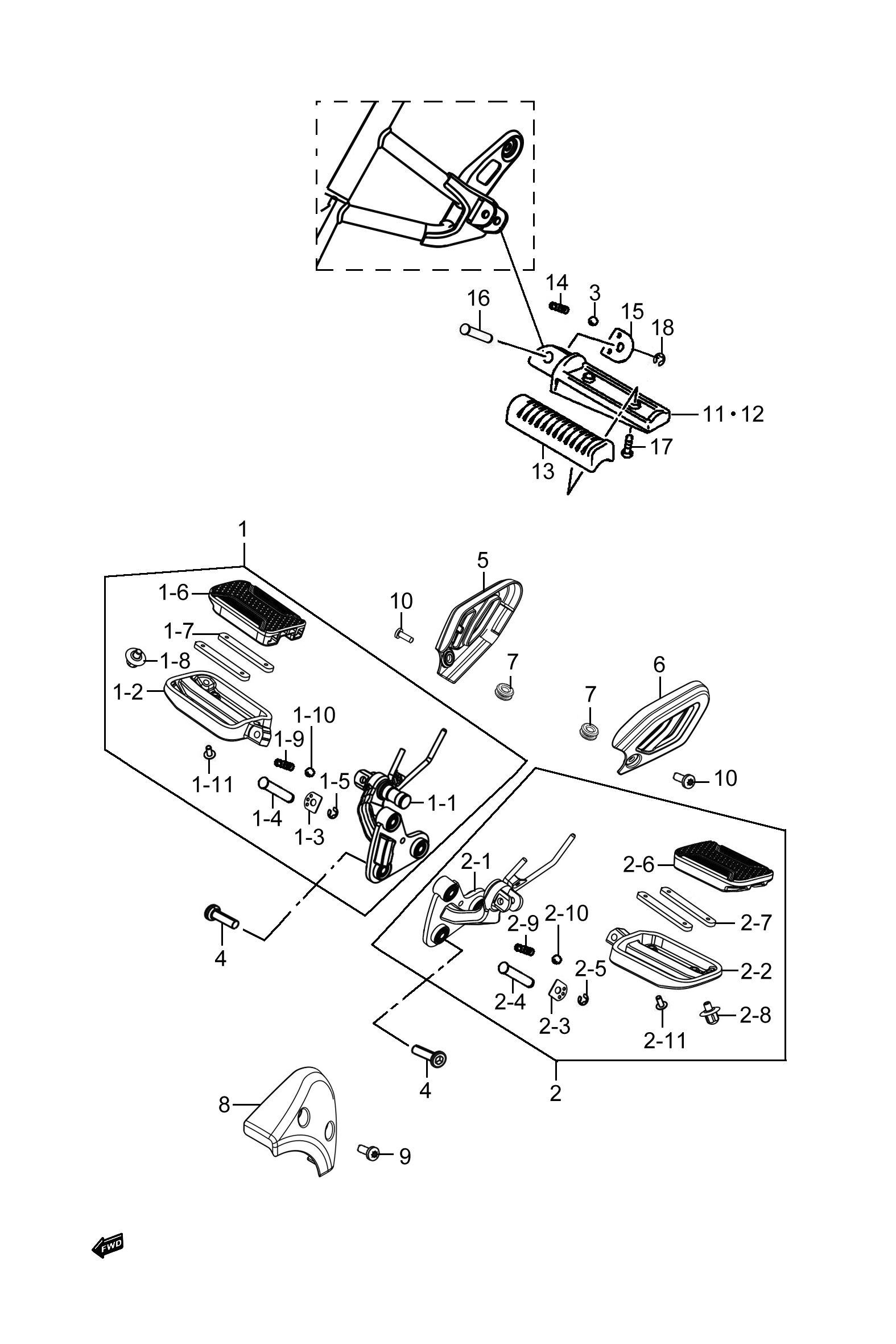

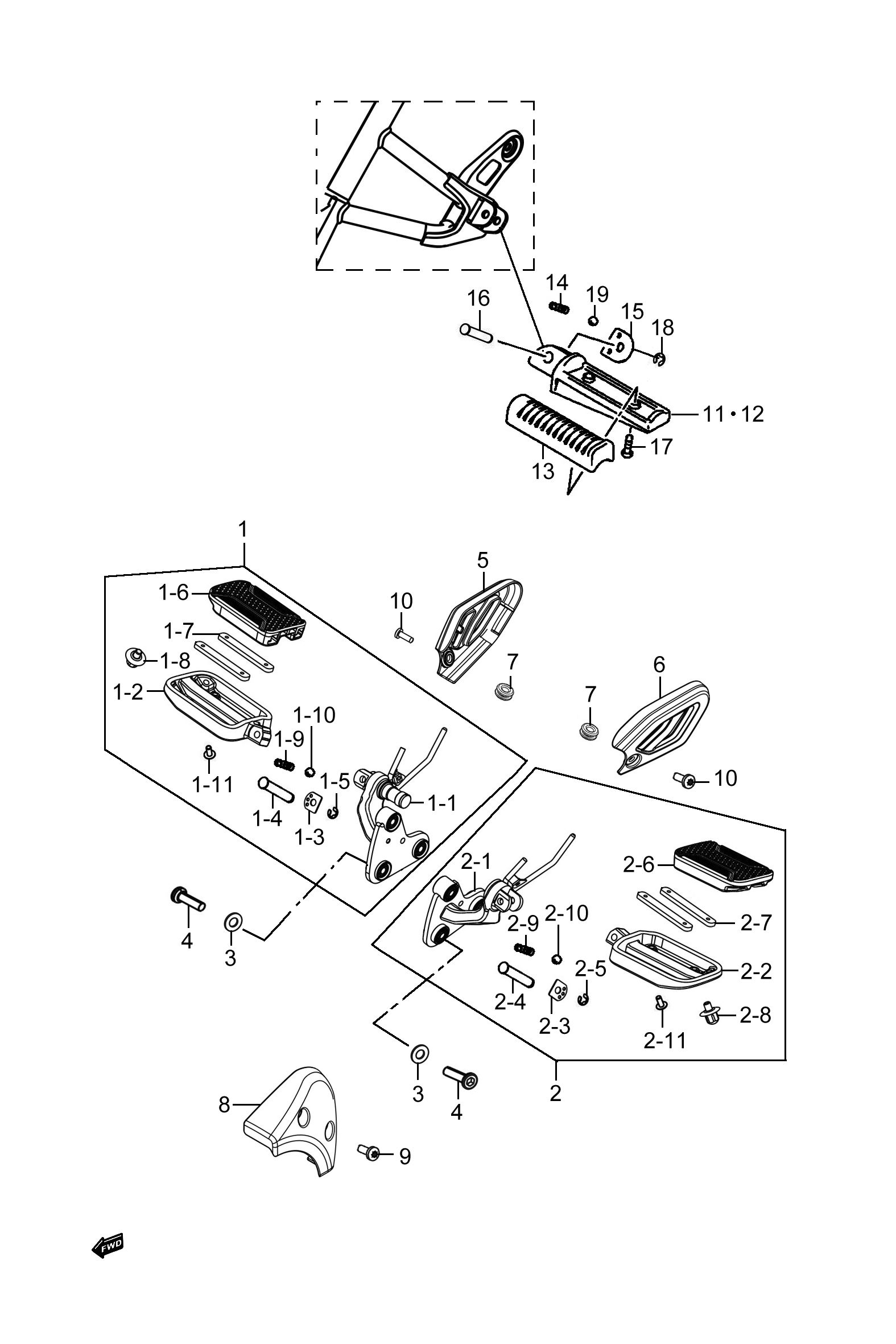

Location in exploded diagrams
Other parts on this diagram — 搁脚组
- #1 43501H3A000H000 — 前右搁脚总成
- #1-1 43510H3A003H000 — 前右搁脚支架组成
- #1-2 43571H3A000H000 — 前右脚踏板
- #1-10 06112-07004-000 — 钢球
- #1-11 02142-0514A-000 — 十字槽球头小螺钉
- #2 43502H3A000H000 — 前左搁脚总成
- #2-1 43520H3A003H000 — 前左搁脚支架组成
- #2-2 43581H3A000H000 — 前左脚踏板
- #2-3 43516H3A000H000 — 前搁脚固定板
- #2-4 09208H08003H000 — 开槽销
- #2-5 08332-1106A-000 — E形环
- #2-6 43551H3A000H000 — 前搁脚胶套
- #2-7 43535H3A000H000 — 搁脚胶套限位块
- #2-8 43576H3A000H000 — 转弯触地螺栓
- #2-9 09440-05003-000 — 定位弹簧
- #3 06111-08004-000 — 钢球
- #4 09139H08004H000 — 特殊形状螺钉
- #5 43572H3A000H000 — 前右搁脚防护罩
- #6 43582H3A000H000 — 前左搁脚防护罩
- #17 02112-0514A-000 — 十字槽盘头小螺钉
- #14 43613-45F00-000 — 弹簧
- #15 43614H3A000H000 — 搁脚限位板
- #8 43583H3A000H000 — 前左搁脚防护板
- #9 09139H06046H000 — 特殊形状螺钉
