Verified fitment — 9 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

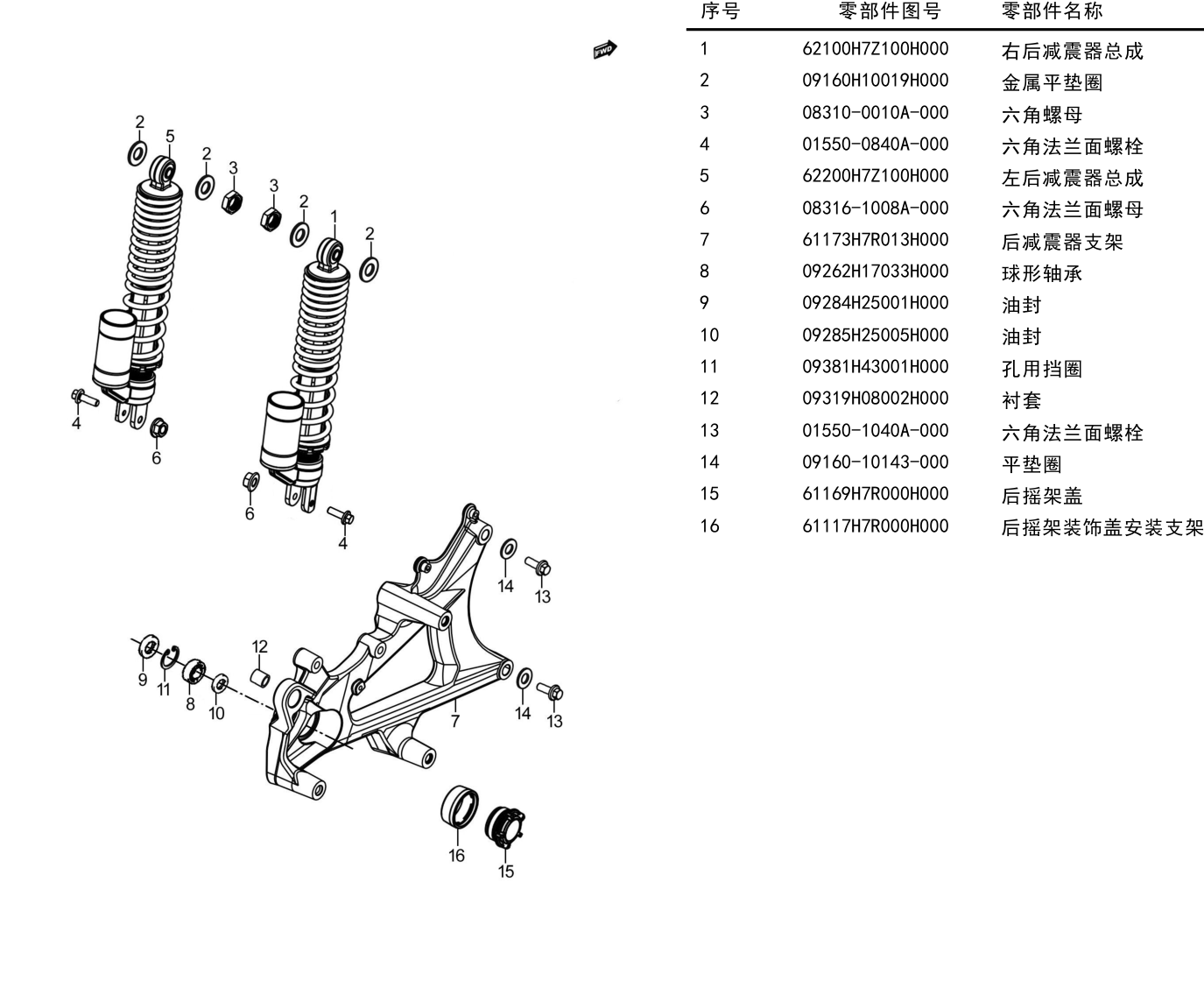

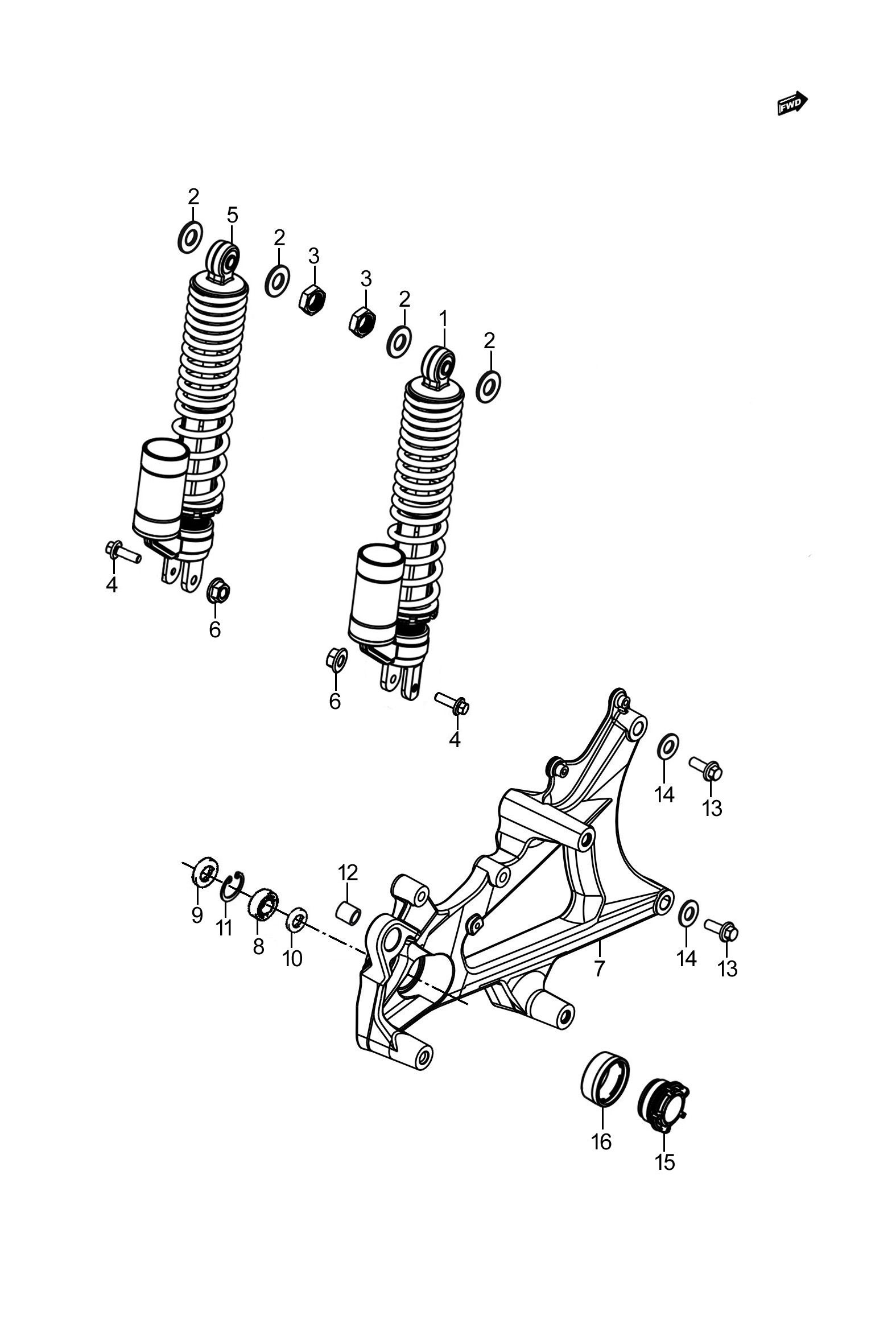

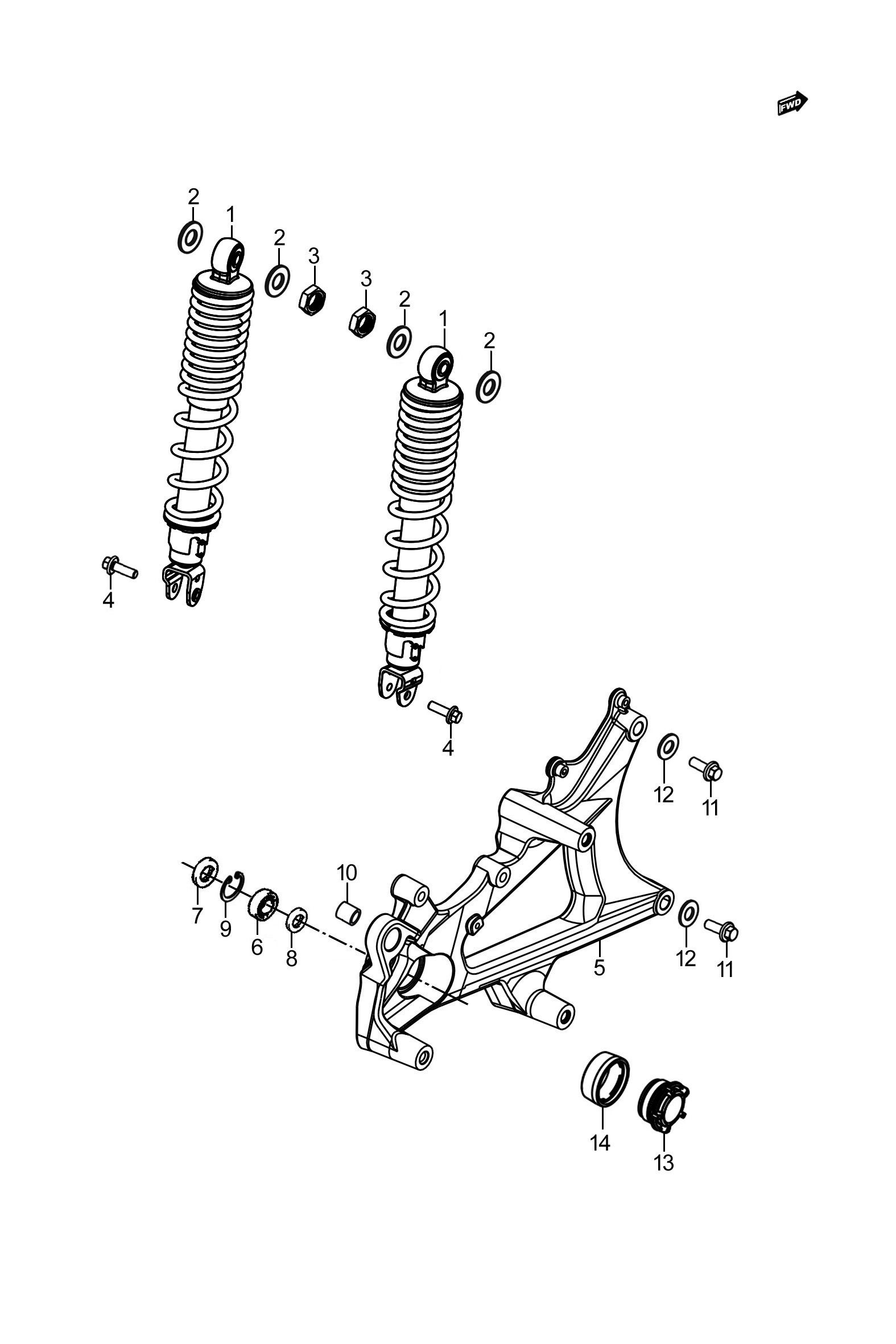

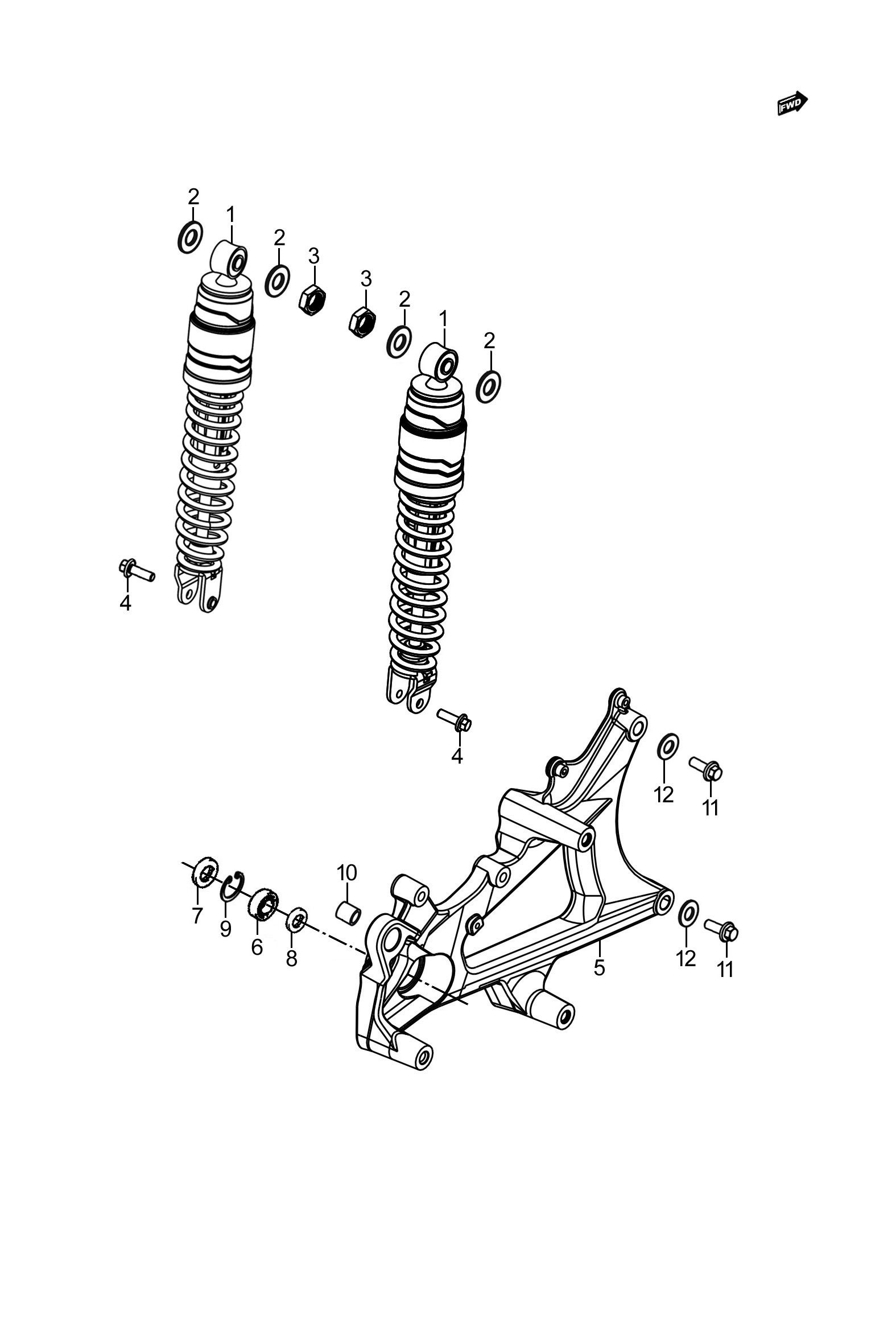

Location in exploded diagrams
Other parts on this diagram — 后减震器组
- #1 62100H7Z100H000 — 右后减震器总成
- #2 09160H10019H000 — 金属平垫圈
- #3 08310-0010A-000 — 六角螺母
- #8 09262H17033H000 — 球形轴承
- #9 09284H25001H000 — 油封
- #11 09381H43001H000 — 孔用挡圈
- #12 09319H08002H000 — 衬套
- #13 01550-1040A-000 — 六角法兰面螺栓
- #14 09160-10143-000 — 平垫圈
- #15 61169H7R000H000 — 后摇架盖
- #16 61117H7R000H000 — 后摇架装饰盖安装支架
- #4 01550-0840A-000 — 六角法兰面螺栓
- #5 62200H7Z100H000 — 左后减震器总成
- #6 08316-1008A-000 — 六角法兰面螺母
- #7 61173H7R013H000 — 后减震器支架
