Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (1)

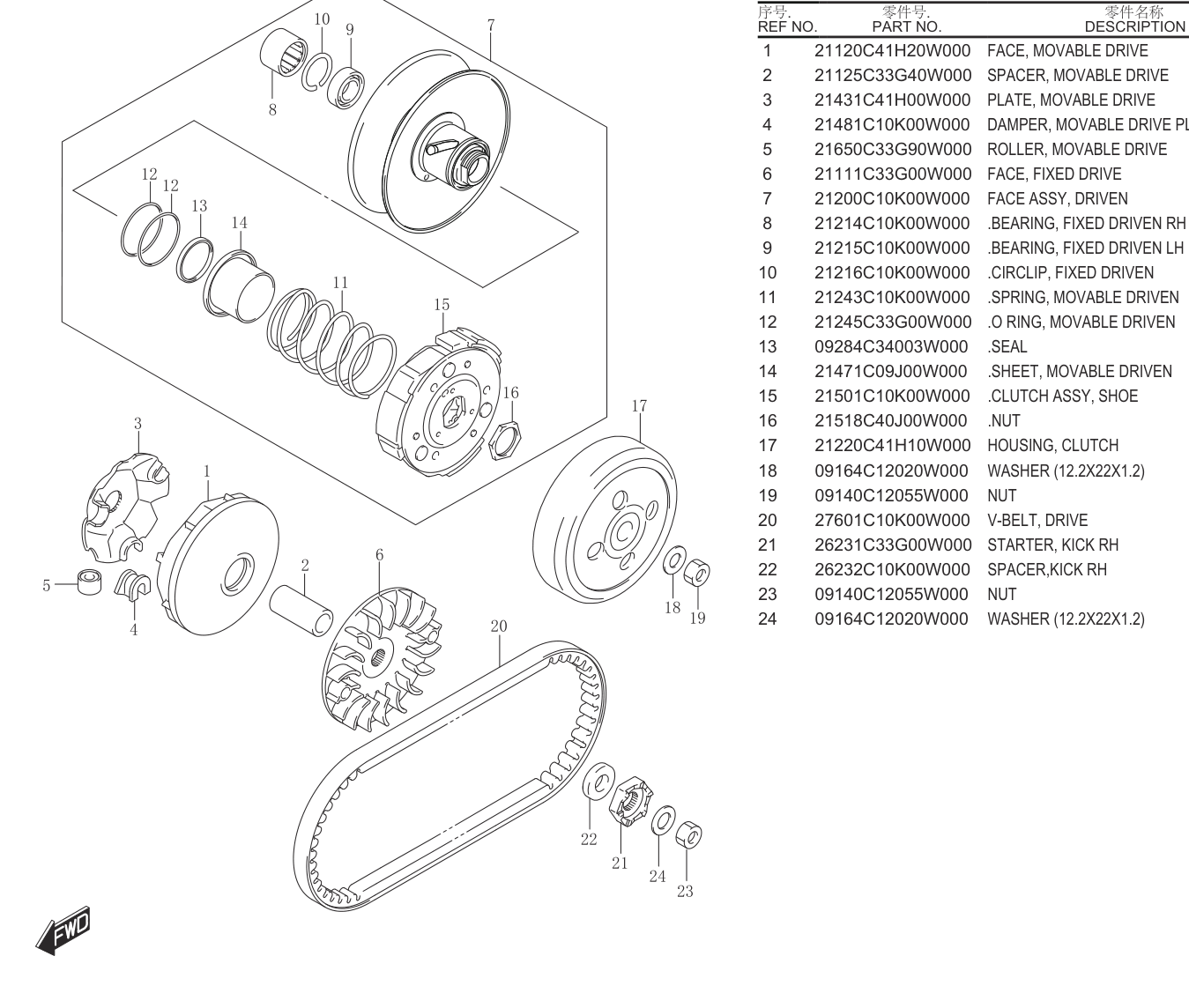

Location in exploded diagrams
Other parts on this diagram — 变速器
- #1 21120C41H20W000 — FACE, MOVABLE DRIVE
- #2 21125C33G40W000 — SPACER, MOVABLE DRIVE
- #3 21431C41H00W000 — PLATE, MOVABLE DRIVE
- #4 21481C10K00W000 — DAMPER, MOVABLE DRIVE PLATE
- #5 21650C33G90W000 — ROLLER, MOVABLE DRIVE
- #16 21518C40J00W000 — .NUT
- #17 21220C41H10W000 — HOUSING, CLUTCH
- #18 09164C12020W000 — WASHER (12.2X22X1.2)
- #19 09140C12055W000 — NUT
- #20 27601C10K00W000 — V-BELT, DRIVE
- #21 26231C33G00W000 — STARTER, KICK RH
- #22 26232C10K00W000 — SPACER,KICK RH
- #6 21111C33G00W000 — FACE, FIXED DRIVE
- #7 21200C10K00W000 — FACE ASSY, DRIVEN
- #8 21214C10K00W000 — .BEARING, FIXED DRIVEN RH
- #9 21215C10K00W000 — .BEARING, FIXED DRIVEN LH
- #10 21216C10K00W000 — .CIRCLIP, FIXED DRIVEN
- #11 21243C10K00W000 — .SPRING, MOVABLE DRIVEN
- #12 21245C33G00W000 — .O RING, MOVABLE DRIVEN
- #14 21471C09J00W000 — .SHEET, MOVABLE DRIVEN
- #15 21501C10K00W000 — .CLUTCH ASSY, SHOE
