Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (2)

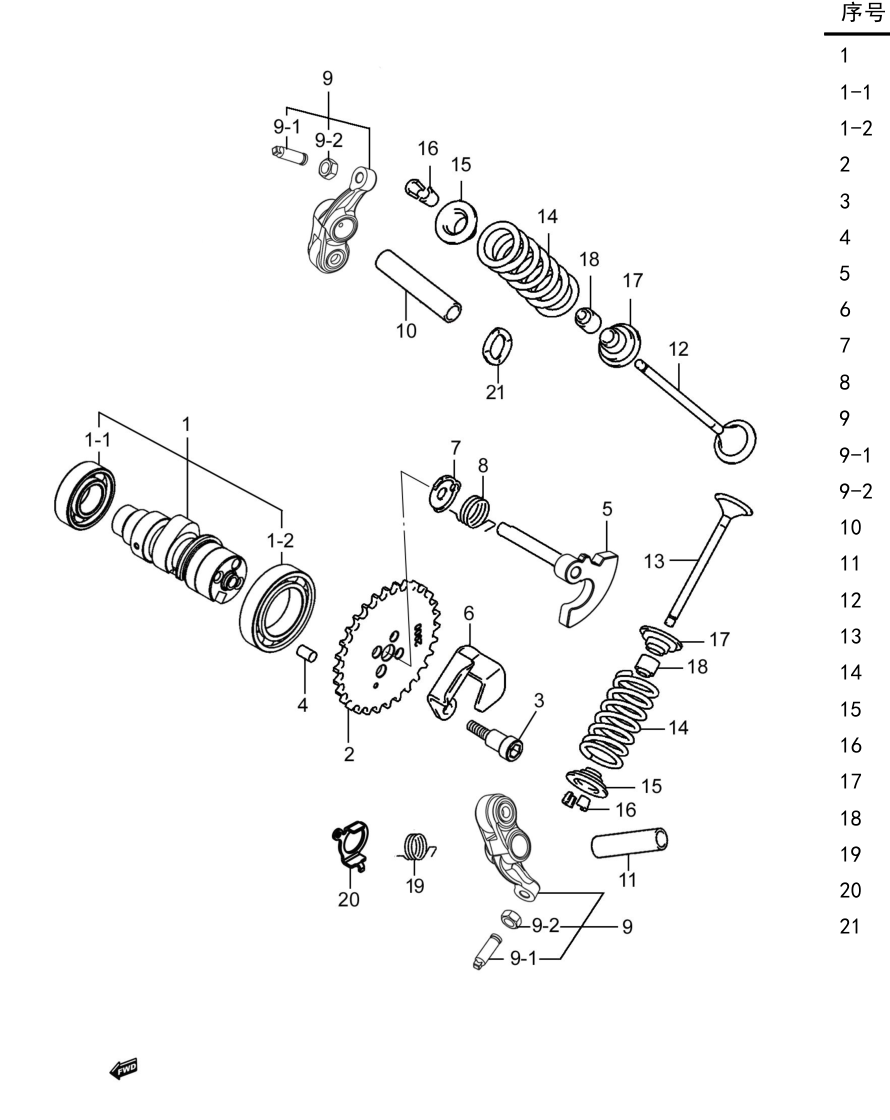

Location in exploded diagrams
Other parts on this diagram — 凸轮摇臂、气门组
- #13 12912H29000H000 — 排气阀
- #14 12921H26L00H000 — 气阀弹簧
- #15 12931H50100H000 — 气阀弹簧盘
- #1 12710H26L00H000 — 凸轮轴组成
- #1-1 09262-15L04-000 — 球形轴承
- #2 12741H29000H000 — 凸轮轴链轮
- #3 12742H29010H000 — 凸轮轴链轮螺栓
- #4 09261-05005-000 — 滚针
- #5 12950H29010H000 — 减压凸轮组成
- #6 12954-09G10-000 — 减压凸轮挡片
- #7 12955H29000H000 — 减压轴垫片
- #8 12725-20G00-000 — 减压凸轮弹簧
- #9 12840H29010H000 — 气门摇臂总成
- #9-1 12842H29000H000 — 挺杆调节螺钉
- #16 12932-36H00-000 — 气阀锁夹
- #17 12933H16200H000 — 气阀弹簧座
- #18 09289H05021H000 — 油封
- #19 09448H18003H000 — 扭转弹簧
- #9-2 12843-27A10-000 — 挺杆调节螺母
- #10 12861-33G00-000 — 摇臂轴
- #11 12871H29000H000 — 排气阀摇臂轴
- #12 12911H29020H000 — 进气阀
- #20 12848H26L00H000 — 摇臂扭簧限位板
- #21 09164-10012-000 — 波形垫圈
