Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (1)

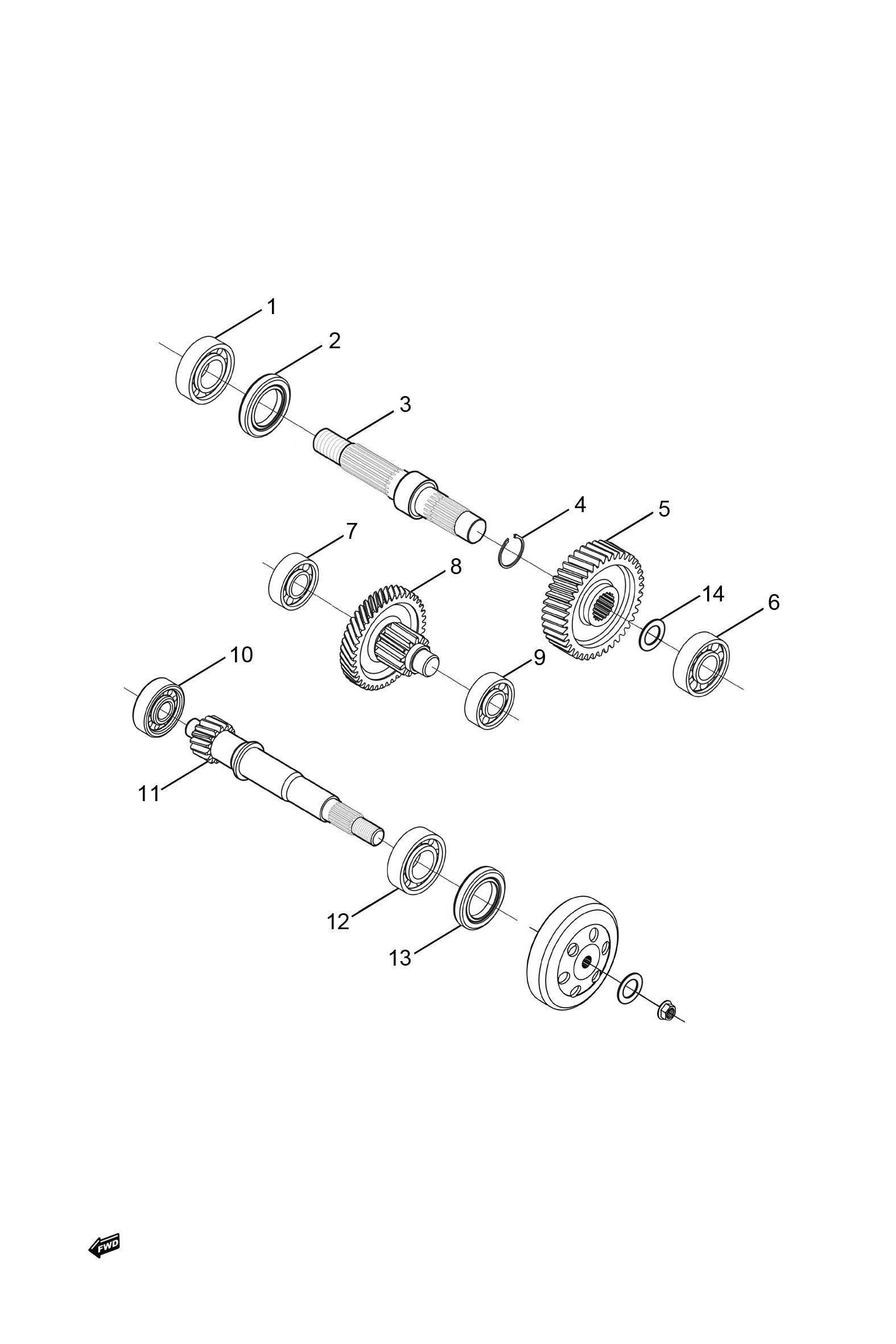

Location in exploded diagrams
Other parts on this diagram — 变速器组Ⅱ
- #2 09283H29001H000 — 油封
- #3 24141H21D30H000 — 后轮轴
- #4 08331-31229-000 — 弹性挡圈
- #5 24371H21D30H000 — 末级从动齿轮
- #6 08110-62030-000 — 滚珠轴承
- #7 08110-60020-000 — 滚珠轴承
- #8 24150H21D00H000 — 惰轮轴组成
- #9 08110-62020-000 — 滚珠轴承
- #10 09262H12003H000 — 轴承
- #11 24131H21D11H000 — 驱动轴
- #12 08113-62040-000 — 滚珠轴承
- #13 09283H20056H000 — 油封
- #14 09160H17004H000 — 平垫圈
