Verified fitment — 10 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

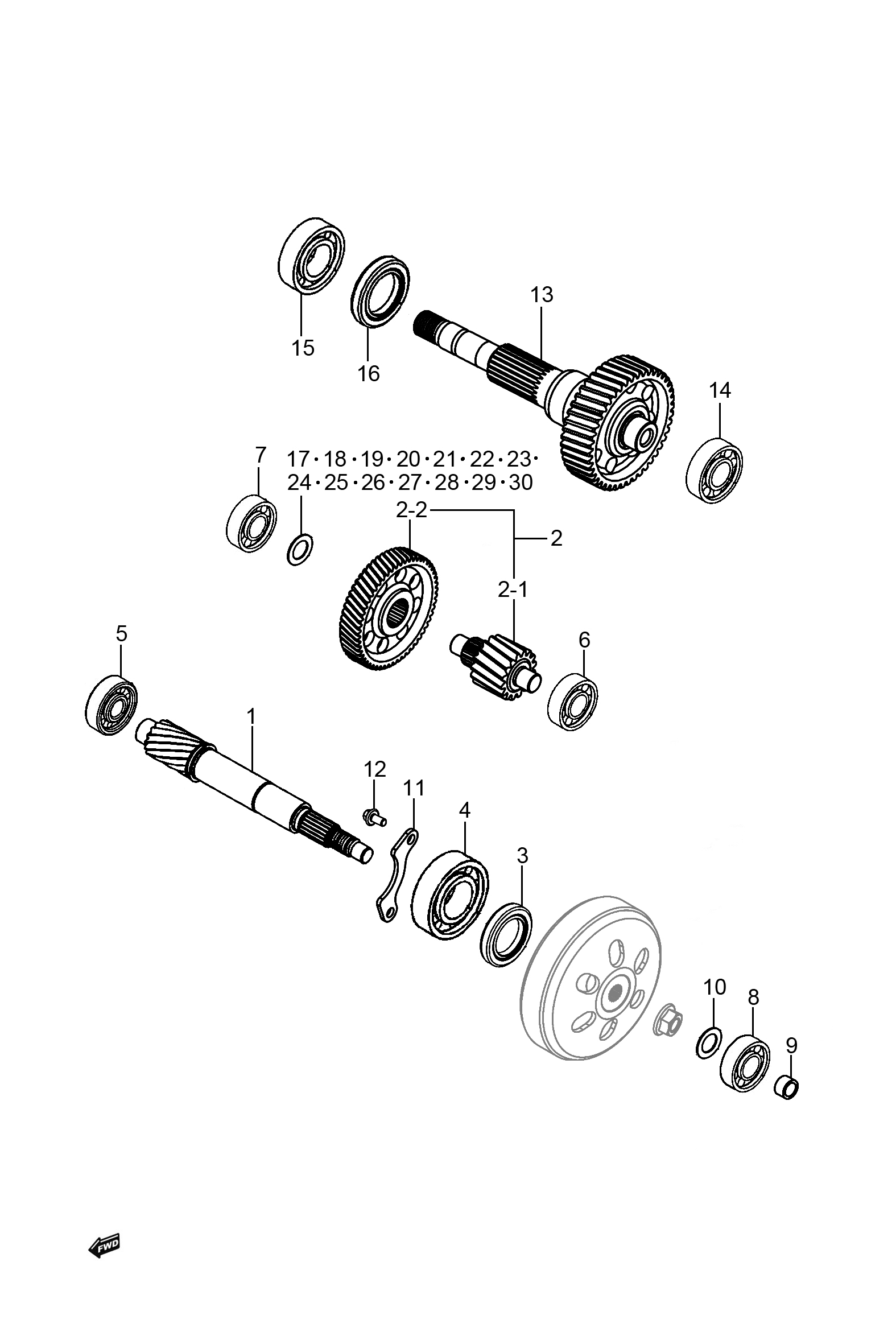

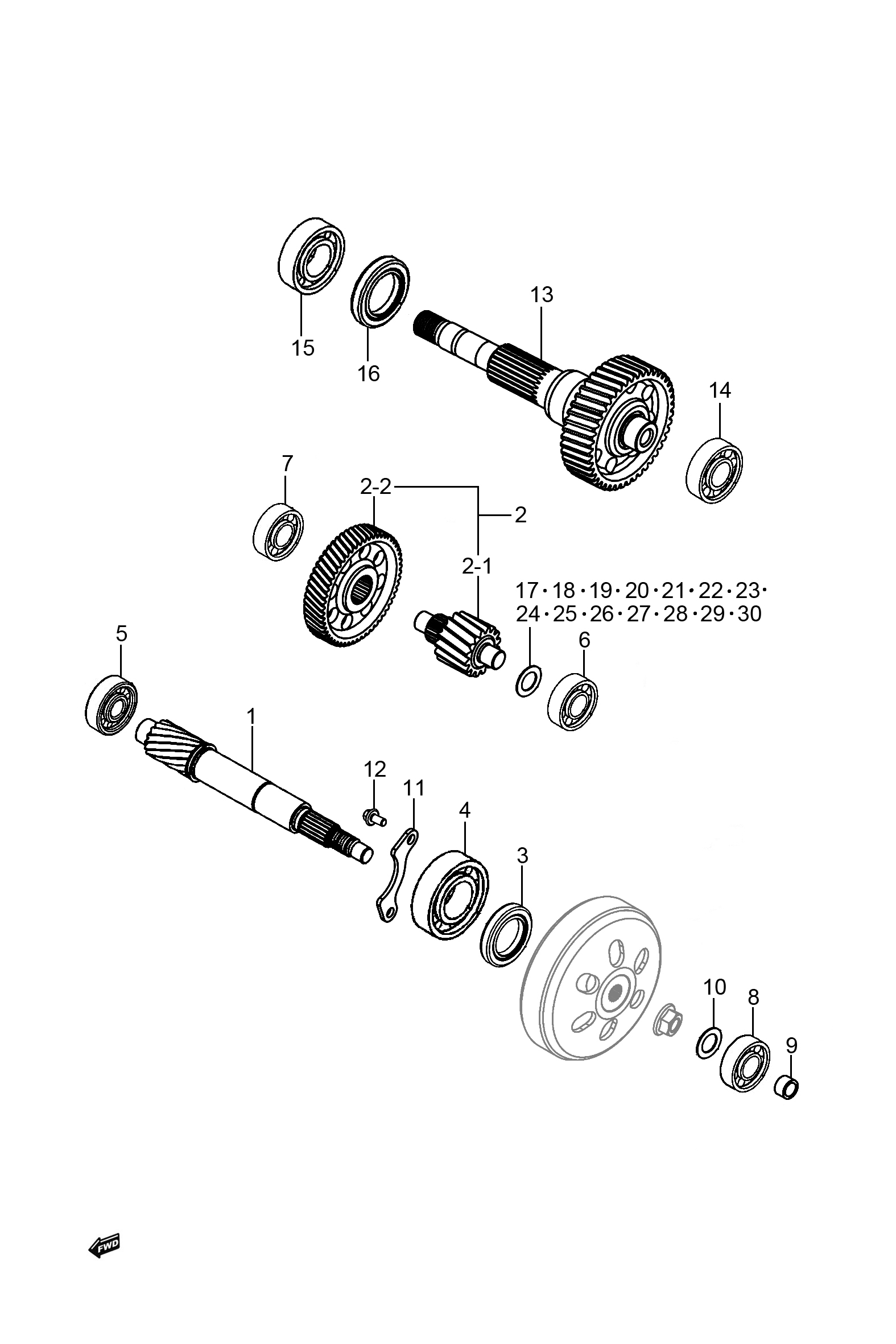

Location in exploded diagrams
Other parts on this diagram — 变速器组Ⅱ
- #2 24150H2D400H000 — 惰轮轴组合
- #2-1 24151H2D400H000 — 惰轮轴
- #2-2 24381H2D400H000 — 从动惰轮
- #3 09283H20015H000 — 油封
- #5 09262H15015H000 — 球形轴承
- #6 09262H12026H000 — 球形轴承
- #7 09262H12011H000 — 球形轴承
- #8 09262H15014H000 — 球形轴承
- #9 09300H10005H000 — 金属衬套
- #16 09283H34002H000 — 油封
- #1 24131H2D400H000 — 驱动轴
- #17 09160H12026H000 — 平垫圈
- #18 09160H12028H000 — 平垫圈
- #19 09160H12029H000 — 平垫圈
- #20 09160H12030H000 — 平垫圈
- #21 09160H12031H000 — 平垫圈
- #22 09160H12032H000 — 平垫圈
- #23 09160H12033H000 — 平垫圈
- #24 09160H12034H000 — 平垫圈
- #25 09160H12035H000 — 平垫圈
- #26 09160H12036H000 — 平垫圈
- #27 09160H12037H000 — 平垫圈
- #28 09160H12038H000 — 平垫圈
- #29 09160H12039H000 — 平垫圈
