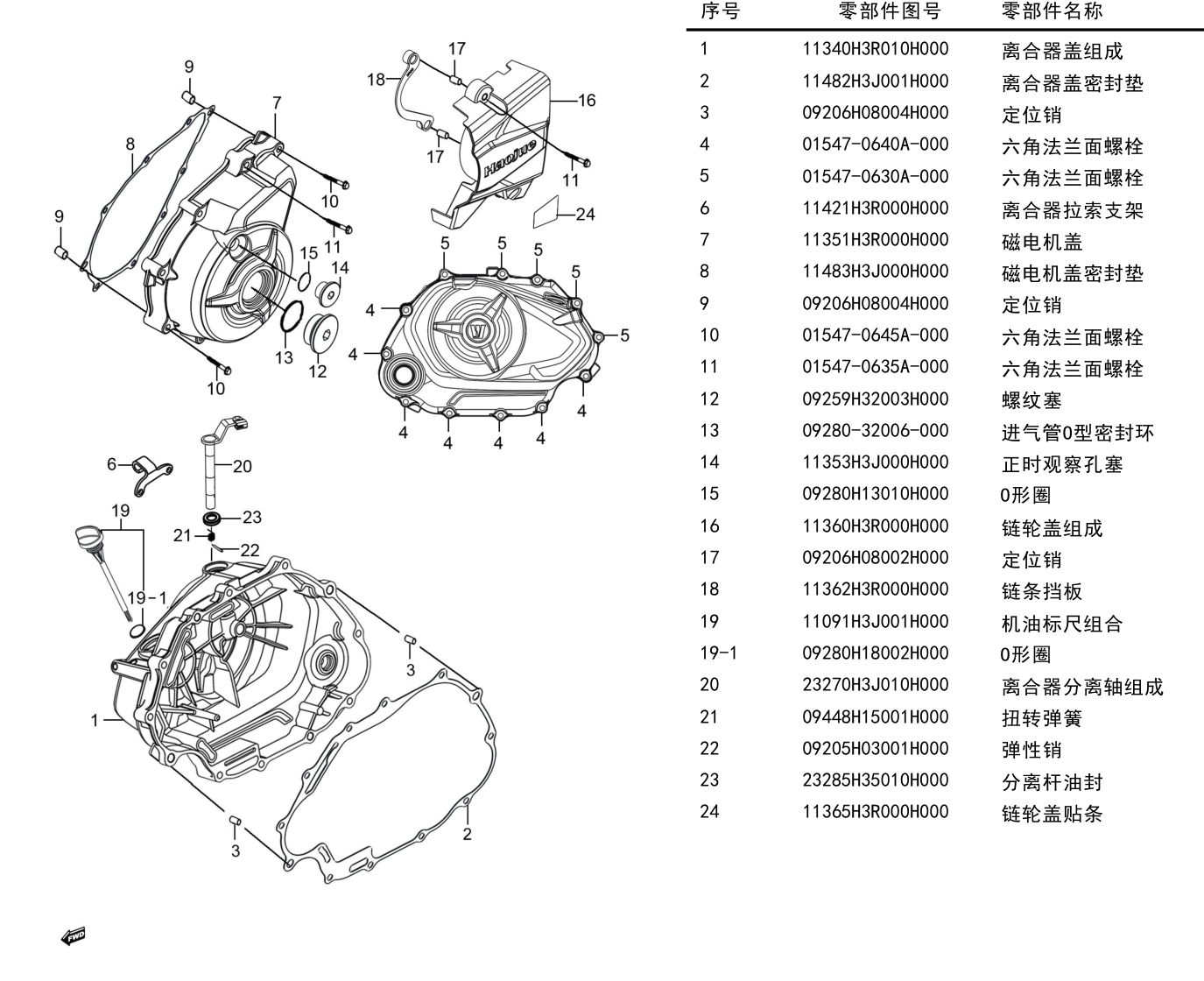

Location in exploded diagrams
Other parts on this diagram — 曲轴箱盖组
- #1 11340H3R010H000 — 离合器盖组成
- #2 11482H3J001H000 — 离合器盖密封垫
- #3 09206H08004H000 — 定位销
- #4 01547-0640A-000 — 六角法兰面螺栓
- #5 01547-0630A-000 — 六角法兰面螺栓
- #6 11421H3R000H000 — 离合器拉索支架
- #7 11351H3R000H000 — 磁电机盖
- #8 11483H3J000H000 — 磁电机盖密封垫
- #10 01547-0645A-000 — 六角法兰面螺栓
- #11 01547-0635A-000 — 六角法兰面螺栓
- #13 09280-32006-000 — 进气管O型密封环
- #14 11353H3J000H000 — 正时观察孔塞
- #15 09280H13010H000 — O形圈
- #16 11360H3R000H000 — 链轮盖组成
- #17 09206H08002H000 — 定位销
- #18 11362H3R000H000 — 链条挡板
- #19 11091H3J001H000 — 机油标尺组合
- #19-1 09280H18002H000 — O形圈
- #20 23270H3J010H000 — 离合器分离轴组成
