Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (2)
Location in exploded diagrams

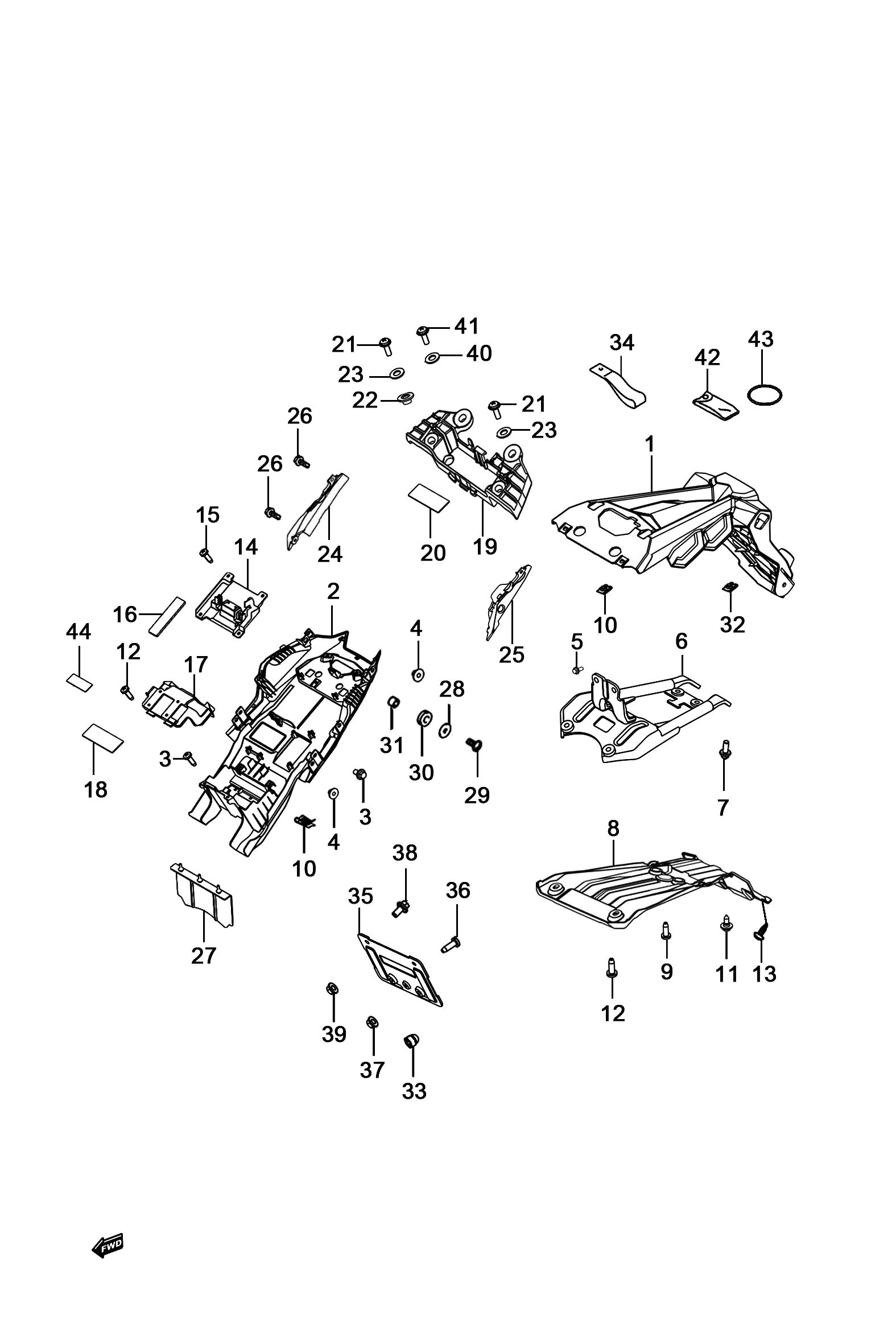

Other parts on this diagram — 后挡泥板组
- #1 63111H2H000H000 — 后挡泥板
- #2 63112H2H000H000 — 后挡泥板前部
- #5 01550-0612A-000 — 六角法兰面螺栓
- #6 63121H2H001H000 — 后挡泥板支架
- #7 01550-0616A-000 — 六角法兰面螺栓
- #8 63151H2H001H000 — 后挡泥板内衬板
- #9 09116H06004H000 — 平垫螺栓组合
- #10 09148-05077-000 — 锁片螺母
- #11 09111-06066-000 — 螺栓
- #12 03241-0516A-000 — 十字槽球头自攻钉
- #13 35151-21J00-000 — 前照灯螺钉
- #14 92311H2H000H000 — ECU盖板
- #15 03541-0516A-000 — 十字槽球头自攻钉
- #17 48125H2H001H000 — 蓄电池盒盖
- #19 47431H2H001H000 — 工具盒
- #21 09139H08004H000 — 特殊形状螺钉
- #23 09160H08018H000 — 金属平垫圈
- #24 63115H2H010H000 — 后挡泥板右装饰盖
- #25 63125H2H010H000 — 后挡泥板左装饰盖
- #26 09139H06023H000 — 特殊形状螺钉
- #27 63113H2H000H000 — 后挡泥板防尘胶皮
- #28 09160-06039-000 — 金属平垫圈
- #29 02142-0620B-000 — 十字槽小螺钉
- #30 09320H10023H000 — 减震垫
