Verified fitment — 3 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

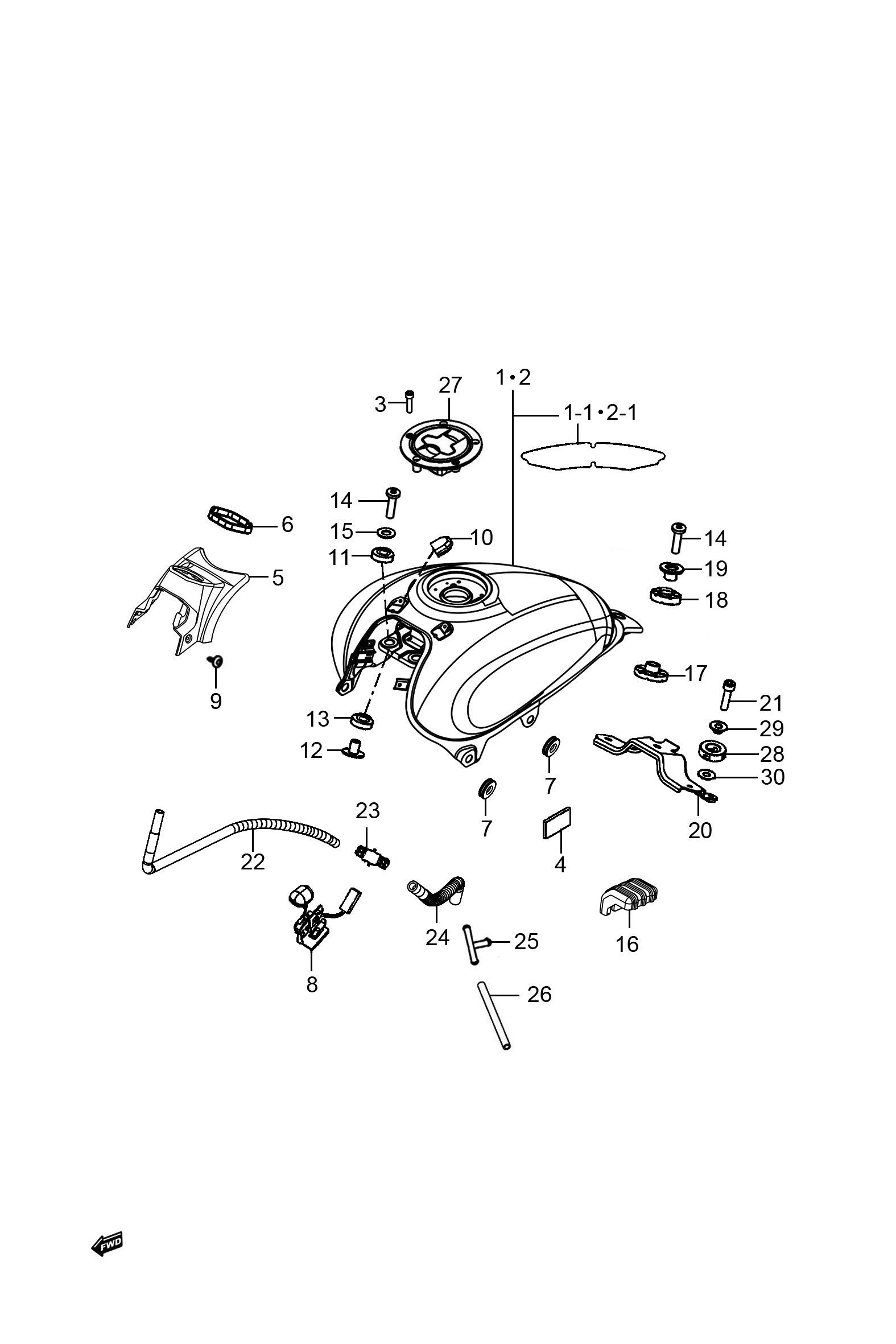

Location in exploded diagrams
Other parts on this diagram — 燃油箱组
- #1 44011H3A040HF01 — 燃油箱组合(F01星光黑V73)
- #1-1 44283H3A001H000 — 燃油箱保护贴条Ⅰ
- #2 44011H3A060HF02 — 燃油箱组合(哑光黑V74)
- #3 44211-48H00-000 — 燃油箱盖螺栓
- #4 44256H12910H000 — 隔垫
- #5 44196H3A000H000 — 主开关锁装饰盖
- #6 37187H2H000H000 — 点火开关护套
- #7 09320-08513-000 — 减震垫
- #8 34810H3A000H000 — 油量传感器总成
- #9 09139H05012H000 — 特殊形状螺钉
- #10 62478H37200H000 — 胶套
- #11 44511H2J001H000 — 燃油箱前下减震垫
- #12 44512-20K00-000 — 燃油箱前衬套
- #13 44515H2J000H000 — 燃油箱前上减震垫
- #14 44513-48H10-000 — 螺栓
- #15 44262-20K00-000 — 燃油箱前安装垫圈
- #16 44541H3A000H000 — 燃油箱侧减震垫
- #17 44542H3A001H000 — 燃油箱后下减震垫
- #18 44511-20K01-000 — 燃油箱前下减震垫
- #20 44151H3A002H000 — 燃油箱后安装板
- #21 07130-0825A-000 — 内六角螺栓
- #22 44423H3C100H000 — 燃油箱溢流管Ⅰ
- #23 09367H07001H000 — 软管接头
- #24 44424H3A000H000 — 燃油箱溢流管Ⅲ
