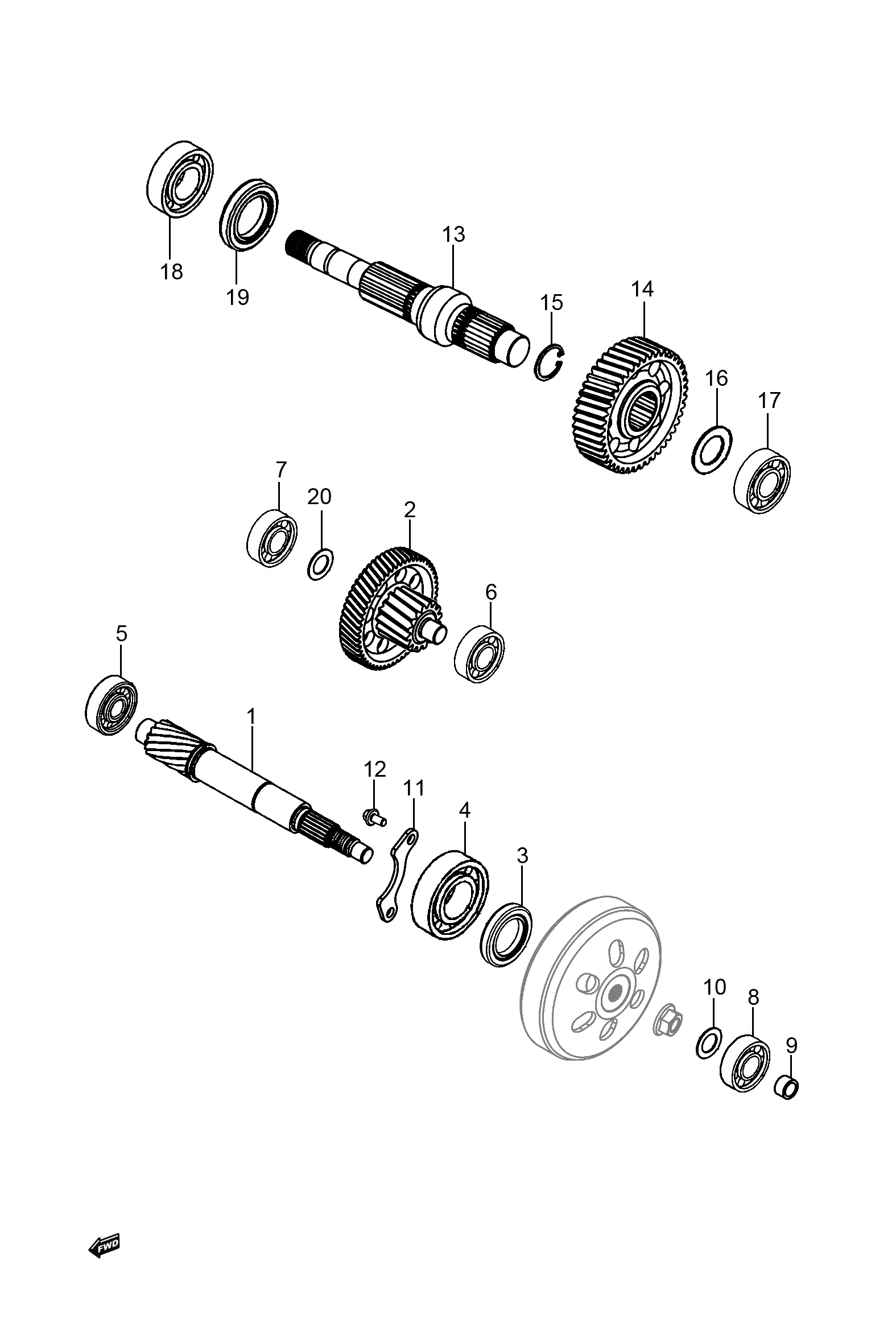

Location in exploded diagrams
Other parts on this diagram — 变速器组Ⅱ
- #1 24131H2D400H000 — 驱动轴
- #2 24150H2D410H000 — 惰轮轴组成
- #3 09283H20016H000 — 油封
- #4 09262H20025H000 — 球形轴承
- #5 09262H15039H000 — 球形轴承
- #6 09262H12028H000 — 球形轴承
- #7 09262H12029H000 — 球形轴承
- #8 09262H15036H000 — 球形轴承
- #9 09300H10005H000 — 金属衬套
- #10 08331-41329-000 — 弹性挡圈
- #11 24741H2D400H000 — 副轴轴承挡板
- #13 24141H2D410H000 — 后轮轴
- #14 24371H2D410H000 — 末级从动齿轮
- #15 08331-31259-000 — 弹性挡圈
- #17 09262H20020H000 — 球形轴承
- #18 09262H25014H000 — 球形轴承
- #19 09283H34005H000 — 油封
- #20 09160H12026H000 — 平垫圈
- #12 09103H06020H000 — 六角法兰面螺栓
