Verified fitment — 7 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

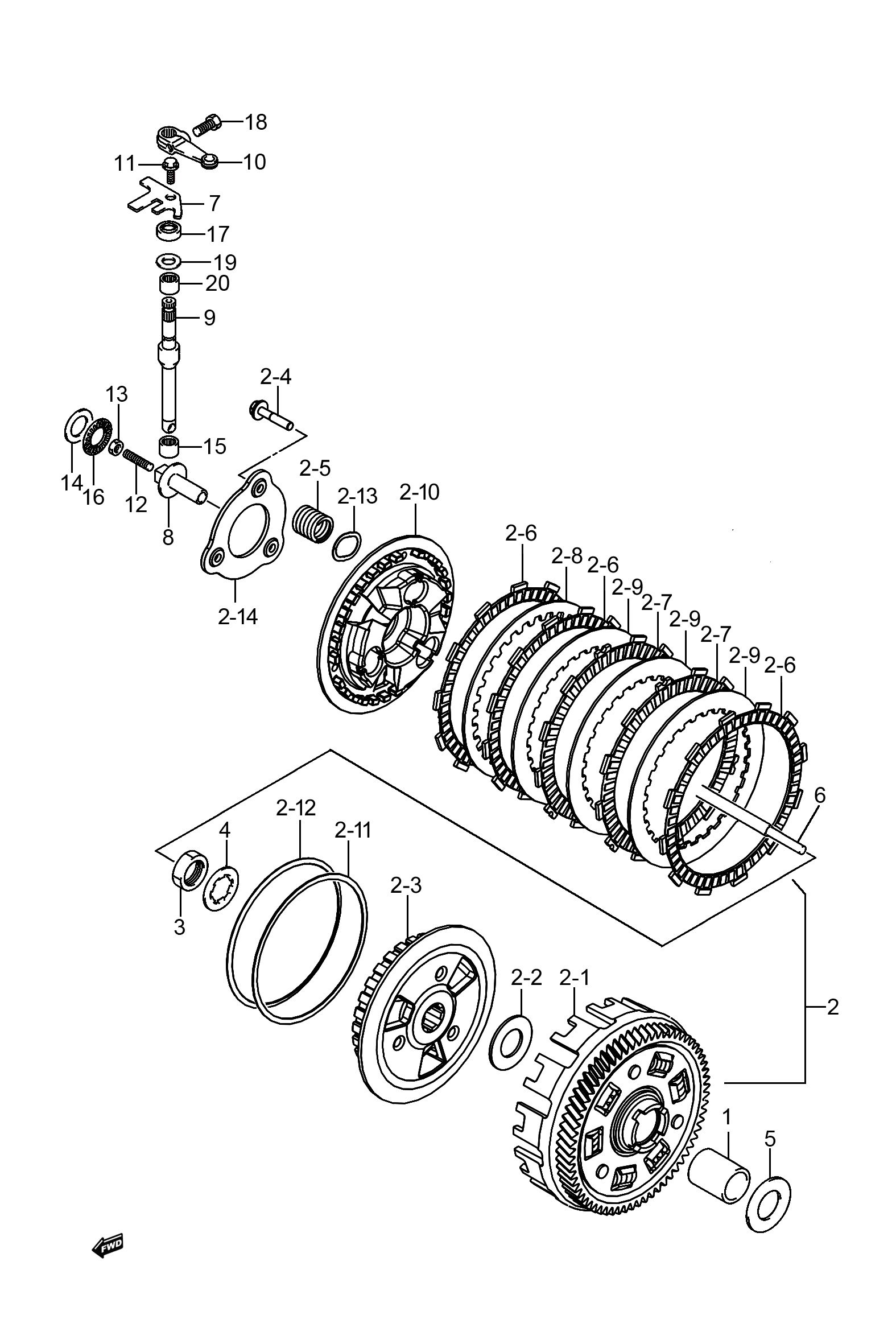

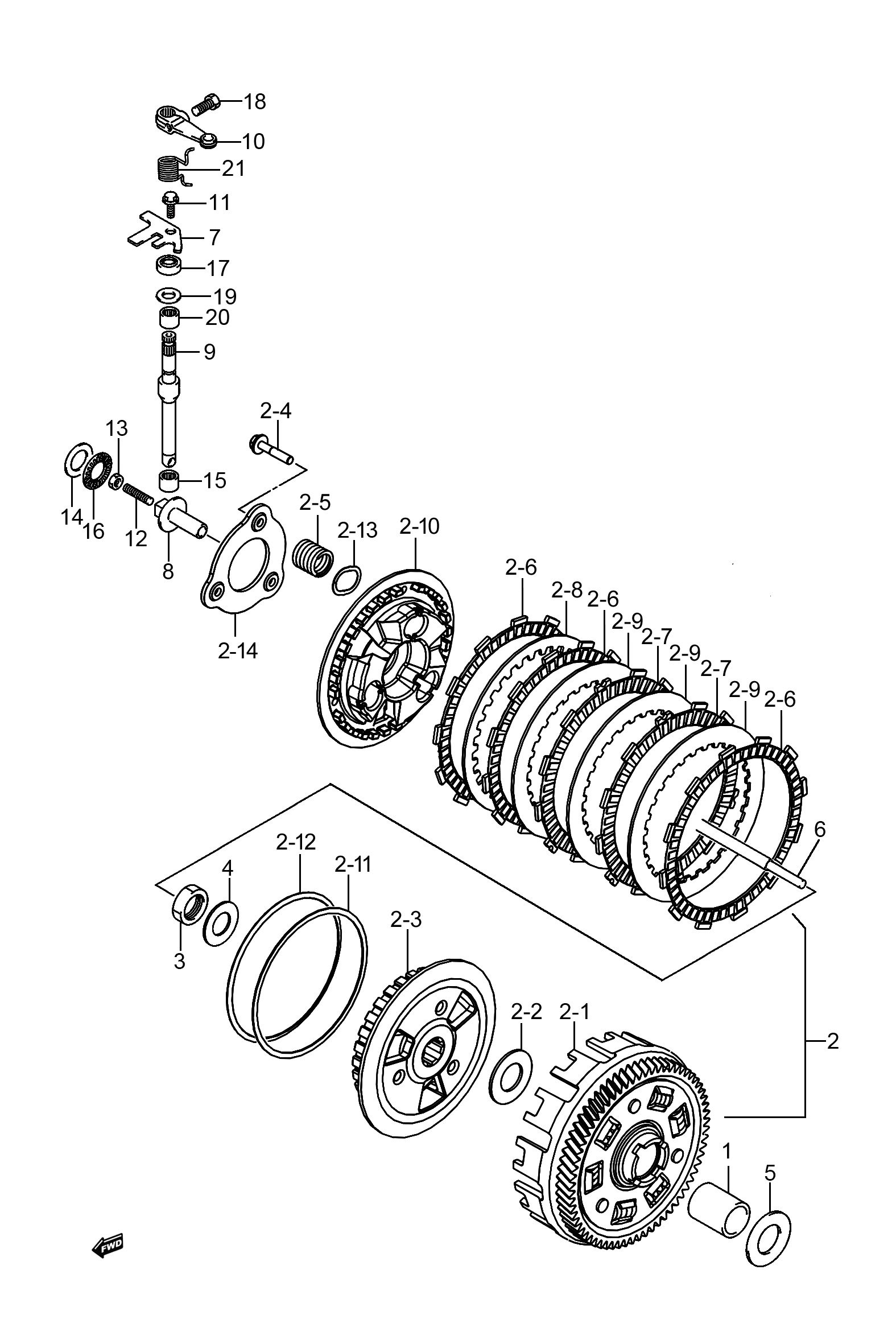

Location in exploded diagrams
Other parts on this diagram — 离合器组
- #1 21251H48H00H000 — 初级从动齿轮衬套
- #2 21400H53020H000 — 变挡离合器总成
- #2-1 21200H53020H000 — 初级从动齿轮总成
- #2-2 21252-48H00-000 — 止推垫圈
- #2-3 21411H53020H000 — 离合器从动毂
- #2-10 21462H53020H000 — 离合器压盘
- #2-11 21471H53020H000 — 波形垫片座
- #2-12 21472H53020H000 — 离合器从动片波形垫圈
- #2-13 21473H53020H000 — 离合器弹簧座圈
- #2-14 21474H53020H000 — 挡板
- #3 09140H16001H000 — 六角螺母
- #5 08211-22363-000 — 止推垫圈
- #6 23110-48H00-000 — 离合器推杆组成
- #7 23117-48H00-000 — 离合器分离油封挡圈
- #8 23121-48H00-000 — 离合器推动块
- #9 23122-48H10-000 — 离合器分离凸轮轴
- #10 23271-48H00-000 — 离合器分离臂
- #12 09134-06018-000 — 紧定螺钉
- #13 09140-06023-000 — 六角螺母
- #14 09160-15045-000 — 金属平垫圈
- #15 09263-10023-000 — 滚针轴承
- #16 09263-15L01-000 — 滚针轴承
- #17 09285-10L01-000 — 油封
- #18 01500-0616A-000 — 六角头螺栓
