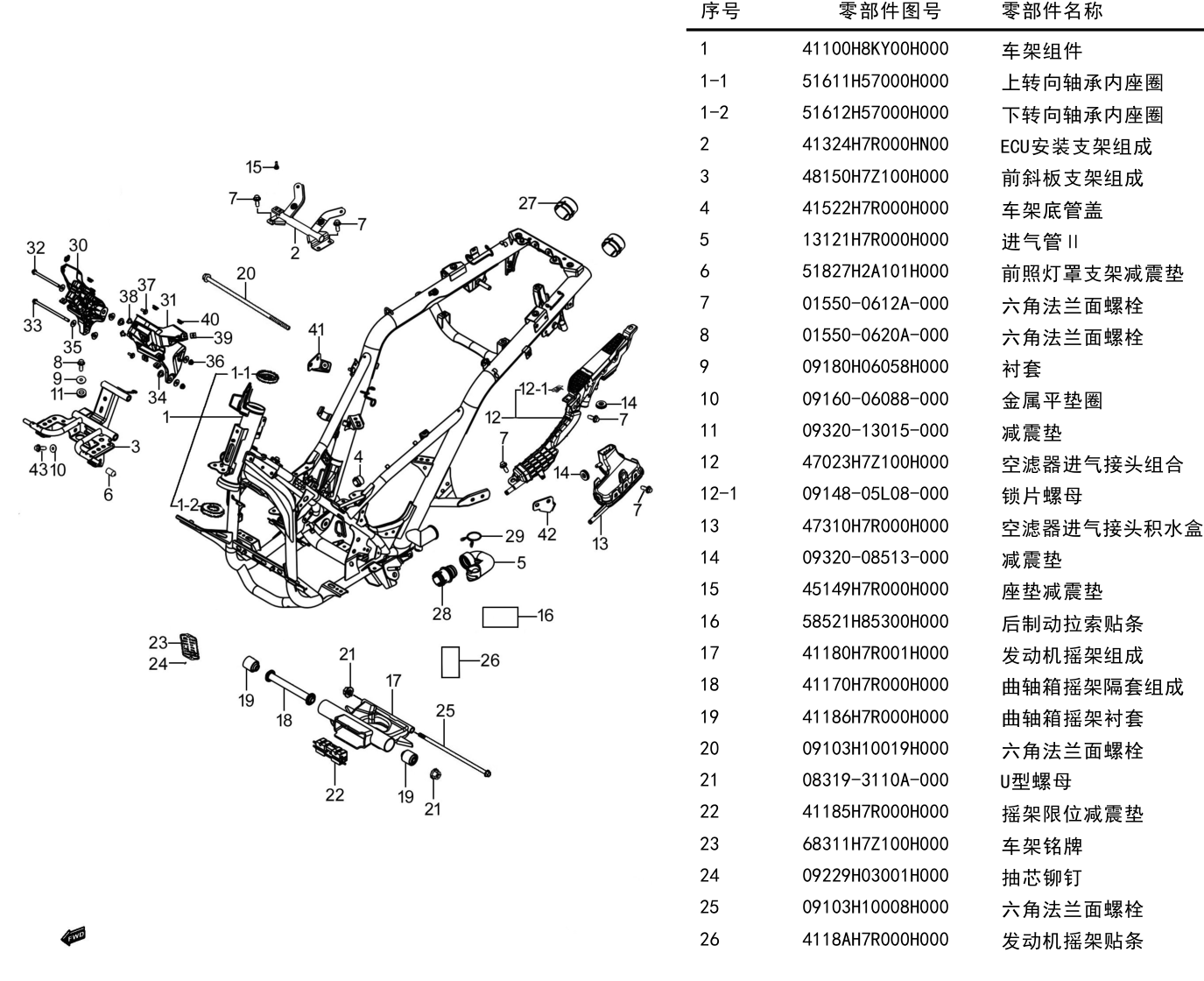

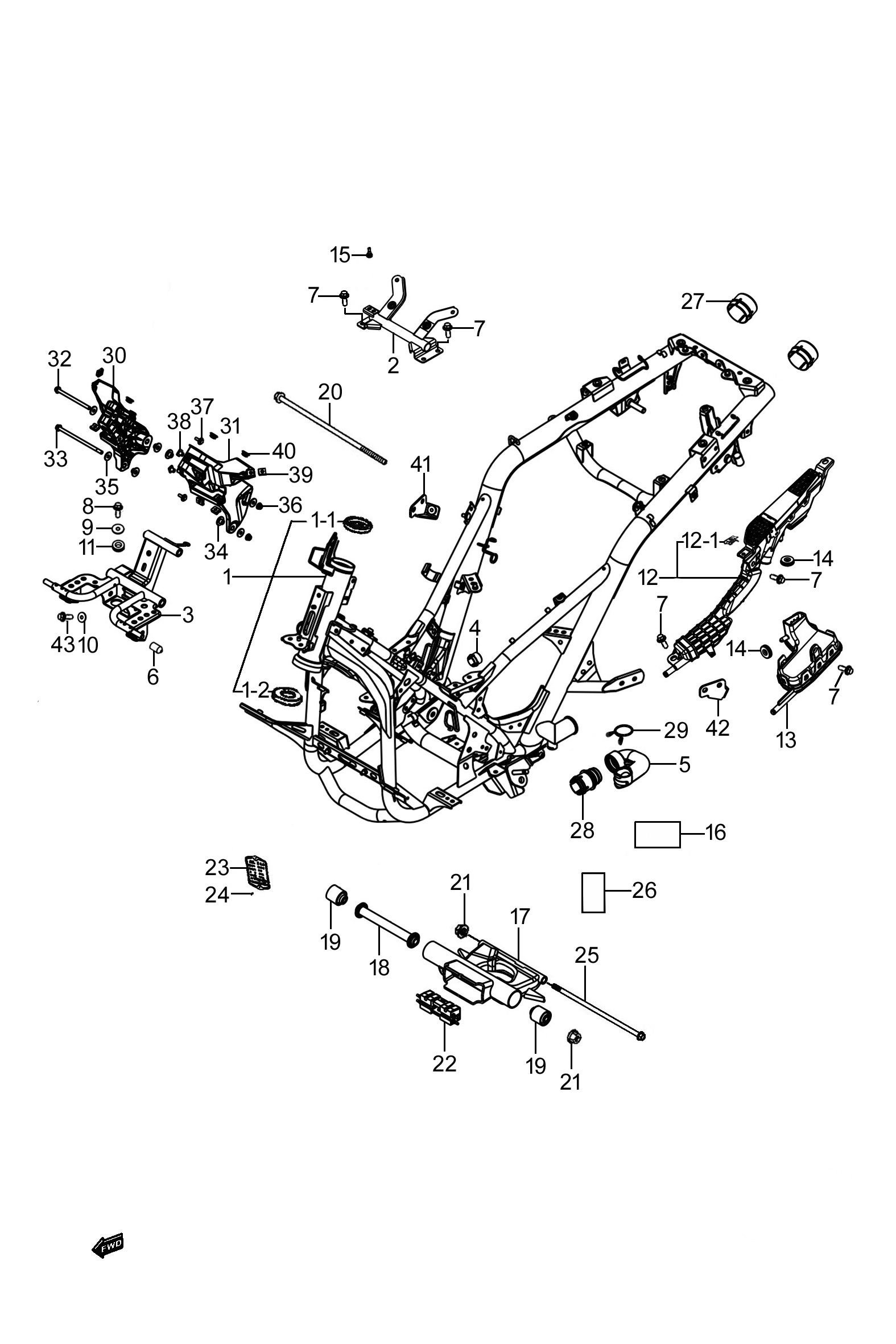

Location in exploded diagrams
Other parts on this diagram — 车架组
- #1 41100H8KY00H000 — 车架组件
- #1-1 51611H57000H000 — 上转向轴承内座圈
- #1-2 51612H57000H000 — 下转向轴承内座圈
- #2 41324H7R000HN00 — ECU安装支架组成
- #3 48150H7Z100H000 — 前斜板支架组成
- #4 41522H7R000H000 — 车架底管盖
- #5 13121H7R000H000 — 进气管Ⅱ
- #6 51827H2A101H000 — 前照灯罩支架减震垫
- #7 01550-0612A-000 — 六角法兰面螺栓
- #8 01550-0620A-000 — 六角法兰面螺栓
- #9 09180H06058H000 — 衬套
- #10 09160-06088-000 — 金属平垫圈
- #11 09320-13015-000 — 减震垫
- #12-1 09148-05L08-000 — 锁片螺母
- #13 47310H7R000H000 — 空滤器进气接头积水盒组成
- #14 09320-08513-000 — 减震垫
- #15 45149H7R000H000 — 座垫减震垫
- #17 41180H7R001H000 — 发动机摇架组成
- #18 41170H7R000H000 — 曲轴箱摇架隔套组成
- #19 41186H7R000H000 — 曲轴箱摇架衬套
- #20 09103H10019H000 — 六角法兰面螺栓
- #21 08319-3110A-000 — U型螺母
- #22 41185H7R000H000 — 摇架限位减震垫
- #23 68311H7Z100H000 — 车架铭牌
