Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (1)

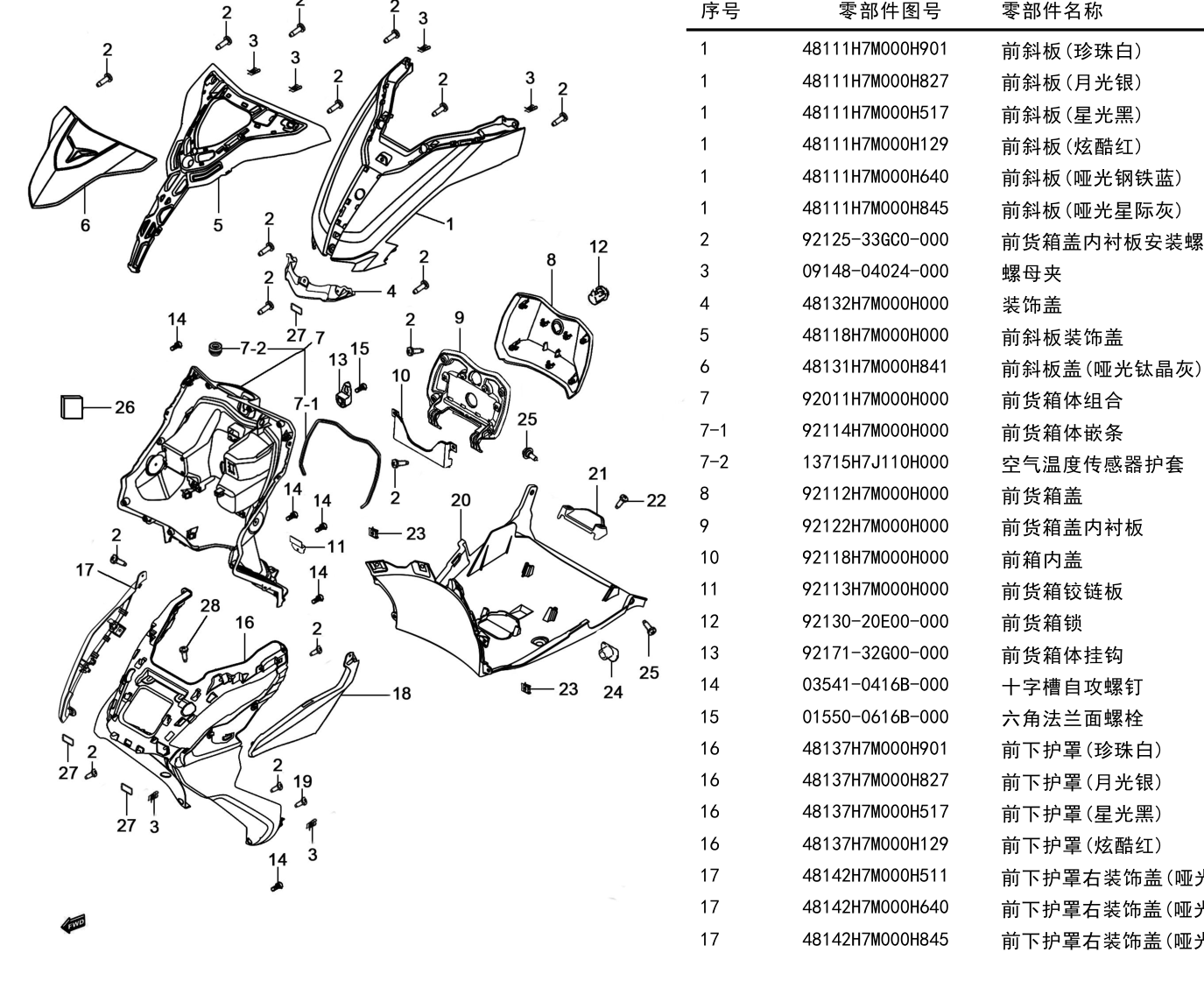

Location in exploded diagrams
Other parts on this diagram — 护罩组
- #1 48111H7M000H901 — 前斜板(珍珠白)
- #1 48111H7M000H827 — 前斜板(月光银)
- #1 48111H7M000H517 — 前斜板(星光黑)
- #1 48111H7M000H129 — 前斜板(炫酷红)
- #1 48111H7M000H640 — 前斜板(哑光钢铁蓝)
- #1 48111H7M000H845 — 前斜板(哑光星际灰)
- #2 92125-33GC0-000 — 前货箱盖内衬板安装螺钉
- #3 09148-04024-000 — 螺母夹
- #4 48132H7M000H000 — 装饰盖
- #5 48118H7M000H000 — 前斜板装饰盖
- #6 48131H7M000H841 — 前斜板盖(哑光钛晶灰)
- #7 92011H7M000H000 — 前货箱体组合
- #7-1 92114H7M000H000 — 前货箱体嵌条
- #7-2 13715H7J110H000 — 空气温度传感器护套
- #8 92112H7M000H000 — 前货箱盖
- #9 92122H7M000H000 — 前货箱盖内衬板
- #10 92118H7M000H000 — 前箱内盖
- #11 92113H7M000H000 — 前货箱铰链板
- #12 92130-20E00-000 — 前货箱锁
- #13 92171-32G00-000 — 前货箱体挂钩
- #14 03541-0416B-000 — 十字槽自攻螺钉
- #15 01550-0616B-000 — 六角法兰面螺栓
- #16 48137H7M000H901 — 前下护罩(珍珠白)
- #16 48137H7M000H827 — 前下护罩(月光银)
