Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (2)
Location in exploded diagrams

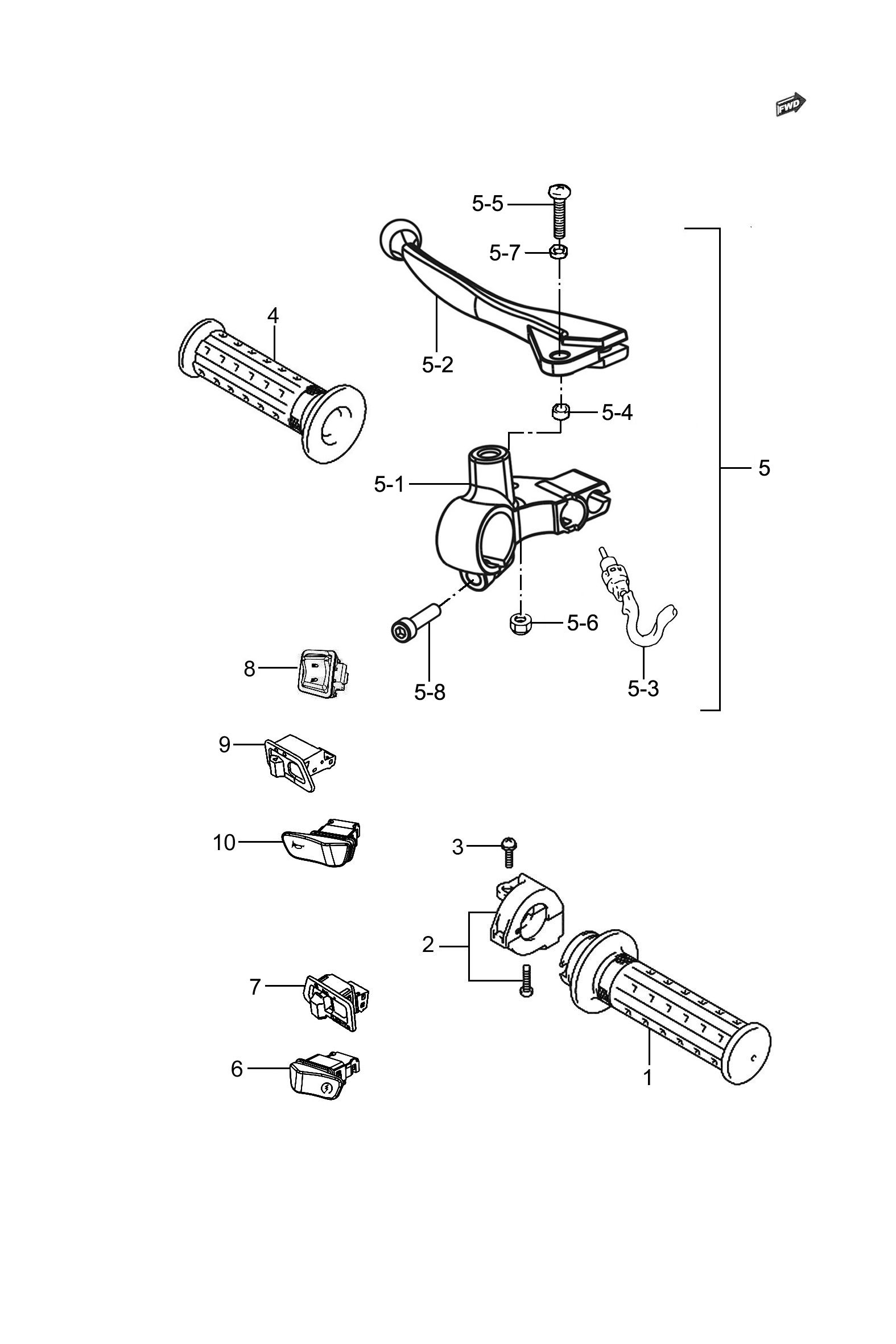

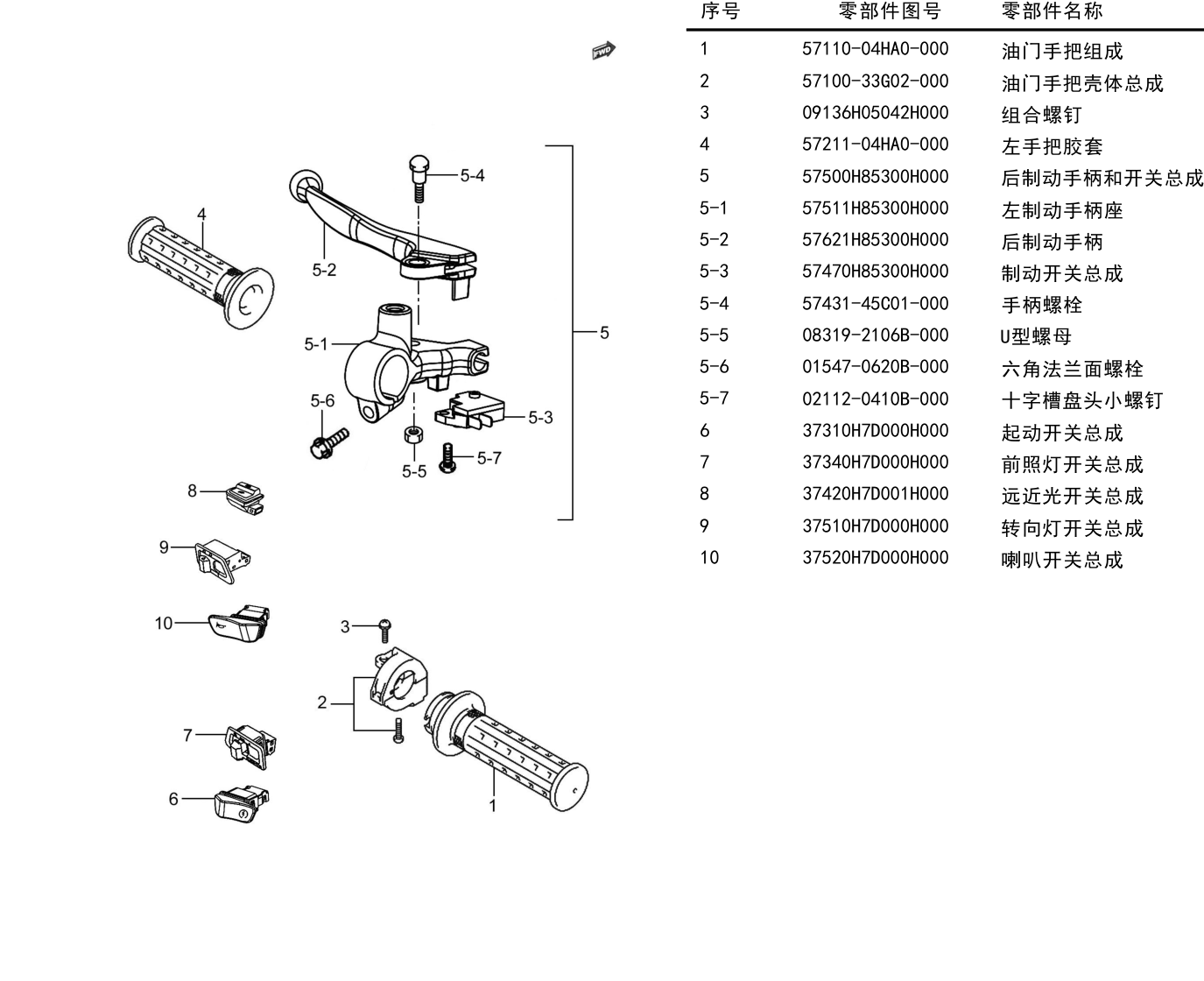

Other parts on this diagram — 手把开关组
- #1 57110-04HA0-000 — 油门手把组成
- #2 57100-33G02-000 — 油门手把壳体总成
- #4 57211-04HA0-000 — 左手把胶套
- #5 57500H85130H000 — 后制动手柄和开关总成
- #5-1 57511H85100H000 — 手柄座
- #5-2 57621H85130H000 — 后制动手柄
- #5-3 57470-20E00-000 — 制动开关
- #5-4 57435-12900-000 — 衬套
- #5-5 02112-0530A-000 — 十字槽盘头小螺钉
- #5-6 08319-2105A-000 — U型螺母
- #5-7 57336-09D00-000 — 套圈
- #5-8 07130-0620A-000 — 内六角螺栓
- #6 37310H7D001H000 — 起动开关总成
- #7 37340H7D000H000 — 前照灯开关总成
- #8 37420H8E000H000 — 远近光开关总成
- #9 37510H7D000H000 — 转向灯开关总成
- #10 37520H7D001H000 — 喇叭开关总成
