Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

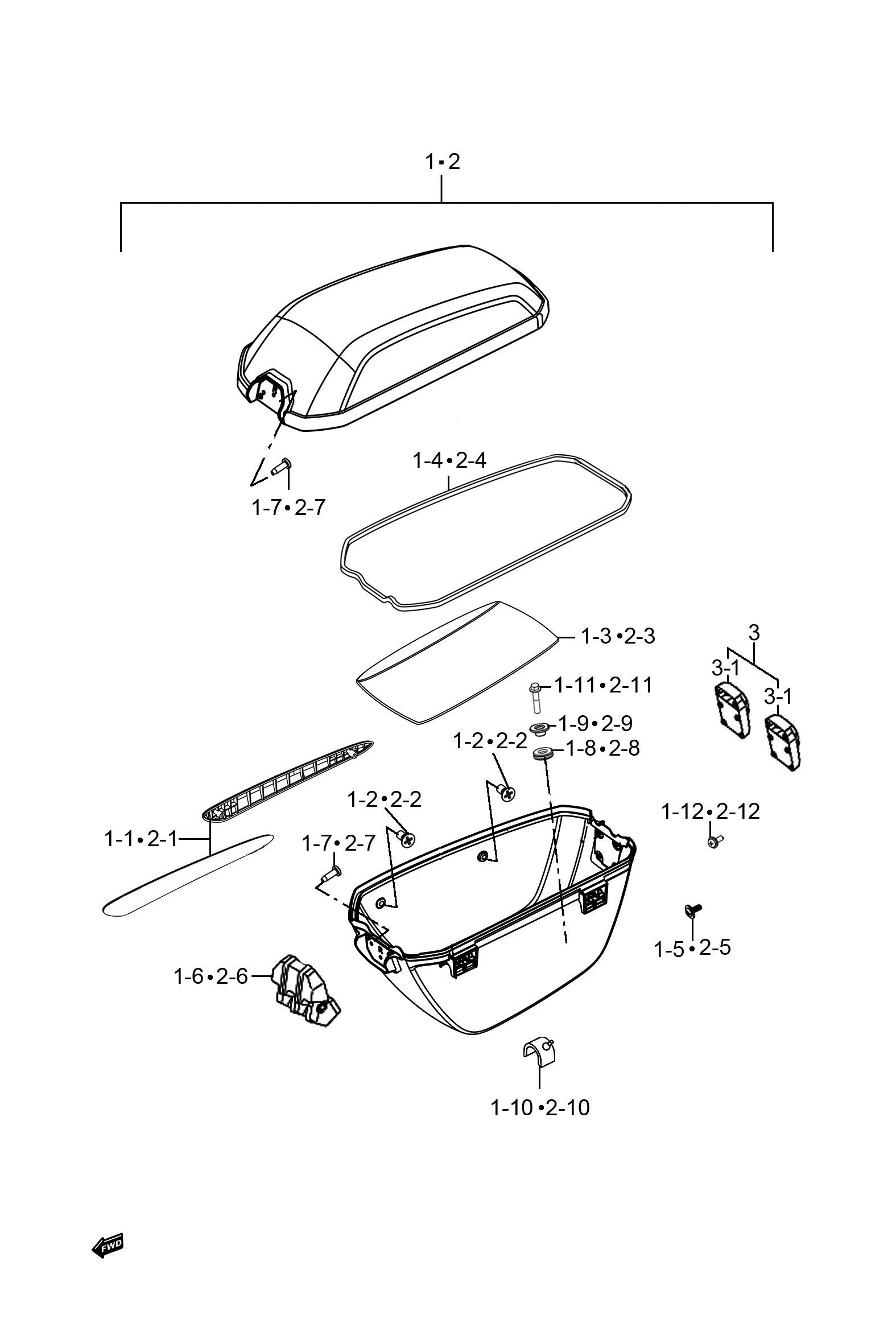

Location in exploded diagrams
Other parts on this diagram — 边箱组
- #1-1 95420H3AY00H000 — 右边箱装饰组合
- #1-2 92125-33GC0-000 — 前货箱盖内衬板安装螺钉
- #1-3 95412H3A000H000 — 右边箱内衬垫
- #1-6 95430-48H00-000 — 尾箱右合页组成
- #1-7 03541-0516A-000 — 十字槽球头自攻钉
- #1-8 09320-08518-000 — 减震垫
- #1-9 09180H06022H000 — 衬套
- #1-10 95462H3A000H000 — 边箱上减震垫
- #1-11 01550-0620A-000 — 六角法兰面螺栓
- #1-12 02112-1412A-000 — 十字槽盘头小螺钉
- #2-1 95520H3AY00H000 — 左边箱装饰组合
- #2-3 95512H3A000H000 — 左边箱内衬垫
- #2-4 93115H3A001H000 — 边箱镶条Ⅰ
- #2-6 95530-48H00-000 — 左边箱合页组成
- #3 95300-48H00-000 — 边箱锁组合
- #3-1 95450-48H00-000 — 边箱锁总成
- #1 95400H3A004H501 — 右边箱总成(珍珠黑)
- #1 95400H3A004H511 — 右边箱总成(哑光黑)
- #2 95500H3A004H501 — 左边箱总成(珍珠黑)
- #2 95500H3A004H511 — 左边箱总成(哑光黑)
