09116H06005H000平垫螺栓组合 — Genuine HAOJUE Part

Verified fitment — 1 vehicle

Fitment is sourced from official parts catalogues, listed per catalogue market.

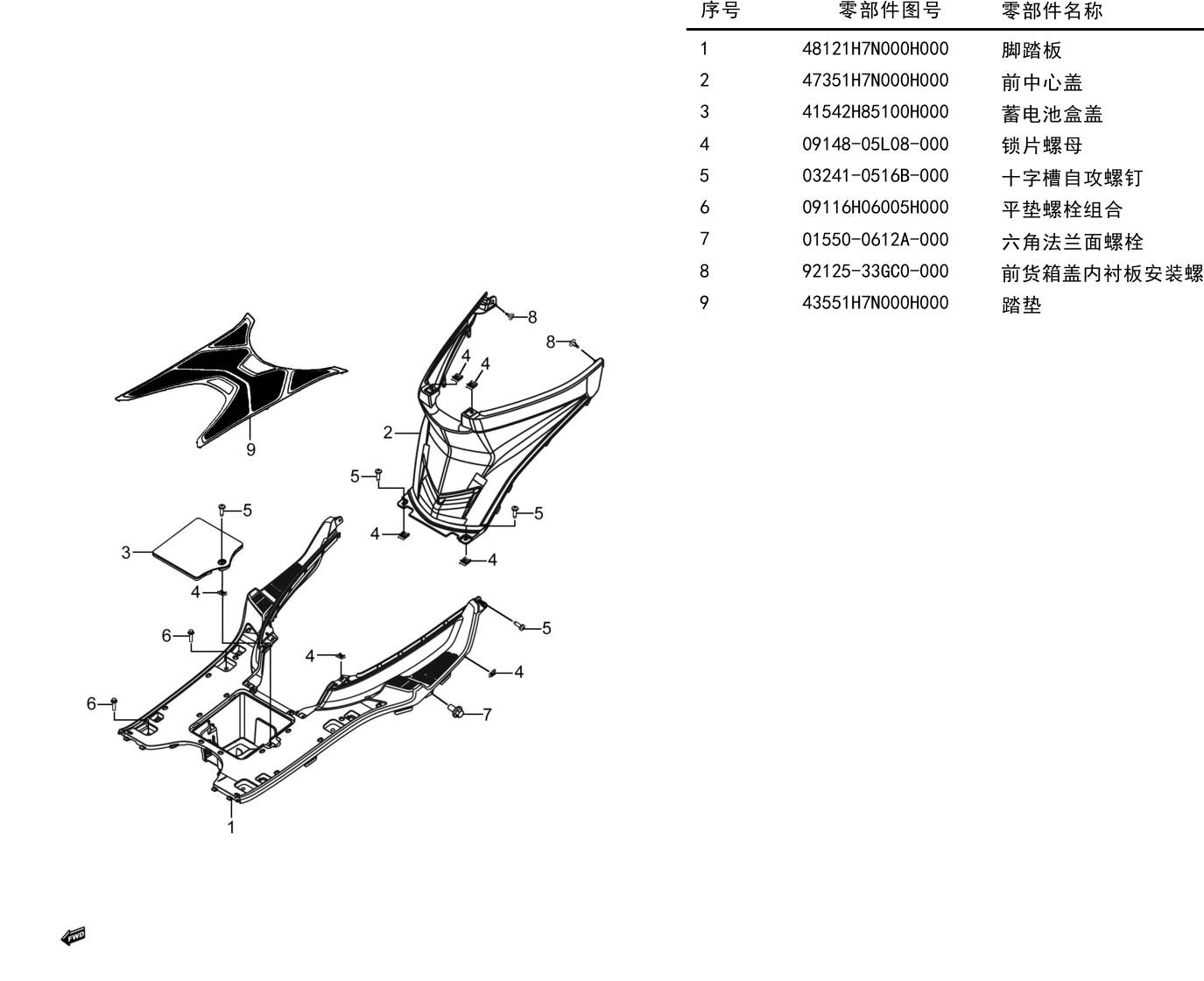

Location in exploded diagrams

Other parts on this diagram — 脚踏板组

• #1 48121H7N000H000 — 脚踏板
• #2 47351H7N000H000 — 前中心盖
• #3 41542H85100H000 — 蓄电池盒盖
• #4 09148-05L08-000 — 锁片螺母
• #5 03241-0516B-000 — 十字槽自攻螺钉
• #7 01550-0612A-000 — 六角法兰面螺栓
• #8 92125-33GC0-000 — 前货箱盖内衬板安装螺钉
• #9 43551H7N000H000 — 踏垫
