Verified fitment — 5 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

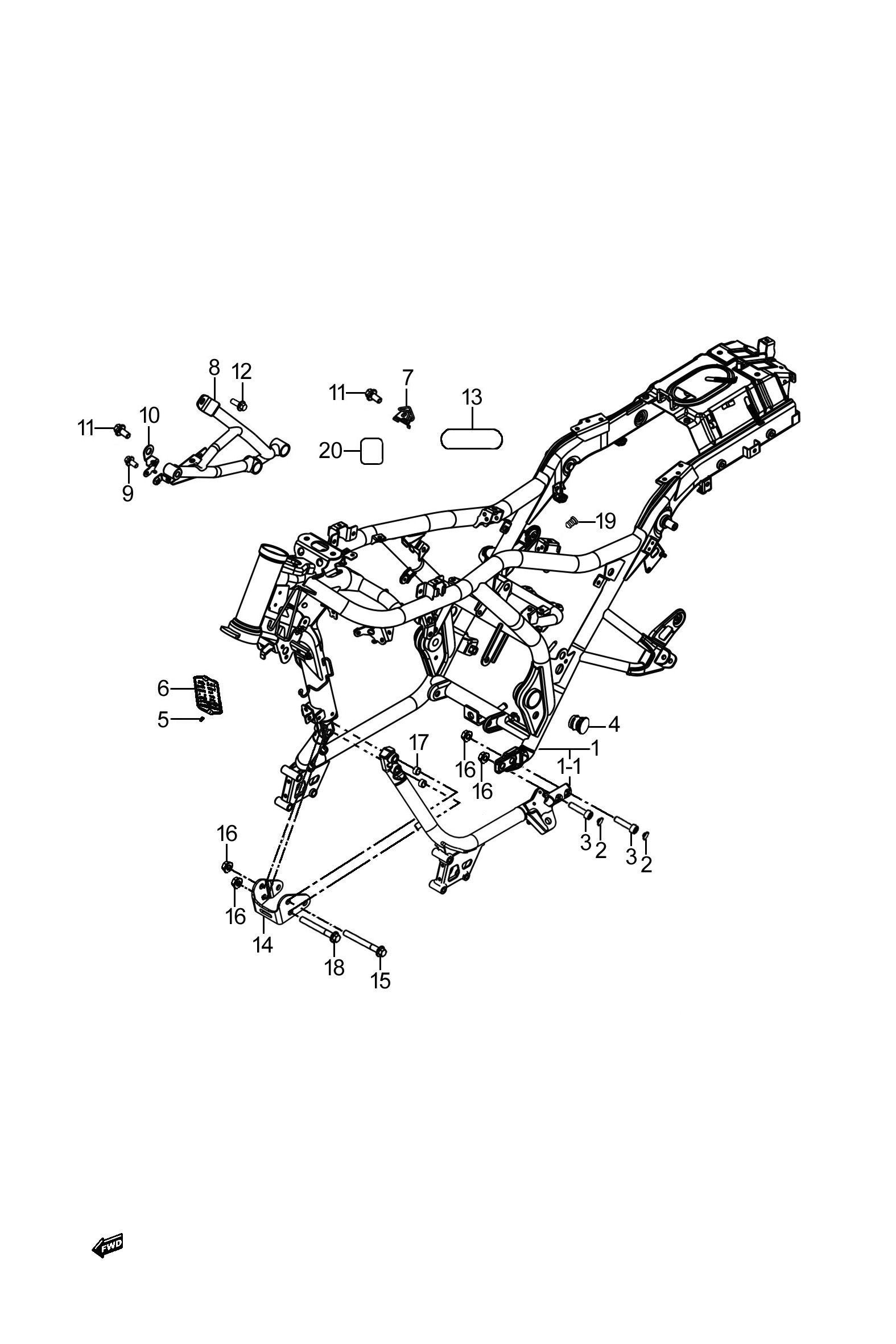

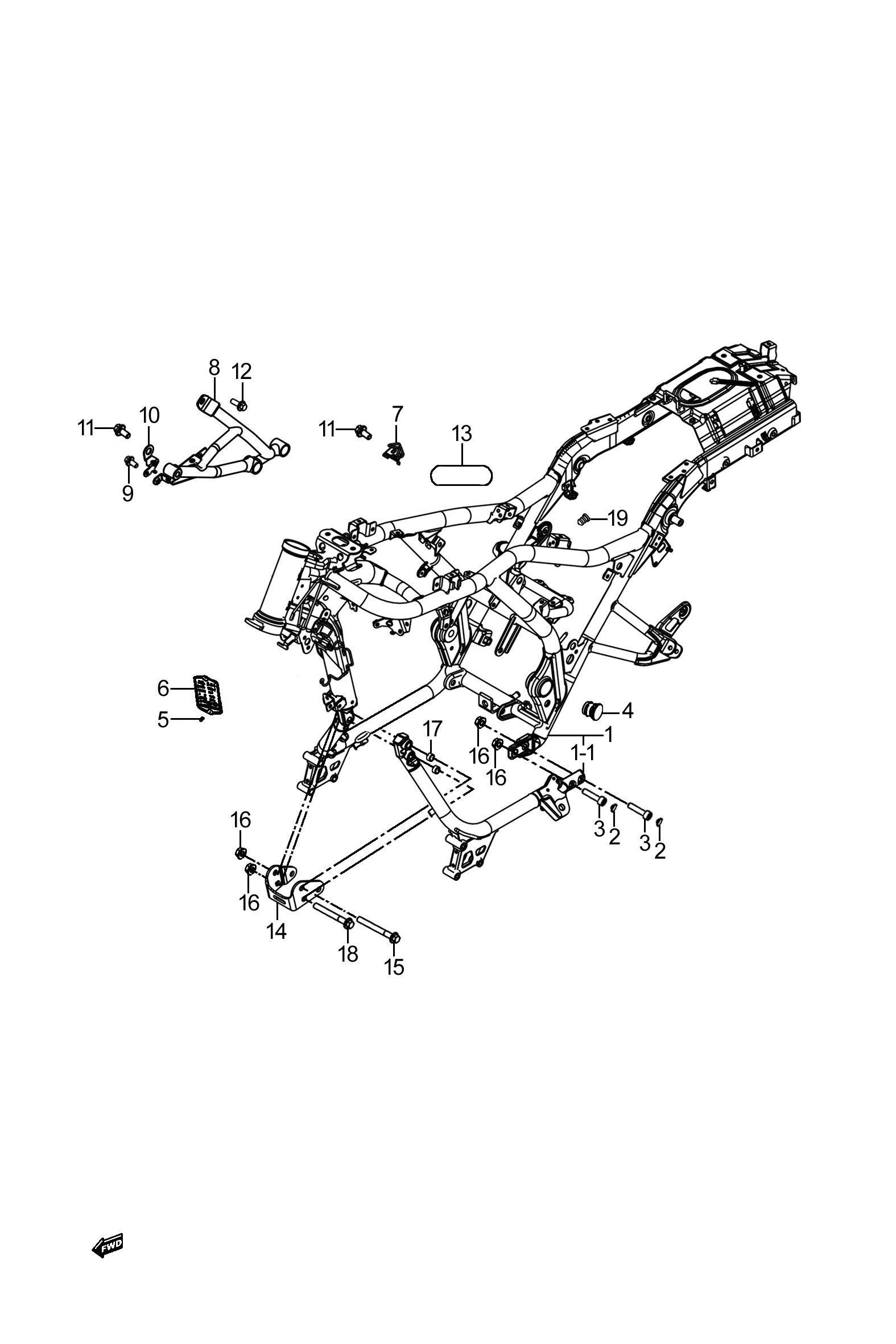

Location in exploded diagrams
Other parts on this diagram — 车架组
- #1 41100H3C100H000 — 车架组成
- #1-1 41170H3A000H000 — 车架左下管组成
- #2 41498-48H00-000 — 扣形塞
- #3 09106-10068-000 — 内六角螺栓
- #5 68389-45F00-000 — 铭牌铆钉
- #6 68311H3C110H000 — 车架铭牌
- #7 41291H3A001H000 — 空滤器安装板
- #8 43810H3C101H000 — 消声器安装支架组成
- #10 41965H3A000H000 — 侧盖下支架
- #11 01550-0612A-000 — 六角法兰面螺栓
- #12 09103H08027H000 — 六角法兰面螺栓
- #13 41152H3A002H000 — 车架保护贴条
- #14 41992H3A000H000 — 发动机下悬挂板
- #15 09103H10021H000 — 六角法兰面螺栓
- #16 08319-3110B-000 — U型螺母
- #17 09180H10018H000 — 衬套
- #18 09103H10024H000 — 六角法兰面螺栓
- #19 41757H3A010H000 — 管塞
- #20 58521H2K000H000 — 软管贴条
- #4 41757H3A000H000 — 管塞
