Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (2)
Location in exploded diagrams

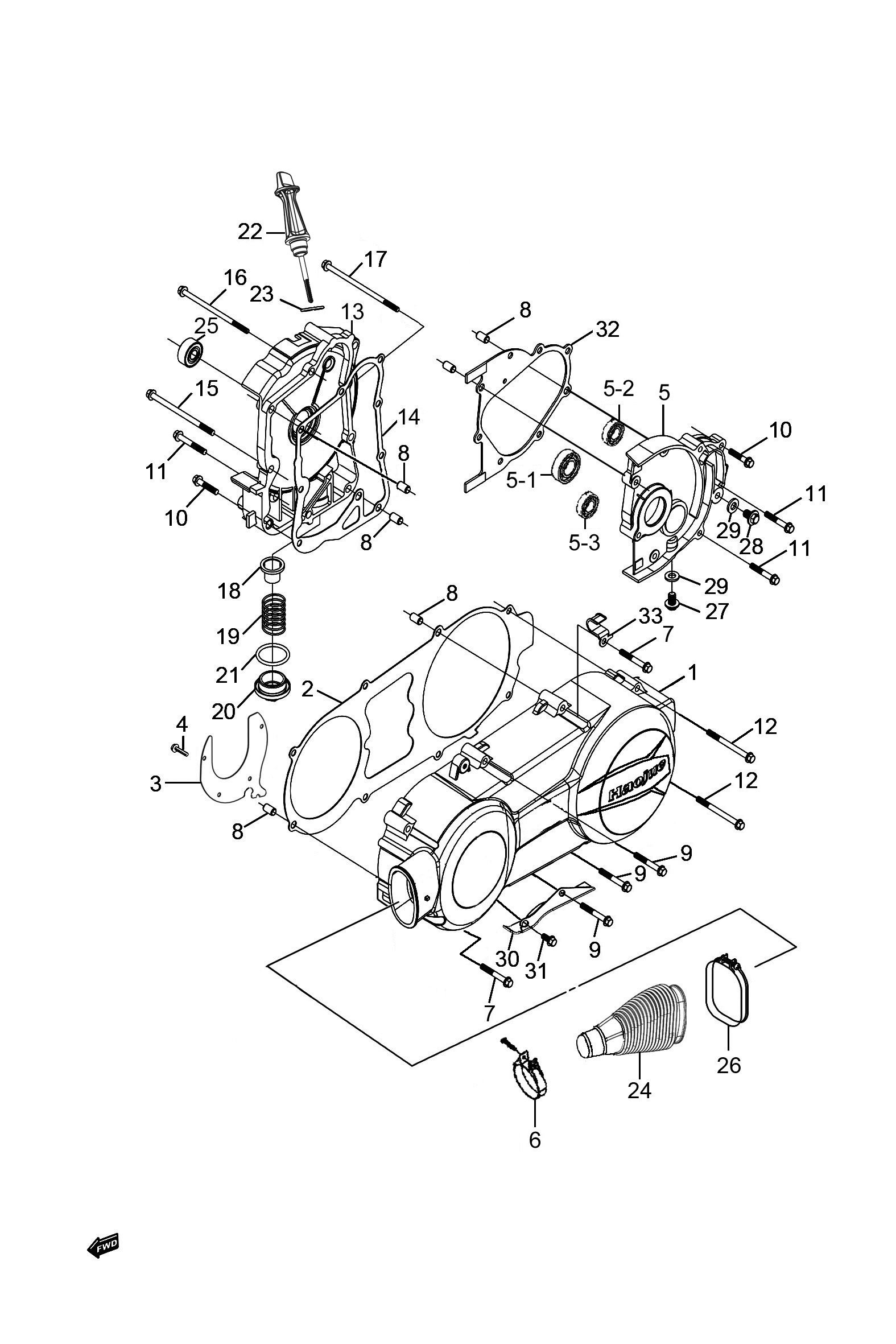

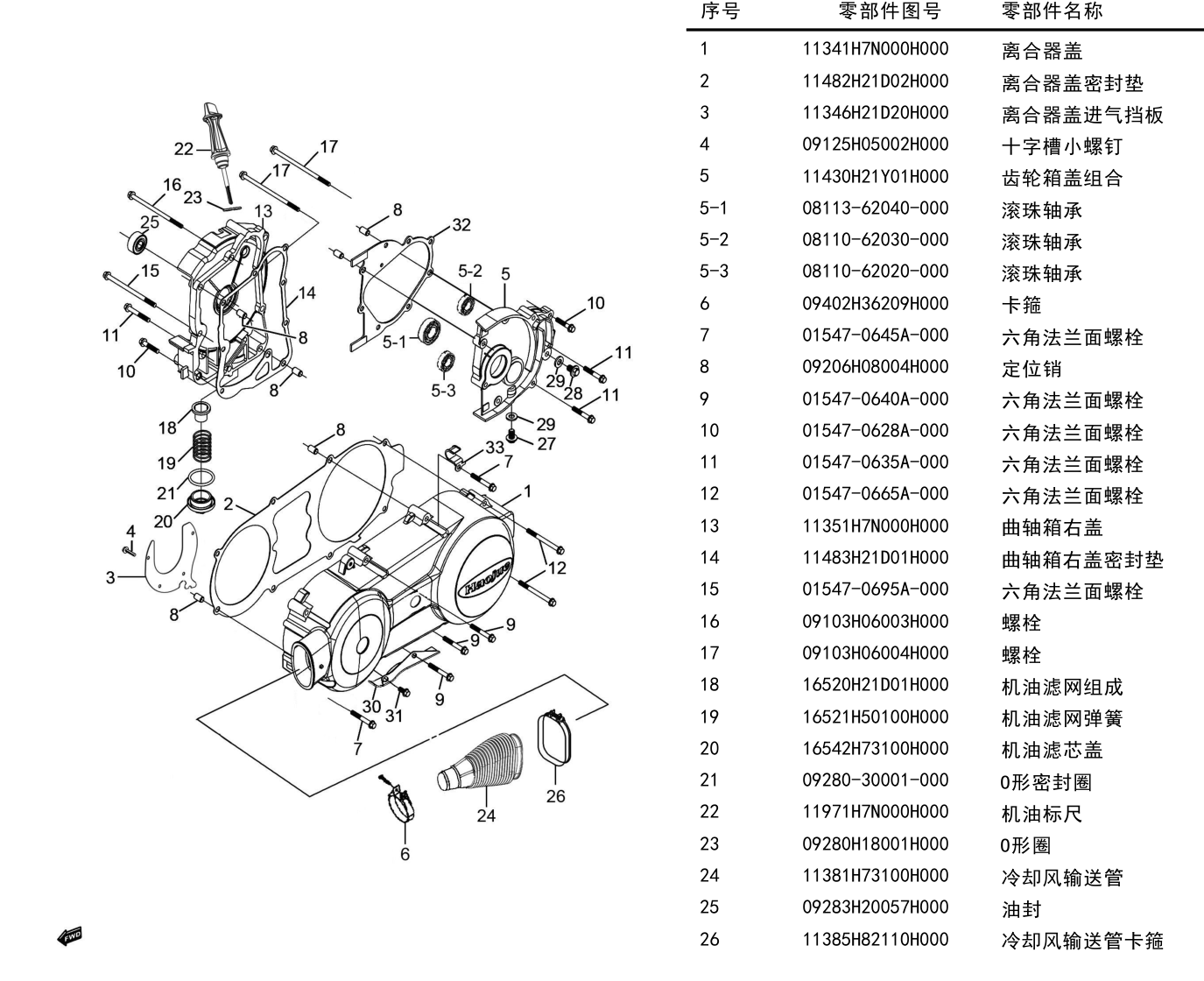

Other parts on this diagram — 曲轴箱盖组
- #1 11341H85510H000 — 离合器盖
- #2 11482H21D12H000 — 离合器盖密封垫
- #3 11346H21D20H000 — 离合器盖进气挡板
- #4 09125H05002H000 — 十字槽小螺钉
- #5 11430H21Y10H000 — 齿轮箱盖组合
- #11 01547-0635A-000 — 六角法兰面螺栓
- #12 01547-0665A-000 — 六角法兰面螺栓
- #13 11351H7N001H000 — 曲轴箱右盖
- #14 11483H21D02H000 — 曲轴箱右盖密封垫
- #15 01547-0695A-000 — 六角法兰面螺栓
- #16 09103H06025H000 — 六角法兰面螺栓
- #17 09103H06026H000 — 六角法兰面螺栓
- #18 16520H21D01H000 — 机油滤网组成
- #19 16521H50100H000 — 机油滤网弹簧
- #20 16542H73100H000 — 机油滤芯盖
- #21 09280-30001-000 — O形密封圈
- #22 11971H7N000H000 — 机油标尺
- #23 09280H18001H000 — O形圈
- #24 11381H73100H000 — 冷却风输送管
- #25 09283H20057H000 — 油封
- #26 11385H82110H000 — 冷却风输送管卡箍
- #27 01550-0812A-000 — 六角法兰面螺栓
- #29 09168H08001H000 — 垫圈
- #30 11385H21D20H000 — 防护挡板
