Verified fitment — 10 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

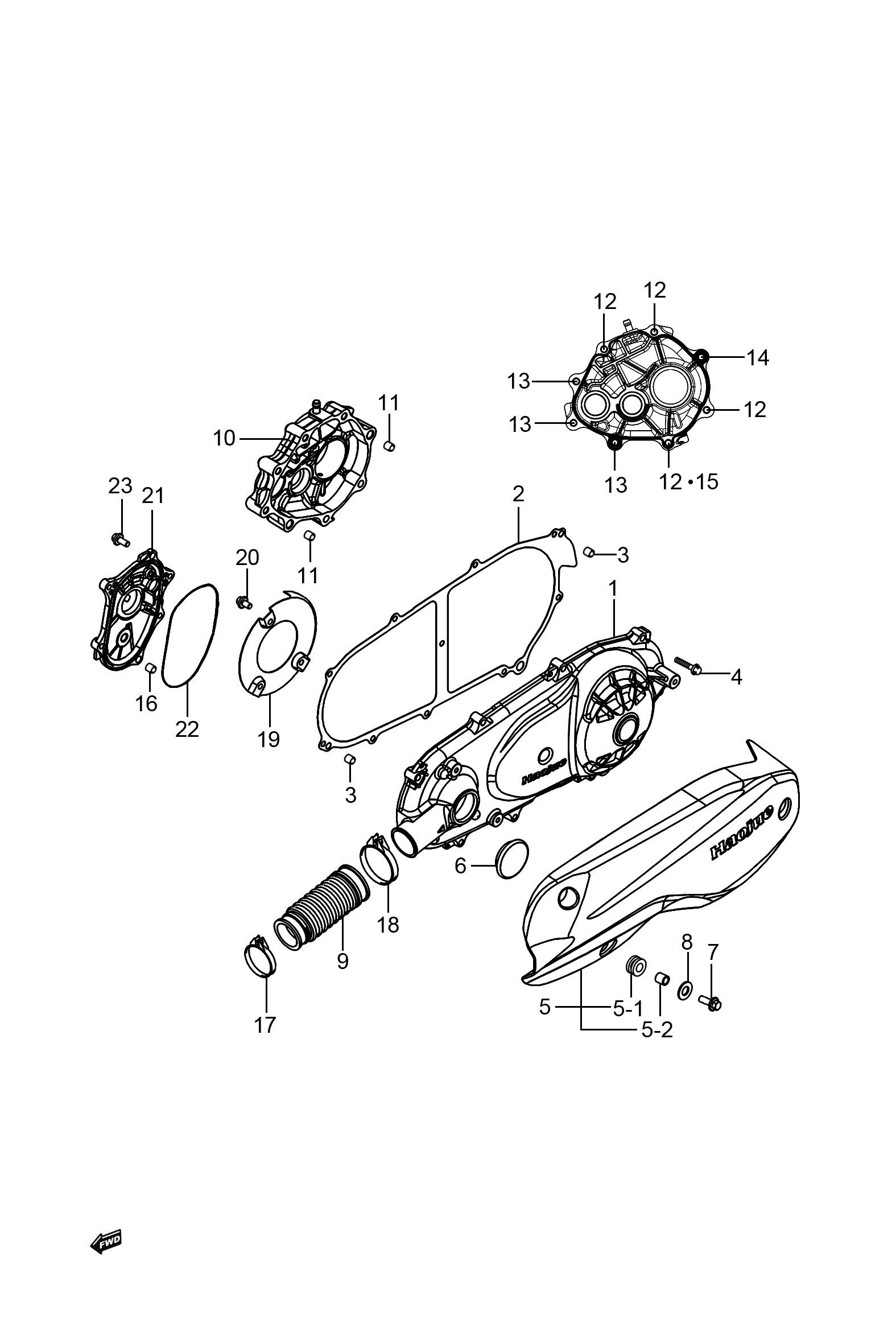

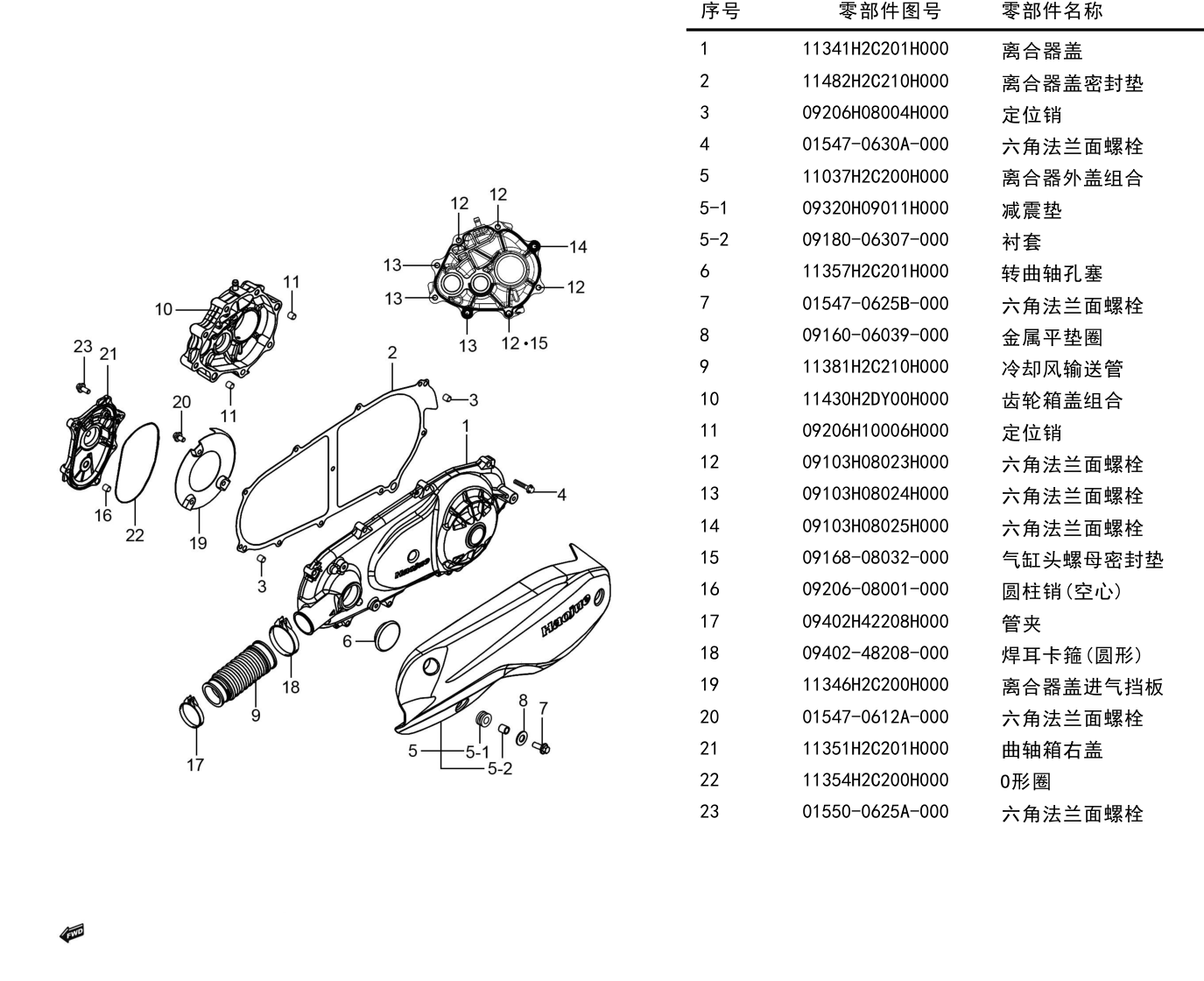

Location in exploded diagrams
Other parts on this diagram — 曲轴箱盖组
- #15 09168-08032-000 — 气缸头螺母密封垫
- #1 11341H2C201H000 — 离合器盖
- #2 11482H2C210H000 — 离合器盖密封垫
- #3 09206H08004H000 — 定位销
- #4 01547-0630A-000 — 六角法兰面螺栓
- #5 11037H2C200H000 — 离合器外盖组合
- #5-1 09320H09011H000 — 减震垫
- #5-2 09180-06307-000 — 衬套
- #6 11357H2C201H000 — 转曲轴孔塞
- #7 01547-0625B-000 — 六角法兰面螺栓
- #8 09160-06039-000 — 金属平垫圈
- #9 11381H2C210H000 — 冷却风输送管
- #10 11430H2DY00H000 — 齿轮箱盖组合
- #11 09206H10006H000 — 定位销
- #16 09206-08001-000 — 圆柱销(空心)
- #17 09402H42208H000 — 管夹
- #18 09402H48201H000 — 卡箍
- #19 11346H2C200H000 — 离合器盖进气挡板
- #20 01547-0612A-000 — 六角法兰面螺栓
- #21 11351H2C201H000 — 曲轴箱右盖
- #22 11354H2C200H000 — O形圈
- #23 01550-0625A-000 — 六角法兰面螺栓
- #12 09103H08023H000 — 六角法兰面螺栓
- #13 09103H08024H000 — 六角法兰面螺栓
