Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (1)

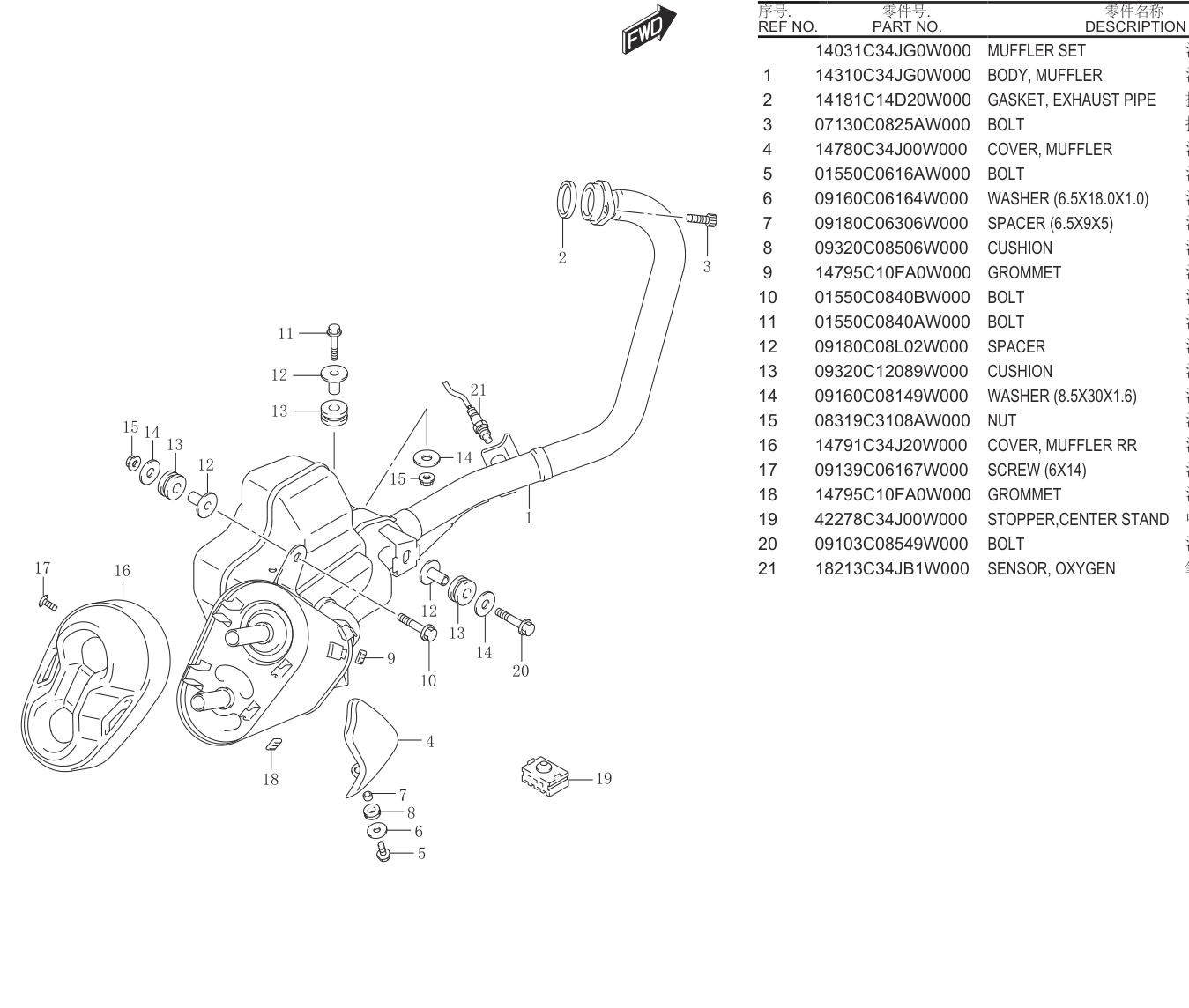

Location in exploded diagrams
Other parts on this diagram — MUFFLER........................22
- #1 14310C34JG0W000 — BODY, MUFFLER
- #2 14181C14D20W000 — GASKET, EXHAUST PIPE
- #3 07130C0825AW000 — BOLT
- #4 14780C34J00W000 — COVER, MUFFLER
- #5 01550C0616AW000 — BOLT
- #6 09160C06164W000 — WASHER (6.5X18.0X1.0)
- #7 09180C06306W000 — SPACER (6.5X9X5)
- #8 09320C08506W000 — CUSHION
- #9 14795C10FA0W000 — GROMMET
- #10 01550C0840BW000 — BOLT
- #11 01550C0840AW000 — BOLT LH
- #12 09180C08L02W000 — SPACER
- #13 09320C12089W000 — CUSHION
- #14 09160C08149W000 — WASHER (8.5X30X1.6)
- #15 08319C3108AW000 — NUT
- #16 14791C34J20W000 — COVER, MUFFLER RR
- #17 09139C06167W000 — SCREW (6X14)
- #19 42278C34J00W000 — STOPPER,CENTER STAND RH
