08381P910010变档杆安装座 — Genuine QJMOTOR Part
QJMOTORoemFactory supply status: Nicht verfügbar, muss bei QJ Motor bestellt werden, Lieferzeit 9-29 Tage, wenn beim Hersteller vorrätig
Verified fitment — 10 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (6)
Germany (1)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| GBP | 18.42 | listing | motogbshop.co.uk |

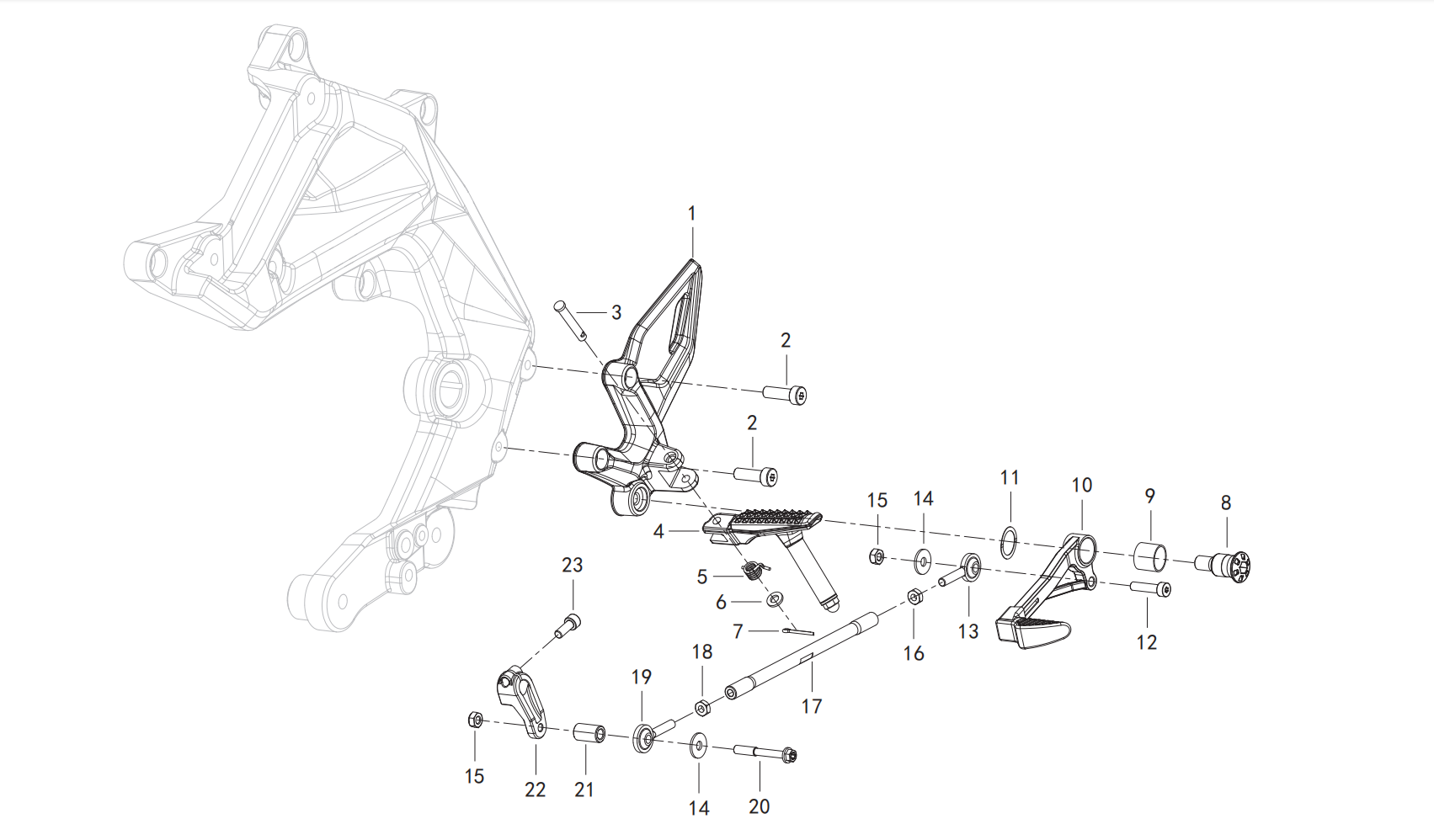

Location in exploded diagrams
Other parts on this diagram — 踏蹬总成Ⅰ PEDALING ASSY.
- #1 58226P620000 — 左前脚蹬支架
- #2 B0226080256S — 内六角花形圆柱头螺钉M8×25
- #3 58217P100000 — 脚蹬安装销
- #4 58220P620000 — 左前脚蹬组件
- #5 58222S010100 — 脚踏蹬弹簧
- #6 B0703000060H — 垫圈Φ6
- #7 B090002018AH — 开口销Φ2×18
- #8 08373P250301 — 变档踏杆安装螺钉
- #9 58511S010000 — 自润滑衬套
- #10 08380P250012 — 变档踏板组件
- #11 58216S010000 — 垫圈
- #12 B0226060306S — 内六角花形圆柱头螺钉M6×30
- #13 40706S040000 — M6左节头
- #14 B0702000060G — 平垫圈Φ6
- #15 B04810600052 — 螺母M6
- #16 08051S040010 — 左螺母M6
- #17 08371P620000 — 变档连杆
- #18 B04800600052 — 螺母M6-8-ZG
- #19 08375S010000 — 节头
- #20 160306030100 — 六角内梅花螺栓
- #21 08376P250010 — 隔套
- #23 B0226060166S — 内六角花形圆柱头螺钉M6×16
- #8 08373P253J01 — 变档踏杆安装螺钉
