Verified fitment — 8 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Location in exploded diagrams

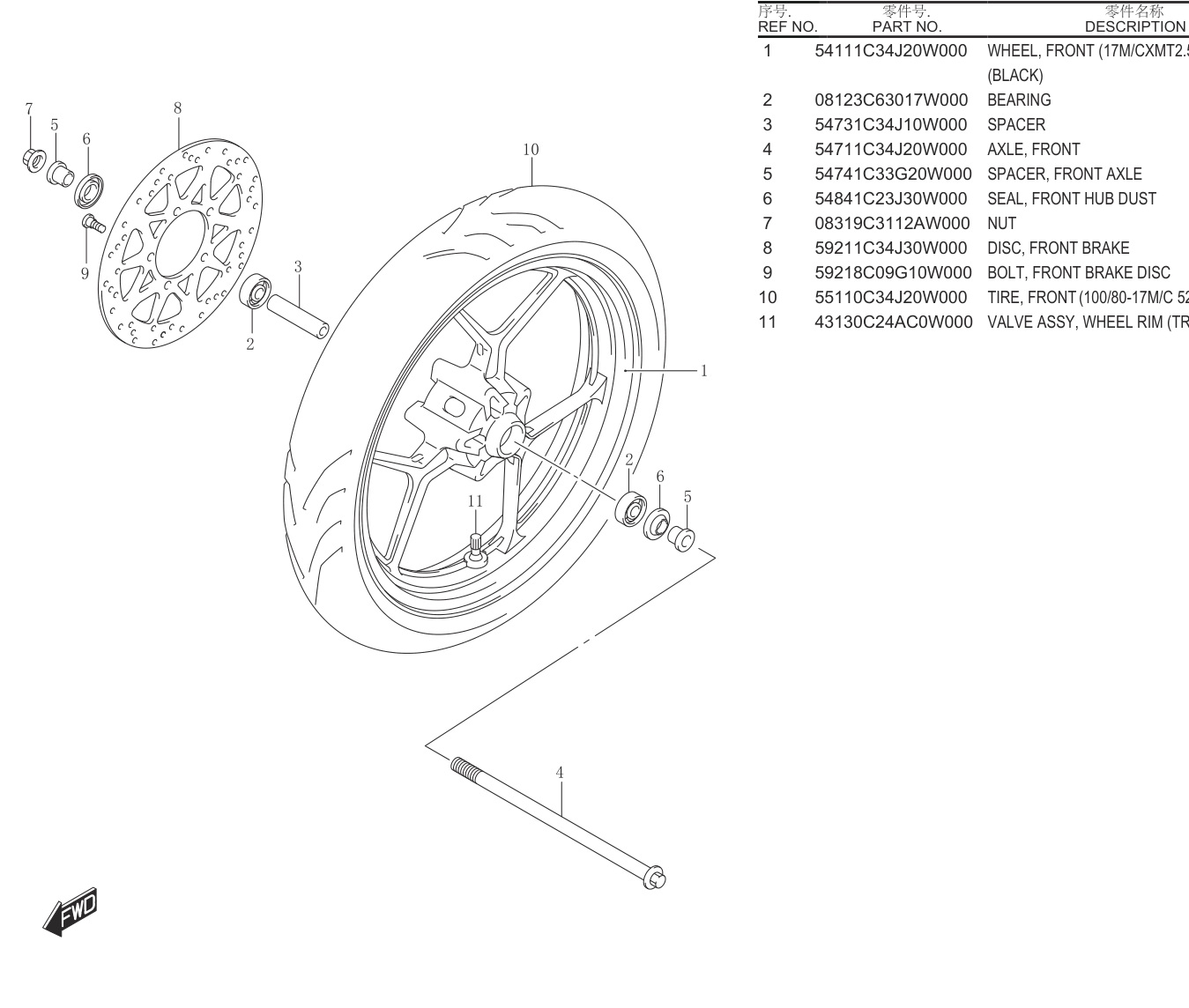

Other parts on this diagram — FRONT WHEEL................... 66
- #8 59211C34J30W000 — DISC, FRONT BRAKE
- #9 59218C09G10W000 — BOLT, FRONT BRAKE DISC
- #1 54111C34J20W000 — WHEEL, FRONT (17M/CXMT2.50) (BLACK)
- #2 08123C63017W000 — BEARING
- #3 54731C34J10W000 — SPACER
- #4 54711C34J20W000 — AXLE, FRONT
- #10 55110C34J20W000 — TIRE, FRONT (100/80-17M/C 52H)
- #5 54741C33G20W000 — SPACER, FRONT AXLE
- #6 54841C23J30W000 — SEAL, FRONT HUB DUST
- #11 43130C24AC0W000 — VALVE ASSY, WHEEL RIM (TR412)
