08319C2116AW000NUT 10 65110C33GC0W000 TIRE, REAR (100/90-10 56J) 1 — Genuine HAOJUE Part

Verified fitment — 5 vehicles

Fitment is sourced from official parts catalogues, listed per catalogue market.

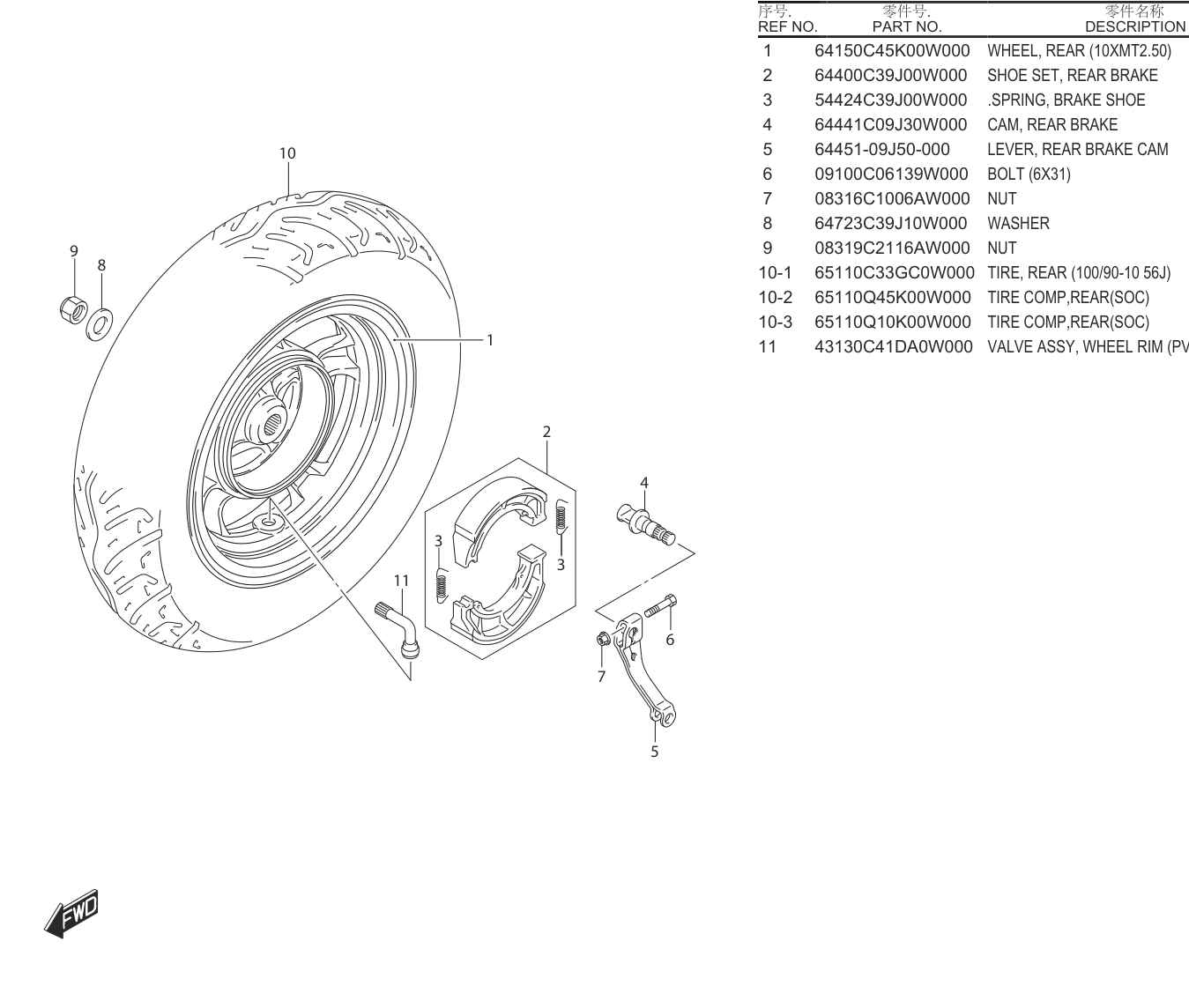

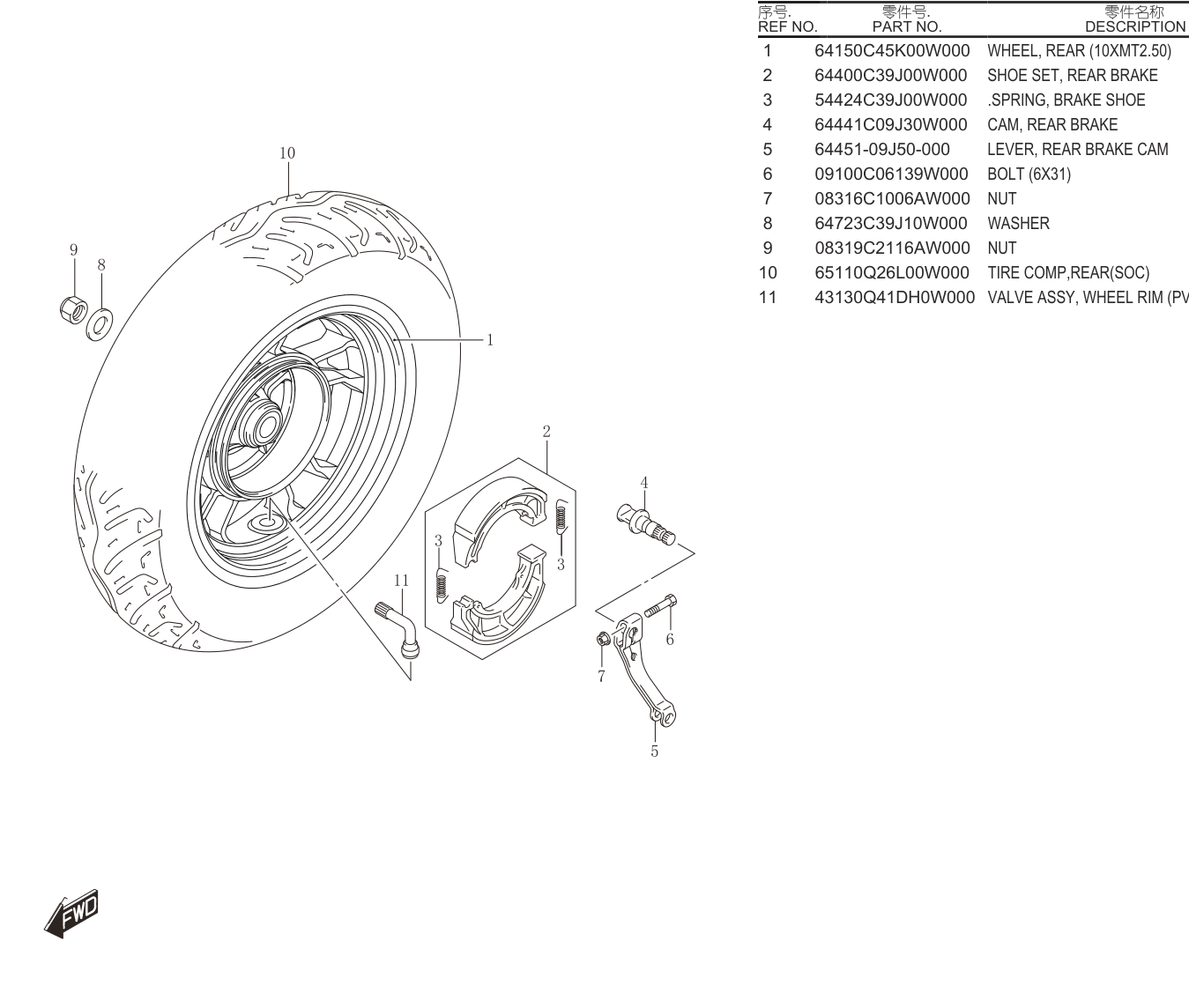

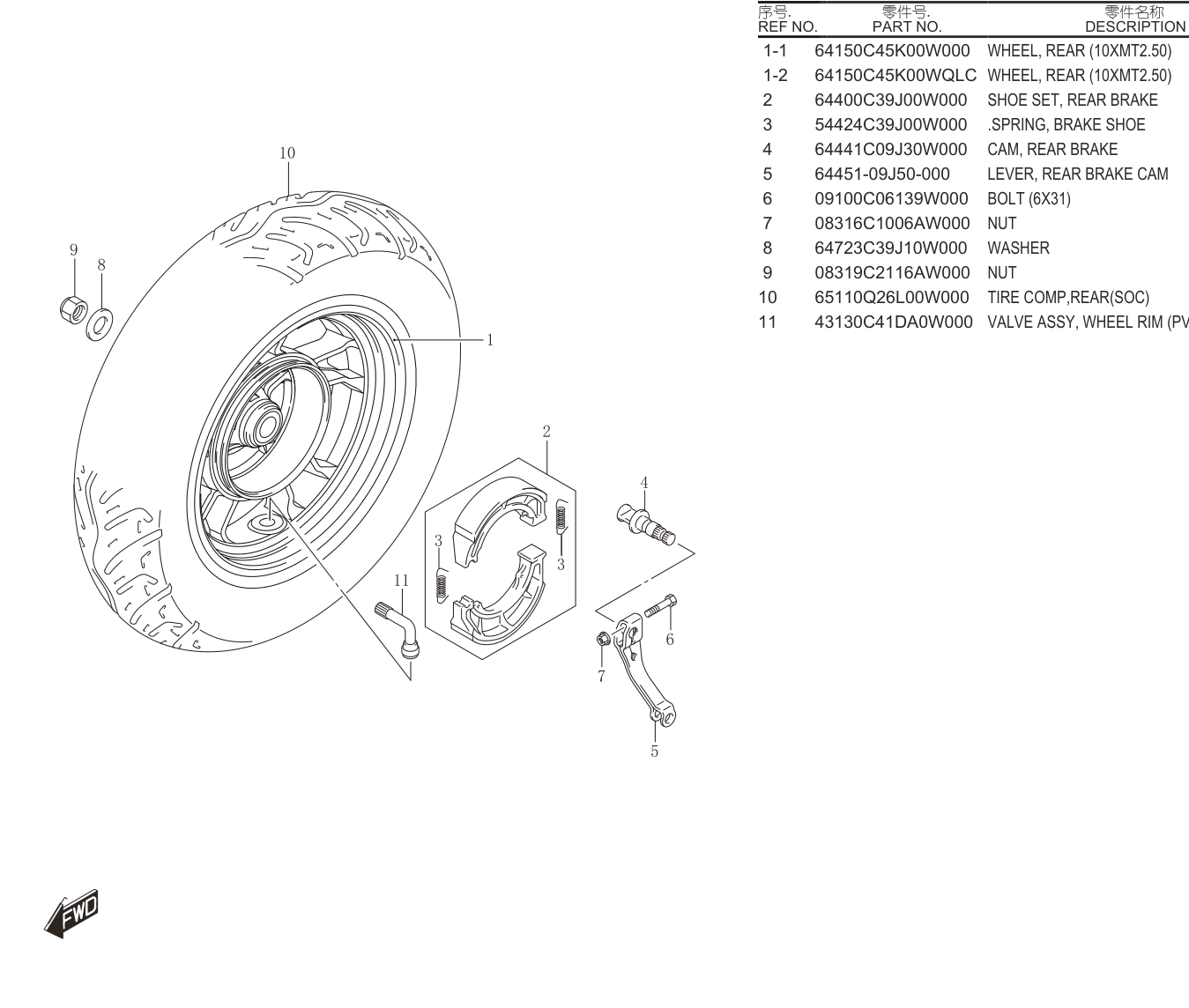

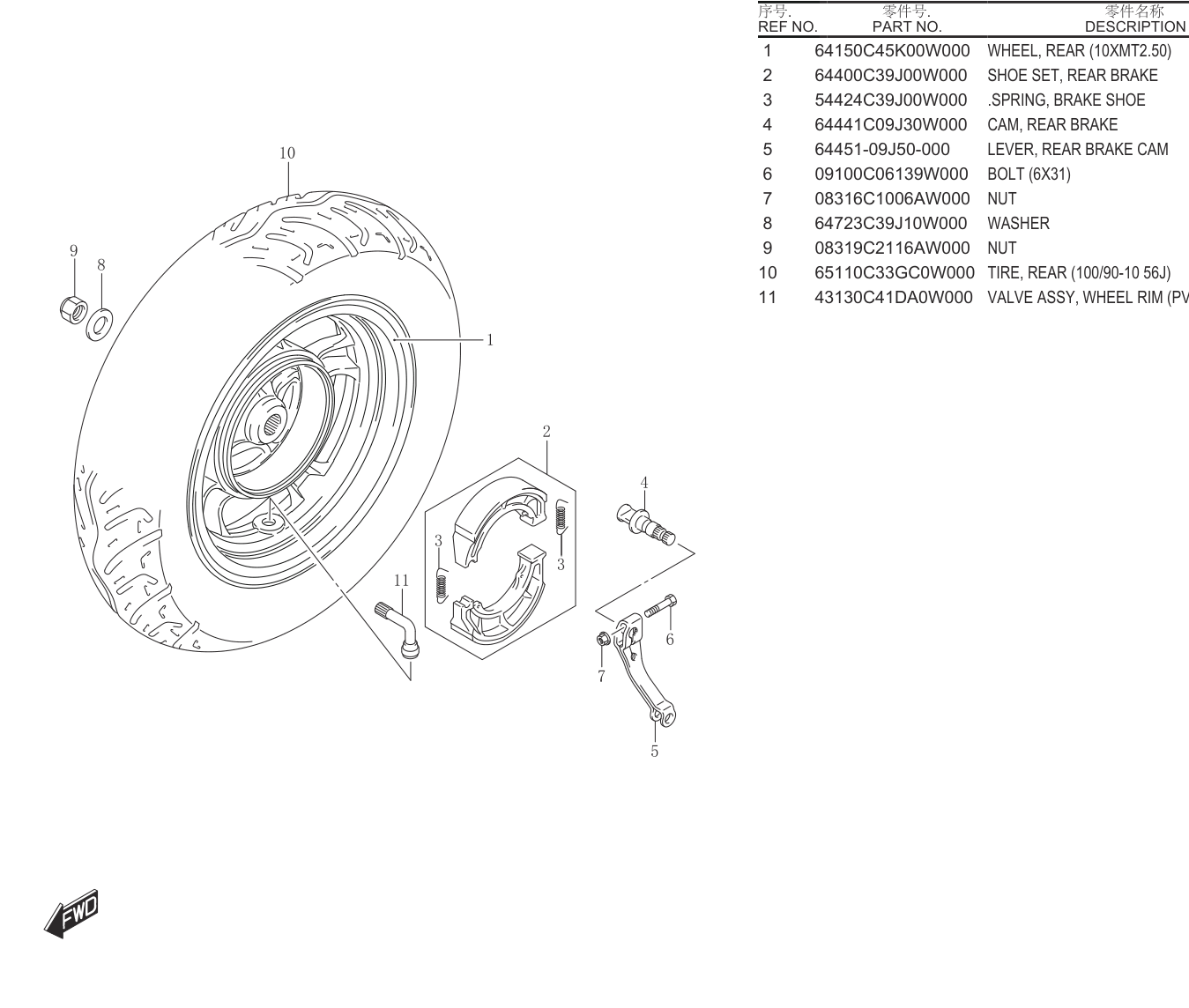

Location in exploded diagrams

Other parts on this diagram — 后轮

• #1 64150C45K00W000 — WHEEL, REAR (10XMT2.50)
• #2 64400C39J00W000 — SHOE SET, REAR BRAKE
• #3 54424C39J00W000 — .SPRING, BRAKE SHOE
• #4 64441C09J30W000 — CAM, REAR BRAKE
• #5 64451-09J50-000 — LEVER, REAR BRAKE CAM
• #6 09100C06139W000 — BOLT (6X31)
• #7 08316C1006AW000 — NUT
• #8 64723C39J10W000 — WASHER
• #11 43130C41DA0W000 — VALVE ASSY, WHEEL RIM (PVR70)
