Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (1)

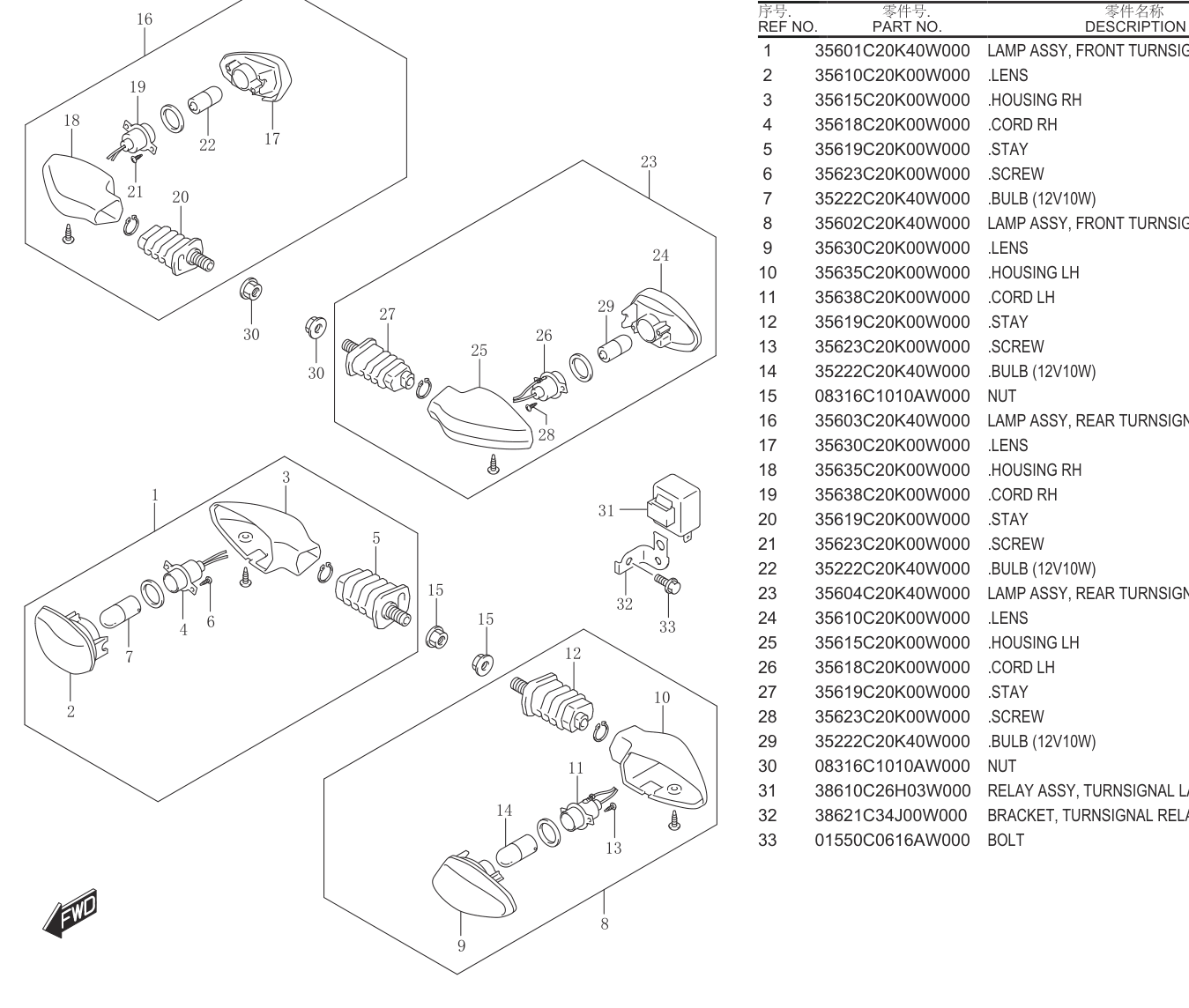

Location in exploded diagrams
Other parts on this diagram — TURNSIGNAL LAMP................36
- #1 35601C20K40W000 — LAMP ASSY, FRONT TURNSIGNAL RH
- #2 35610C20K00W000 — .LENS
- #3 35615C20K00W000 — .HOUSING RH
- #4 35618C20K00W000 — .CORD RH
- #5 35619C20K00W000 — .STAY
- #6 35623C20K00W000 — .SCREW
- #7 35222C20K40W000 — .BULB (12V10W)
- #8 35602C20K40W000 — LAMP ASSY, FRONT TURNSIGNAL LH
- #9 35630C20K00W000 — .LENS
- #10 35635C20K00W000 — .HOUSING LH
- #11 35638C20K00W000 — .CORD LH
- #16 35603C20K40W000 — LAMP ASSY, REAR TURNSIGNAL RH
- #23 35604C20K40W000 — LAMP ASSY, REAR TURNSIGNAL LH
- #31 38610C26H03W000 — RELAY ASSY, TURNSIGNAL LAMP
- #32 38621C34J00W000 — BRACKET, TURNSIGNAL RELAY
- #33 01550C0616AW000 — BOLT
