Verified fitment — 3 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

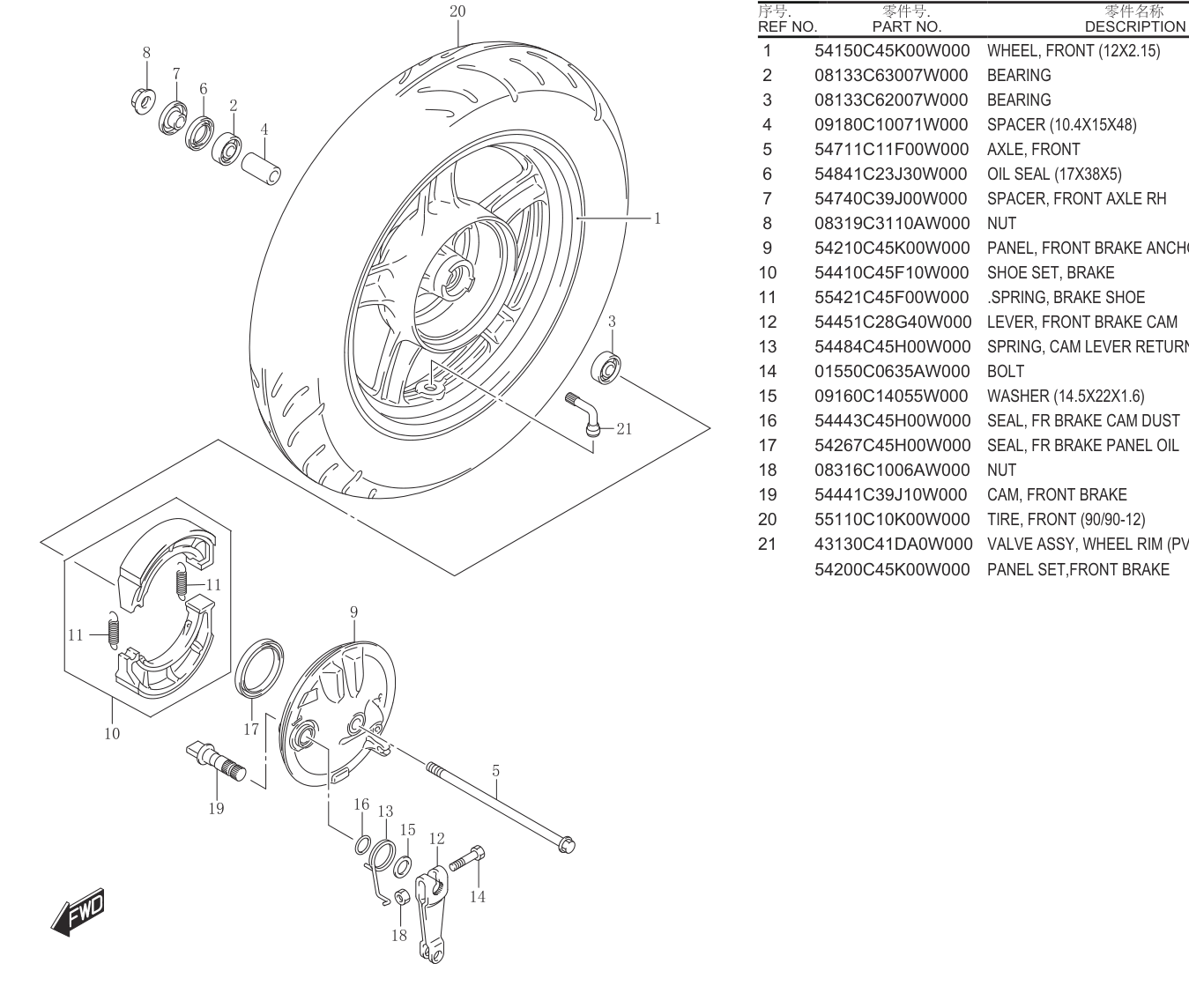

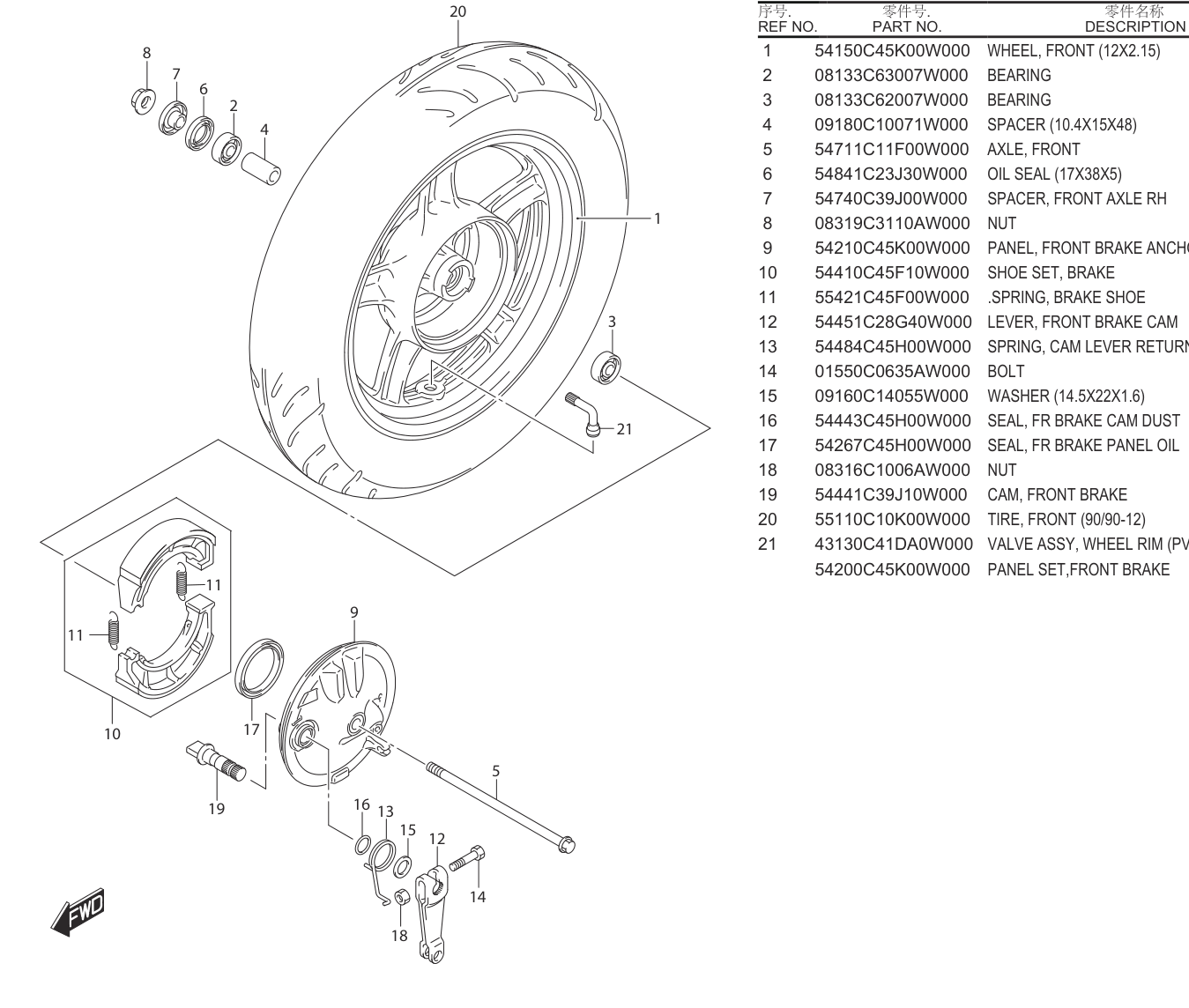

Location in exploded diagrams
Other parts on this diagram — 前轮
- #1 54150C45K00W000 — WHEEL, FRONT (12X2.15)
- #2 08133C63007W000 — BEARING RH
- #4 09180C10071W000 — SPACER (10.4X15X48)
- #5 54711C11F00W000 — AXLE, FRONT
- #6 54841C23J30W000 — OIL SEAL (17X38X5)
- #7 54740C39J00W000 — SPACER, FRONT AXLE RH
- #8 08319C3110AW000 — NUT
- #1 08316C1006AW000 — NUT
- #1 54441C39J10W000 — CAM, FRONT BRAKE
- #9 54210C45K00W000 — PANEL, FRONT BRAKE ANCHOR
- #10 54410C45F10W000 — SHOE SET, BRAKE
- #11 55421C45F00W000 — .SPRING, BRAKE SHOE
- #12 54451C28G40W000 — LEVER, FRONT BRAKE CAM
- #13 54484C45H00W000 — SPRING, CAM LEVER RETURN 14 15 16 17 18
- #19 01550C0635AW000 — BOLT
- #20 09160C14055W000 — WASHER (14.5X22X1.6)
- #21 54443C45H00W000 — SEAL, FR BRAKE CAM DUST
- #1 54267C45H00W000 — SEAL, FR BRAKE PANEL OIL
- #1 55110C10K00W000 — TIRE, FRONT (90/90-12)
- #1 43130C41DA0W000 — VALVE ASSY, WHEEL RIM (PVR70)
