Verified fitment — 3 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Location in exploded diagrams

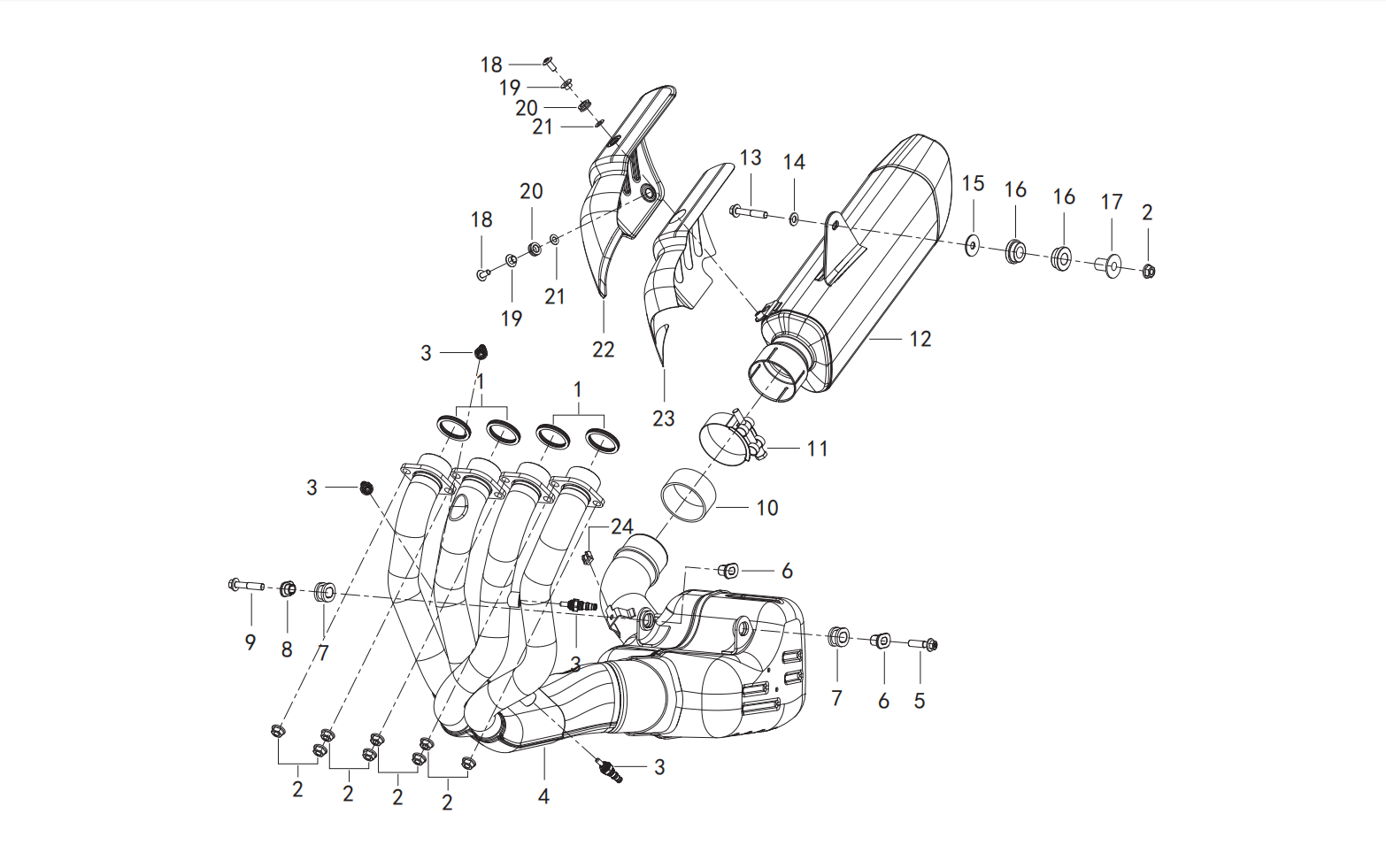

Other parts on this diagram — 消声器总成 MUFFLER ASSY.
- #1 47800P950000 — GASKET AS-EXHAUST PIPE
- #2 B0407080005H — NUT M8
- #3 47200P950001 — MAIN CYLINDER ASSEMBLY
- #4 280586030000 — OXYGEN SENSOR
- #5 08014P620006 — HEXAGONAL FLOWER SHAPED CONCAVE HEXAGONAL FLANGE BOLT M8×45
- #6 47041PAK0000 — MUFFLER MOUNTING BUSH
- #7 47026PAK0000 — MUFFLER BUFFER RUBBER
- #8 48830P180000 — CLAMP AS
- #9 48200P950001 — CYLINDER ASSEMBLY II
- #10 47022N290010 — MUFFLER BUFFER WASHER
- #11 47028H390000 — MUFFLER RUBBER SLEEVE
- #12 47021N290000 — MUFFLER BUFFER BUSHING
- #13 B0417080004H — SELF-LOCKING NUT M8
- #15 47128P380000 — T-SHAPED BUSHING Φ7×Φ9×6
- #16 47028P380000 — RUBBER SLEEVE Φ9×5
- #17 08022N050000 — INSULATION GASKET
- #18 47761P950001 — DECORATIVE COVER I
- #19 47013P950001 — INSULATION TIN FOIL PAPER I
- #20 47028P080000 — RUBBER SLEEVE
- #21 B0218060126L — HEXAGON SOCKET SCREW M6×10
- #22 B0700000060A — SPRING WASHER 6
- #23 47780P950000 — DECORATIVE COVER COMPONENT II
- #24 47014P950000 — INSULATION TIN FOIL II
