Verified fitment — 11 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (10)
- 2021–2024 Leoncino 500 E5 (2021 – 2024)
- 2021–2024 Leoncino 500 Trail E5 (2021 – 2024)
- 2021–2024 TRK 502 E5 (2021 – 2024)
- 2021–2024 TRK 502 X E5 (2021 – 2024)
- 2022–2024 502c E5 (2022 – 2024)
- 2022–2024 752s E5 (2022 – 2024)
- 2022–2024 Leoncino 800 E5 (2022 – 2024)
- 2022–2024 Leoncino 800 Trail E5 (2022 – 2024)
- 2025–2026 TRK 702 E5+ (2025 – 2026)
- 2025–2026 TRK 702 X E5+ (2025 – 2026)
China (1)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| GBP | 5.76 | listing | motogbshop.co.uk |

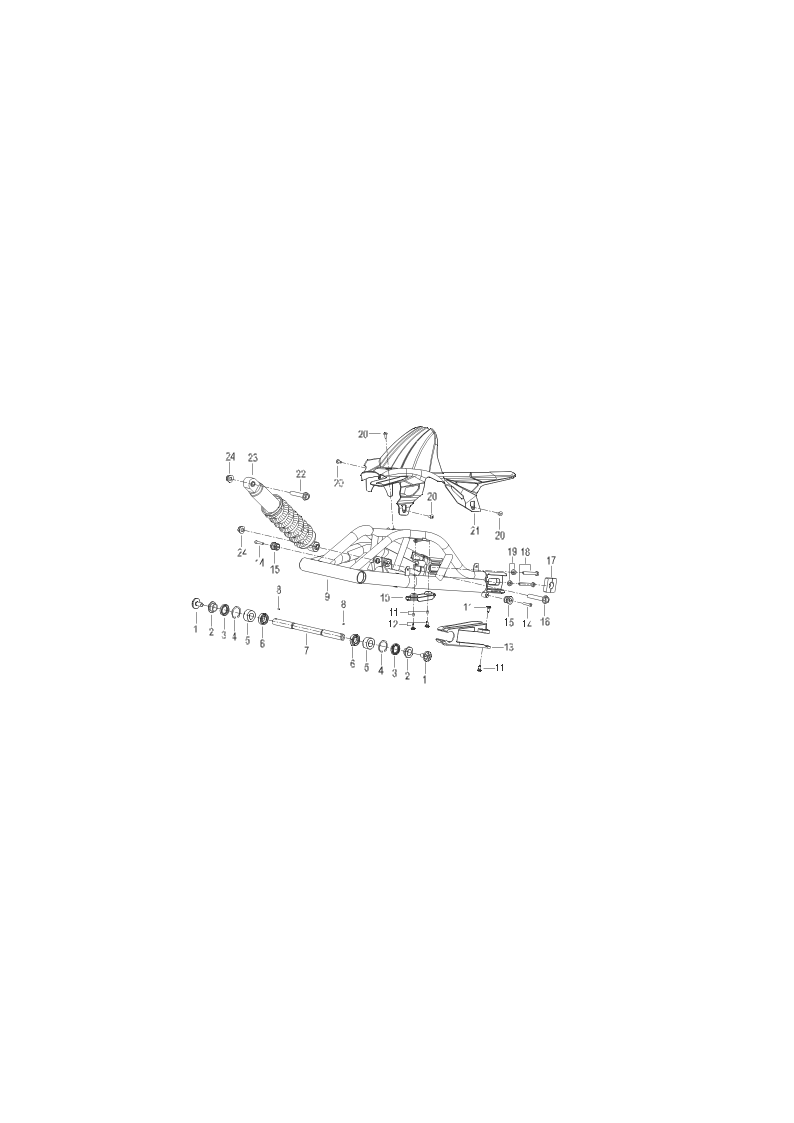

Location in exploded diagrams
Other parts on this diagram — 后摆臂 ARM AFTER ASSY.
- #1 53002P080000 — BACK SWING ARM SHAFT RETAINING BOLT
- #2 53006P100000 — BUSHING
- #3 53220P100000 — LIP PACKING ASSEMBLY 25 X 37 X 7
- #4 B08000003701 — HOLE WITH ELASTIC RING Φ37
- #5 B1210H490400 — NEEDLE ROLLER BEARING NA4904
- #6 B12016190400 — ROLLING BEARING 61905-2RS
- #7 53001P080000 — SHAFT,FIX,RR.SWING ARM
- #8 B091404008B4 — CYLINDRICAL PIN 4 X 8
- #9 53100P160001 — WELD ASSY.,RR. SWING ARM
- #10 53018P100000 — CHAIN UPPER BLOCK
- #11 53022P100000 — CHAIN UPPER BLOCK OF BLOCK
- #12 B0284060150A — SCREW M6×15.2
- #13 53004P100000 — THE CHAIN BLOCK BUFFER
- #15 53021P250000 — SUPPORTING SHEATH
- #16 08011M150002 — BACK SWING ARM BOLT
- #17 53231P100001 — CHAIN ADJUSTMENT PIECE OF
- #19 B0407080005H — NUT M8
- #20 B0283060146H — SCREW M6×14
- #21 60101P080000 — CHAIN COVER
- #22 08018P160001 — AFTER THE SUSPENSION Ⅰ BOLTS
- #23 63800P360000 — ABSORBER ASSY.
- #24 B0417121254H — NUT M12×1.25
- 53005P100000 — 后摆臂中间轴套
- #14 B0205060306H — SCREW M6×30
