Verified fitment — 7 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (6)
United Kingdom (1)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| GBP | 0.00 | listing | motogbshop.co.uk |

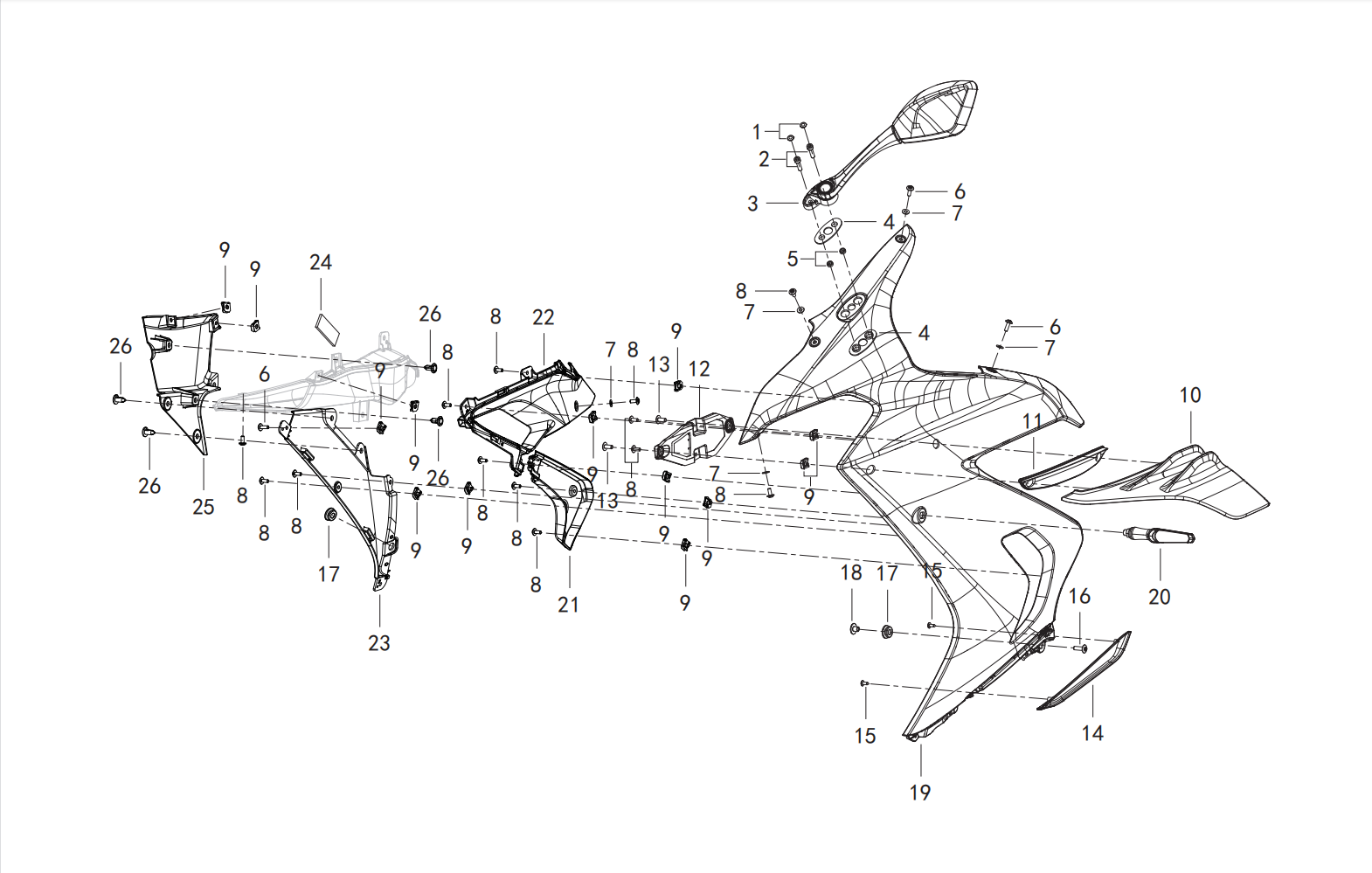

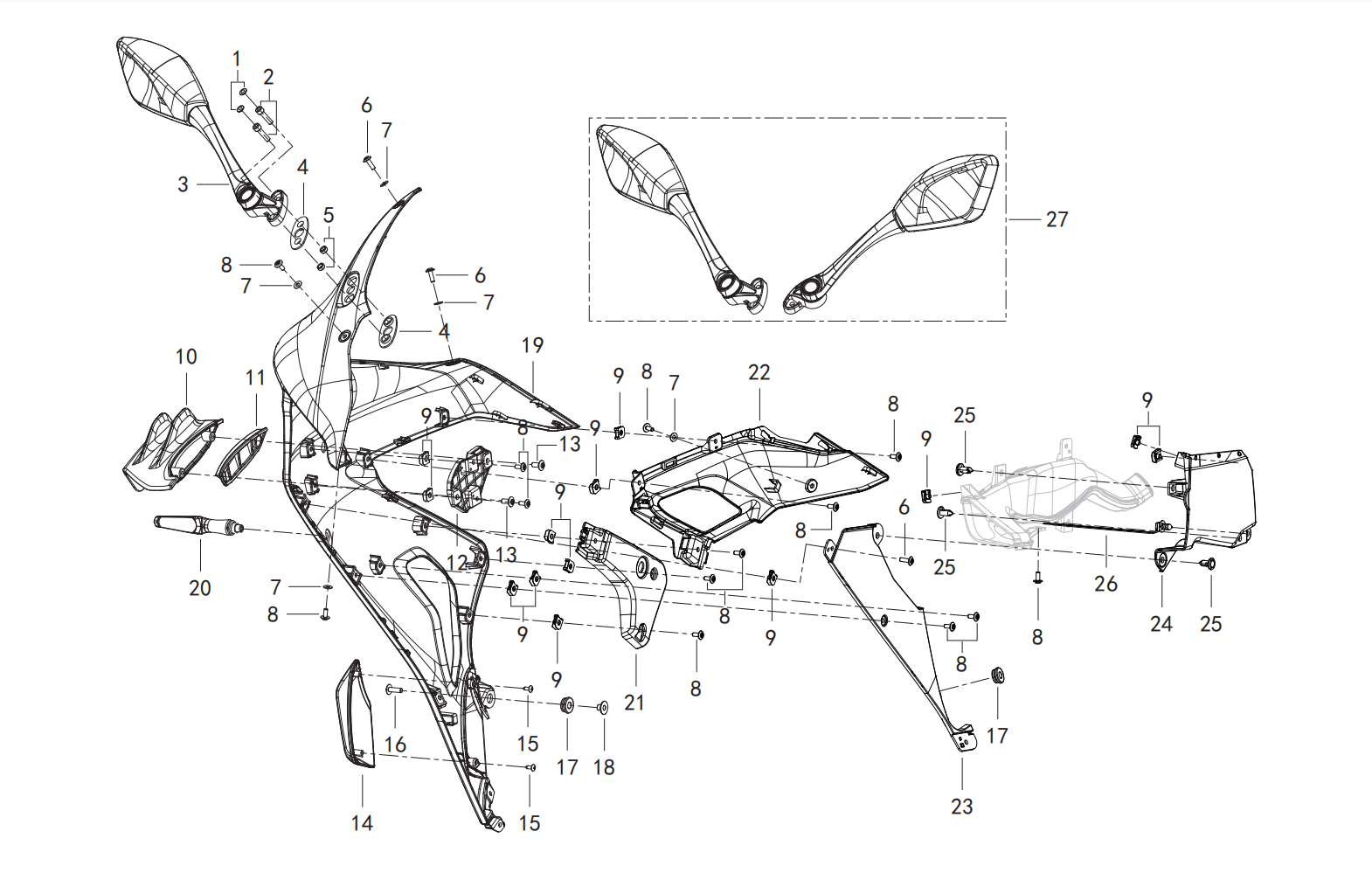

Location in exploded diagrams
Other parts on this diagram — 导流罩Ⅰ BRACKET ASSY.
- #1 40450N490000 — 左后视镜组件
- #2 40480N490000 — 右后视镜组件
- #3 B0226060206S — 内六角花形圆柱头螺钉M6×20
- #4 40011L340000 — 后视镜缓冲橡胶
- #5 40047B470100 — 衬套
- #6 65503PAK0000 — 挡风玻璃
- #8 65825PAK0000 — 垫圈Φ5
- #9 65570PAK0000 — 鼓形橡胶螺母M5
- #10 08001P620000 — 内六角花形法兰面螺钉M5×12
- #11 65624P160000 — 卡螺母M5
- #13 05501P410001 — 新钱江亚克力圆标牌
- #14 65681PAK0100 — 左定风翼
- #15 65804PAK0000 — 左定风翼安装橡胶
- #16 65671PAK0000 — 左定风翼内板
- #17 08002P620001 — 内六角花形法兰面螺钉M6×12
- #18 65672PAK0000 — 右定风翼内板
- #20 65805PAK0000 — 右定风翼安装橡胶
- #21 65682PAK0100 — 右定风翼
- #22 40440N490000 — 后视镜组件
- #12 65501PAK009Z — 导流罩左装饰板
- #12 65501PAK010Z — 导流罩左装饰板
- #12 65501PAK011Z — 导流罩左装饰板
- #12 65501PAK012Z — 导流罩左装饰板
- #12 65501PAK015Z — 导流罩左装饰板
