Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (2)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 42.82 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 39.59 | listing | cfmoto.quadzillaparts.co.uk |
Location in exploded diagrams

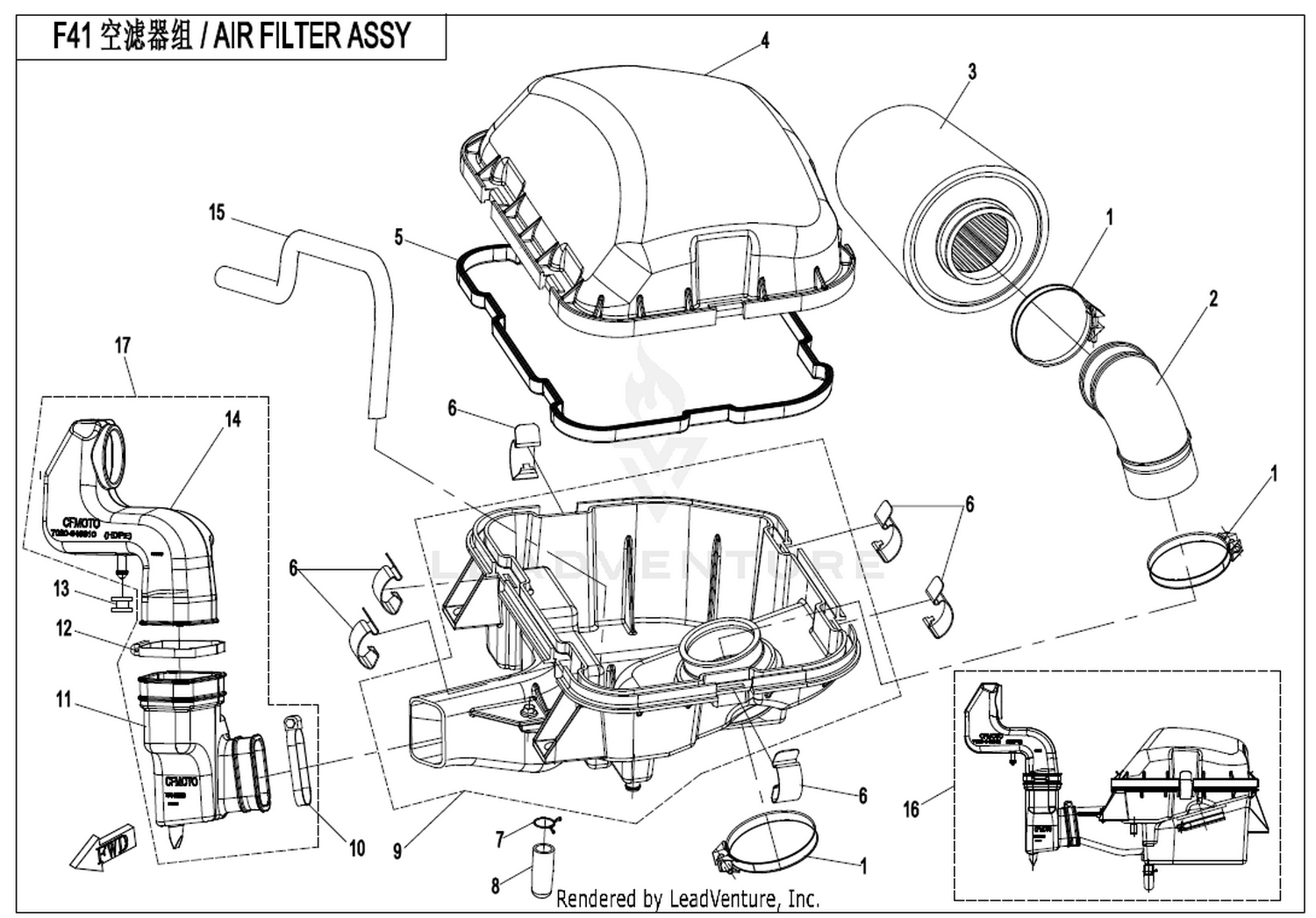

Other parts on this diagram — Air Filter Assy
- #03 0800-112000-20010 — Filter Element With Black Sponge,Manufacturer:hengbo
- #09 0800-111000 — Air Filter Housing Assy
- #15 0800-111007 — Rubber Hose
- #04 0800-110002 — Air Filter Cover
- #09 0800-111000-1000 — Air Filter Housing Assy
- #16 0800-110000-30002 — Air Filter Assy
- #05 0800-110004 — Air Filter Seal Ring
- #11 7020-040820 — Air Filter Inlet Pipe Rear Part
- #17 0800-113000-10000 — Air Inlet Pipe
- #06 0800-110007 — Clasp
- #12 9010-000105 — A-Type Screw Clamp 78-101
- #01 01A0-110003 — Clamp 67
- #17 30601-117010 — Clamp A17
- #11 5020-031001 — Rubber Sleeve, Front License Bracket
- #02 0800-110005 — Elbow Pipe
- #16 0180-110005 — Oil Storage Hose
- #14 7020-040810 — Air Filter Inlet Pipe Front Part
